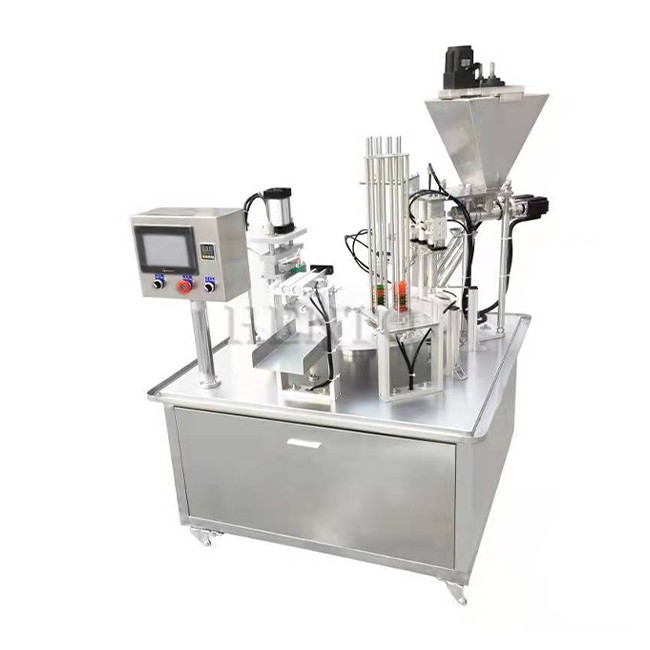

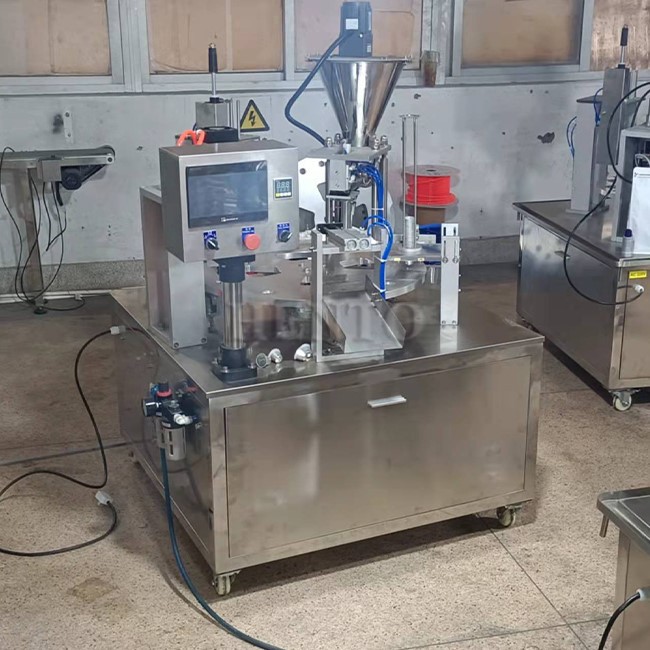

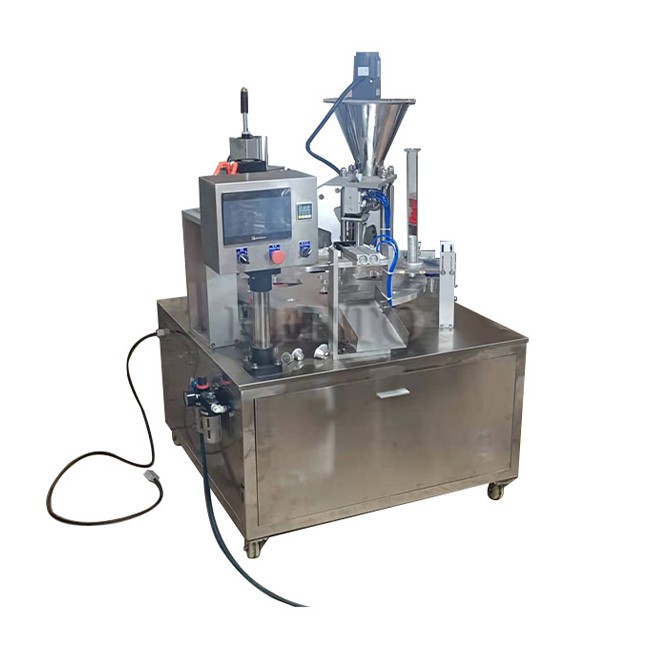

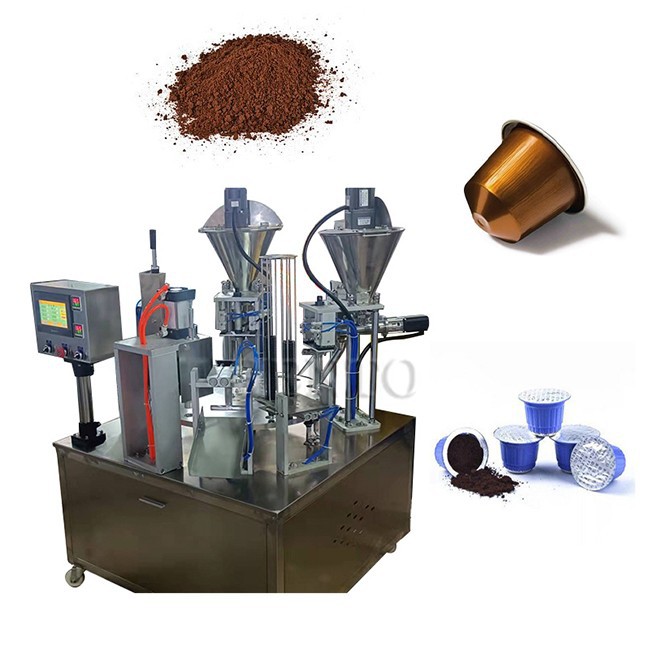

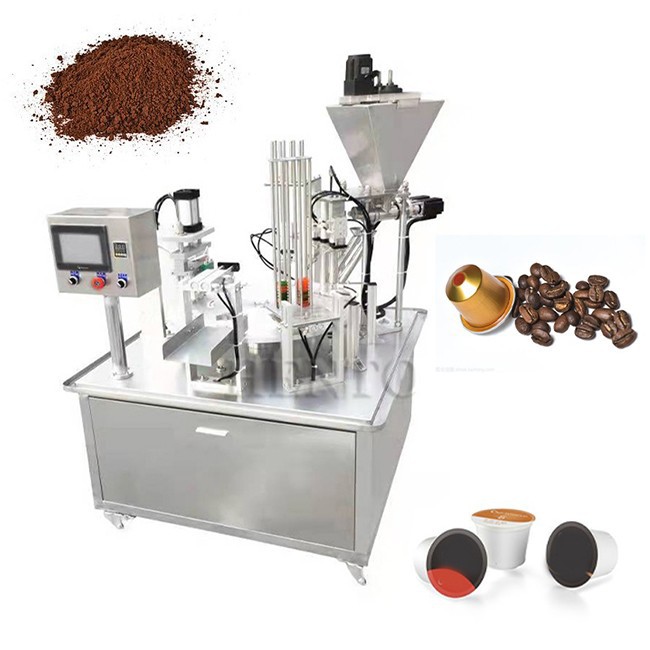

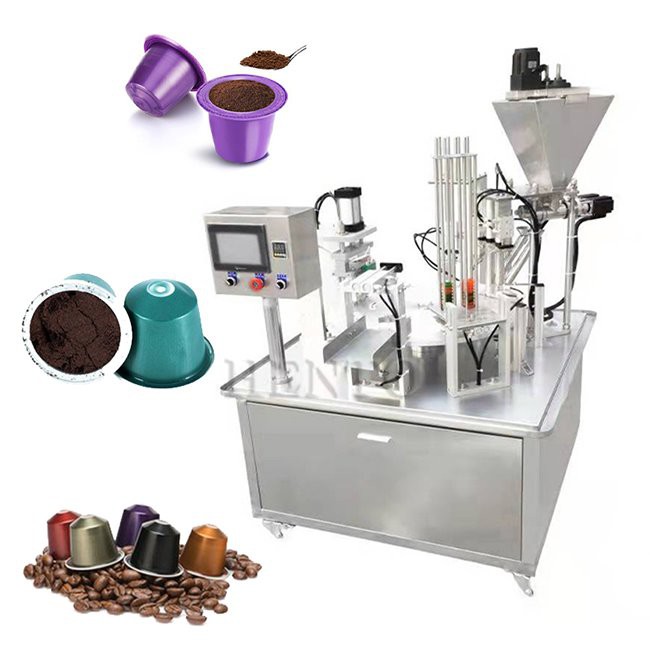

Coffee Capsule Sealing Machine
Machine working principle

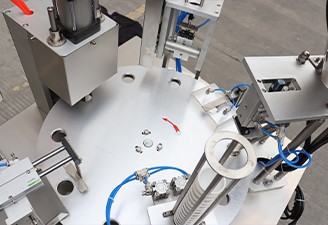

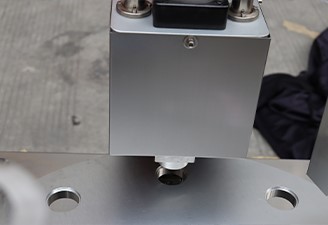

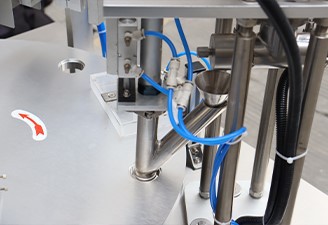

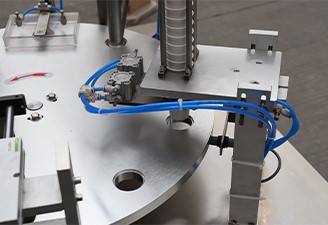

Coffee Capsule Sealing Machine is composed of main transmission, cup dropping, feeding, filling, metering, mechanical arm suction film, heat sealing, finished product transportation, and electrical control mechanisms. When the motor is running, it simultaneously drives the forward movement of the membrane plate, the up and down movement of the gasket head, and the operation of the water pump. It is achieved through connecting rod and chain transmission. The mechanical arm suction of the membrane is completed by two cylinders and a vacuum generator, respectively. The opening and closing time of the three solenoid valves are controlled through three proximity switches, and the action of the cylinders is controlled in close proximity.
This equipment can process powders, liquids, etc. for quantitative filling and sealing. Fast processing speed, economical and practical.

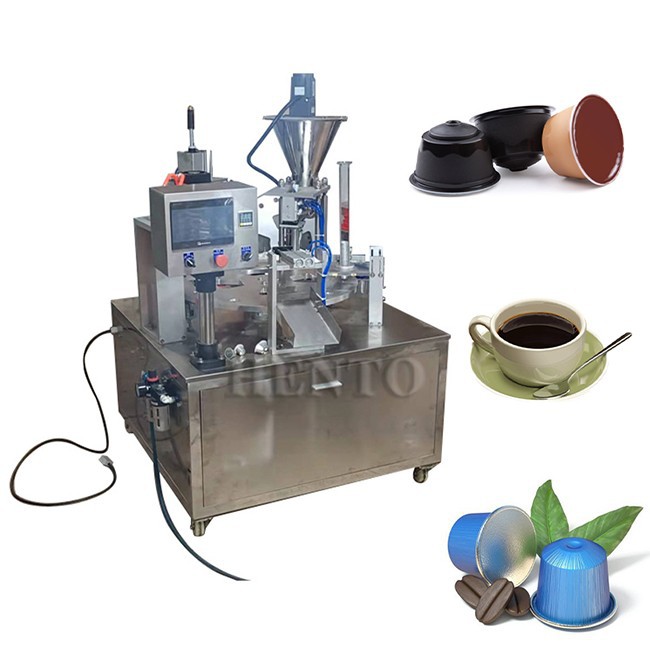

Coffee Capsule Sealing Machine can fill and seal different types of single cup coffee, such as K-Cup, Nestle, Lhasa, Upshot, etc.
product parameters
| Model |
HT-FM1 |
HT-FM2 |
| Voltage |
220v-50hz-1p |
220v-50hz-1p |
| Power |
2.5kw |
2.5kw |
| Capacity |
600-700pcs/h |
1200-1500pcs/h |
|
Filling head |
1pcs |
2pcs |
| Dimension |
1100*1100*1650mm |
1100*1100*1650mm |
| Weight | 300kg | 350kg |
Coffee Capsule Sealing Machine Features
Made of stainless steel, suitable for filling, filling, sealing, and edge cutting of various powder types and containers of different specifications. Different filling types can also be configured, such as self flow, filling, measuring cup, negative pressure, screw filling, etc., in order to be suitable for filling various products.
It can automatically complete functions such as automatic cup dropping (optional), filling and filling, date printing, UV sterilization, photoelectric tracking and positioning (optional), sealing (cover), automatic core cutting film, and waste film recycling for plastic (paper) cup boxes.
The whole machine adopts Omron programmable logic controller, Taiwan, China pneumatic control elements, intelligent digital display temperature control system, featuring high automation, high sealing strength, good sealing, low failure rate, reasonable structure and high production efficiency.
Devices such as photoelectric tracking detection sealing film and automatic cup dropping device are optional, and can also be customized according to your special requirements.
FAQ
Q: 1.What's the MOQ:
Q: 2. Can the machine be customized?
Q: 3.What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 12.What about After-sales service?
Online support ;
Field installation, commissioning and training;
