Spaghetti Cutting Machine
Product description

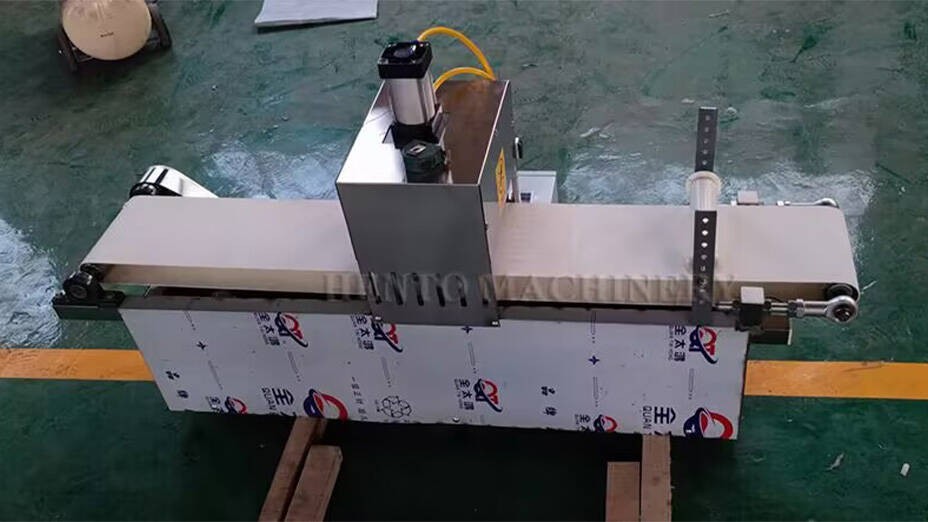

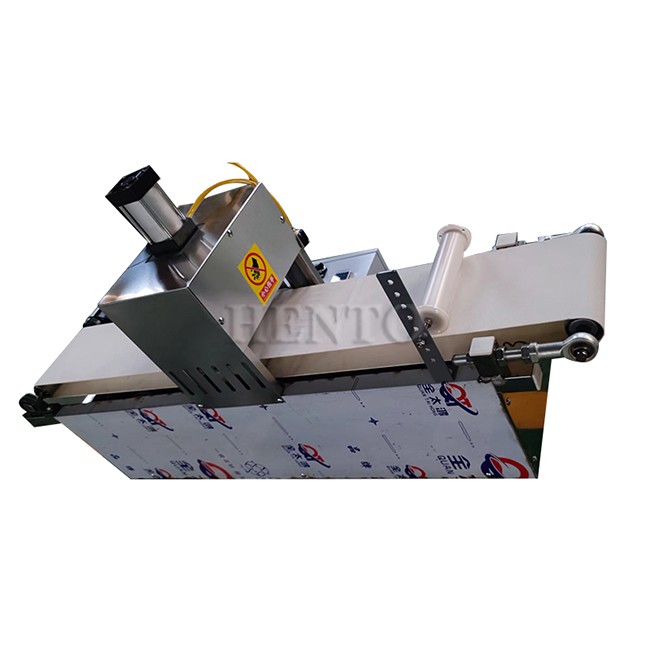

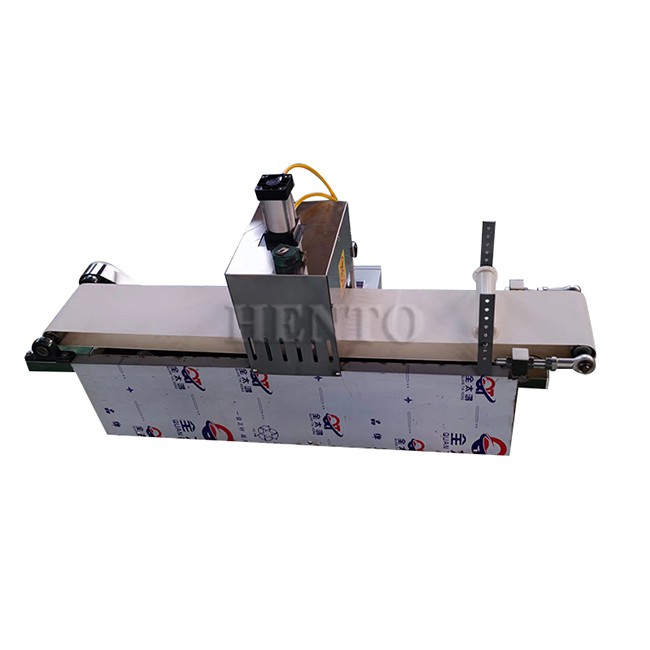

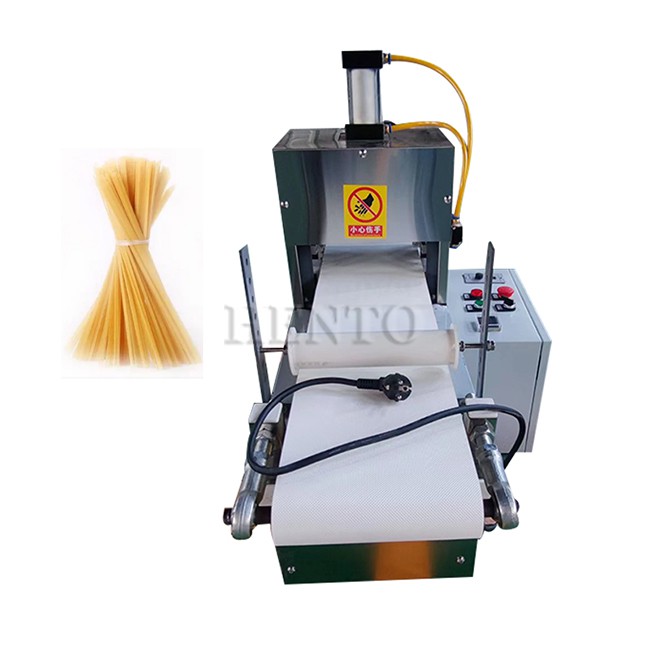

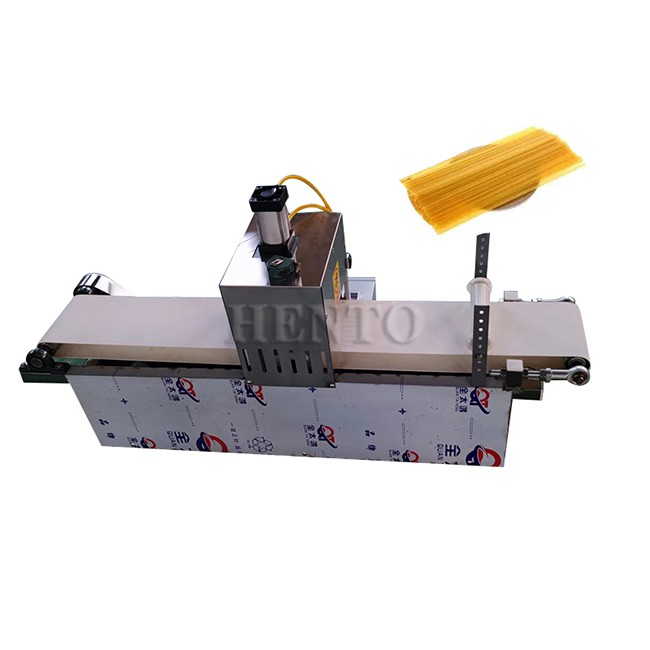

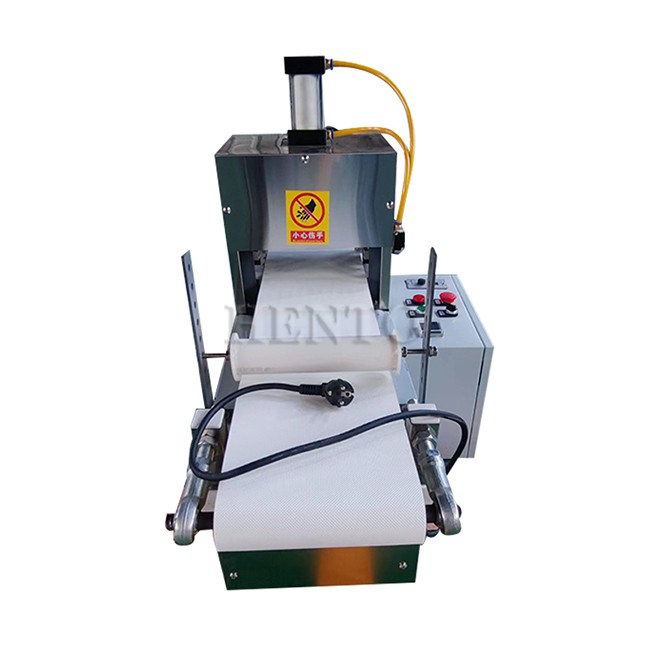

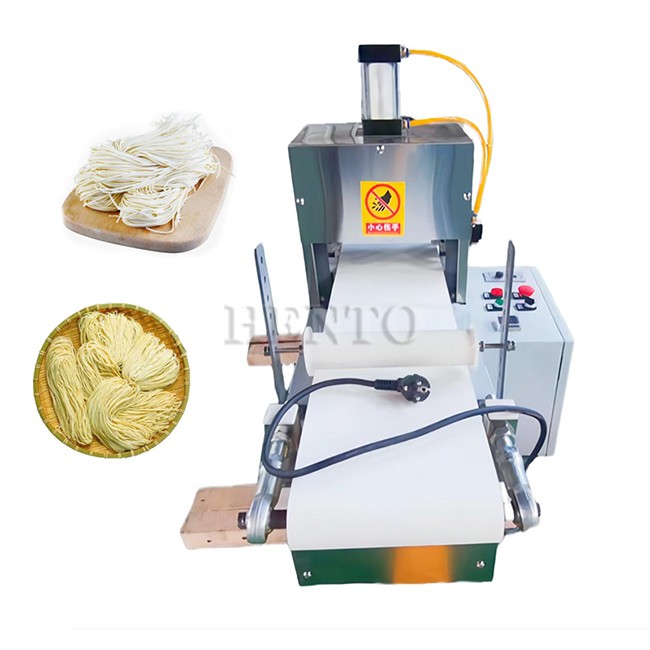

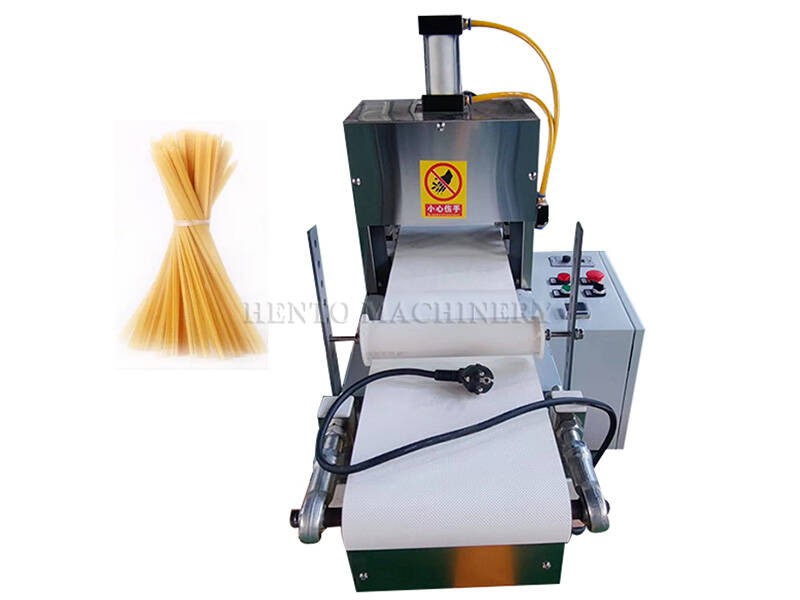

The structure of the noodle cutting machine is consists of frame, afeed hopper, cutting device, drive device, transmission device, control device, etc. During operation, first put noodles into the feed hopper, and then the noodles are pulled to the position of the cutting device by the drive device and the transmission part. The Spaghetti Cutting Machine will cut the noodles into noodle segments of lengths according the set length, and the cut noodle segments discharged through the discharge port. This machine is made of stainless steel, reasonable structure, simple maintenance.
01
Machine details
1.Stainless steel cutter: Spaghetti Cutting Machine made of stainless steel for food, not easy to rust in a humid environment
2.Bold and enlarged cylinder: The thrust of the thickened cylinder can reach 145 kg, and the cut is neat and more sensitive
3.Food-grade conveyor belt: High temperature resistant, oil resistant, cutting resistant, corrosion resistant, anti-stick and easy to clean

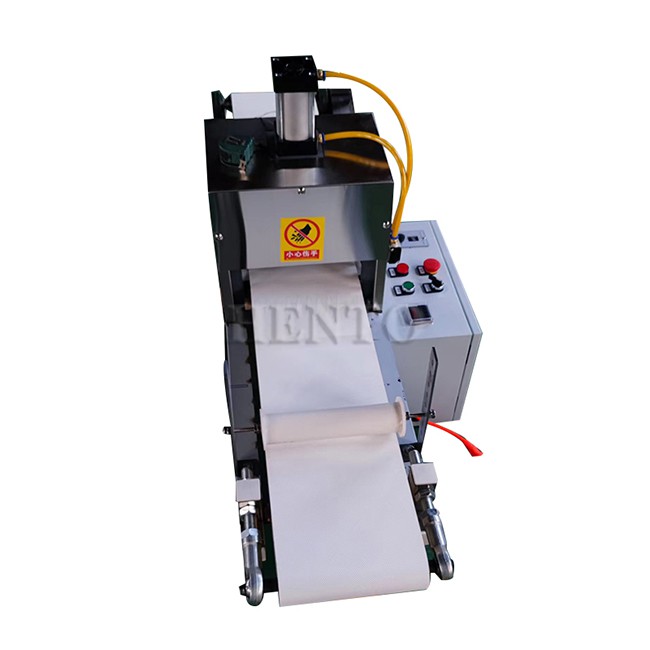

4.Operation of the electric control box: one-button start, equipped with emergency button manual/automatic, speed adjustment knob is clear at a glance, simple to operate.
Maintenance
1. Clean the conveyor belt of spaghetti cutting machine after each shift and wipe it with alcohol.
2. If the conveyor belt deviates, adjust the bearing shells at both ends.
3. The electric control box should be clean and dry, and the space should be moisture-proof. It is recommended to clean it with a hair dryer once a month.
4. The cutter of spaghetti cutting machine can be fine-tuned up and down. The fine-tuning position is located at the cylinder and fixed to the plate connection. Each turn of the nut can be adjusted by 1.25 mm.
comparison of product parameters
|
Model |
HT-QD100 |
HT-QD200 |
|
Capacity |
200-300kg/h |
400-500kg/h |
|
Voltage |
220v |
220v |
|
Power |
160w |
1500w |
|
Dimension |
2000*500*700mm |
2050*780*1240mm |
Installation and use
Fix the conveyor belt to the rack with the fixing bolts located on the lower side of the conveyor belt. The electric control box is fixed in a suitable position. This machine uses a frequency converter to adjust the speed of the conveyor belt. Rotate the knob on the electric control box to control the frequency converter to adjust the conveyor belt speed, thereby achieving infinite speed change. The number in the display box is the current in Hertz. The recommended range is 5-50. The time relay on the left side of the electric control box is used to control the cylinder to drive the cutter to achieve the speed of cutting, thereby achieving the length of the cut section. The three digits on the left side of the time relay represent the interval time of cutting and the interval time between the first and second knives. The two digits on the left can be used to represent any number between 0 and 99. The three digits on the left are time units, and the three digits on the right control the cylinder descent time. The recommended range of this machine is 0.1-0.4 seconds. Other buttons are noted and will not be explained specifically.
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
