Pet Feed Puffing Machine
video

Pet Feed Puffing Machine

Advantages of Pet Feed Puffing Machine:
The Pet Feed Puffing Machine has several advantages that have made it the most suited product for pet feed puffing. Some of the benefits of the pet feed puffing machine include:
1. The ability to produce various pet food shapes and sizes.
2. Improved nutritional value of pet food.
Send Inquiry
Product Introduction

Product Introduction



The features of pet feed puffing machine :the advanced granular structure is cut off in the form of a knife shaft positioning spring to achieve a stepless transmission, which can be arbitrarily cut into the required length product. The design is novel, the structure is simple, easy to disassemble and remove, and easy to operate. The screw and screw are made of special wear -resistant high -temperature and high -humidity materials. 38 chromium molybdenum aluminum. It first adjusts the quality and then treated with heat. It has the advantages of long wear resistance and long life. The inner supercharged punching device is set to ensure the yield and quality of the feed; the electric heating device improves the feed puffing rate. The main shaft bearing combination uses Japanese seizure and Swedish SKF bearing to ensure the puffer and reliability. The main motor uses the Y series three -phase motor to ensure strong power; the reducer cooperates with the main motor to ensure abundant motivation.



Floating particles of production can float on the surface of the water and keep it for at least 12 hours. It will not be scattered. Pollution water quality. Materials kill harmful bacteria such as E. coli and Salmonella and effectively ensure the hygiene of the feed, which is conducive to protein degeneration absorption and starch paste, and it is easy to absorb fish and livestock. Generally, 8%-15%of the feed feed for puffed fish feed is used. The production of cooked sinking aquatic products and poultry granular feed can eliminate most of the materials contained in the materials and anti -enthusiasts and urine enzymes of anti -nutritional factors, which is conducive to the digestion and absorption of animals and improve the digestive utilization rate of nutrients.



Technical Parameter



Model

HT-DGP40

HT-DGP50

HT-DGP60

HT-DGP70

HT-DGP80

HT-DGP80

HT-DGP90

HT-DGP90

HT-DGP120

HT-DGP135

HT-DGP160

HT-DGP200

Voltage

380V

380V

380v

380v

380v

380v

380v

380v

380v

380v

380v

380v

Capacity

30-40kg/h

60-80kg/h

100-150kg/h

180-200kg/h

200-300kg/h

200-300kg/h

300-400kg/h

300-400kg/h

500-600kg/h

700-800kg/h

1000-1200kg/h

1800-2000kg/h

The power of the machine

5.5kw

11kw

15kw

18.5kw

22kw

22kw

37kw

37kw

55kw

75kw

90kw

132kw

Supply power

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

Spiral diameter

Φ40mm

Φ50

φ60

φ70

Φ80

Φ80

Φ90

Φ90

Φ120

Φ135

Φ160

Φ200

Cutting power

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

0.4kw

Dimension

1400*1030*730

1470*1100*1250

1470*1120*1250

1650*1400*1300

1800*1450*1300

1800*1450*1300

2100*1450*1350

2100*1450*1350

2400*1950*1600

2550*2050*1650

3100*2650*1800

3100*2850*1900

Weight

240kg

320kg

350kg

580kg

695kg

695kg

950kg

950kg

1700kg

1900kg

3200kg

3800kg

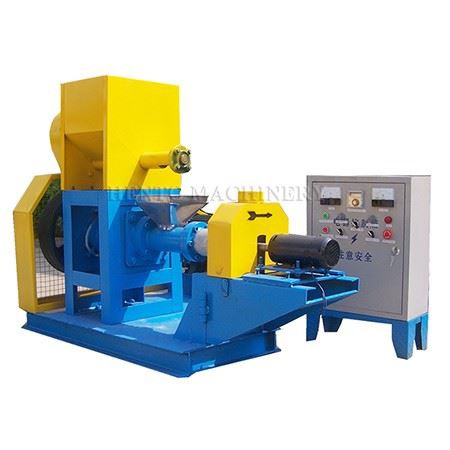

Product Pictures



cat feed machine
cat feed making machine001

Pet Feed Pellet Extruder
