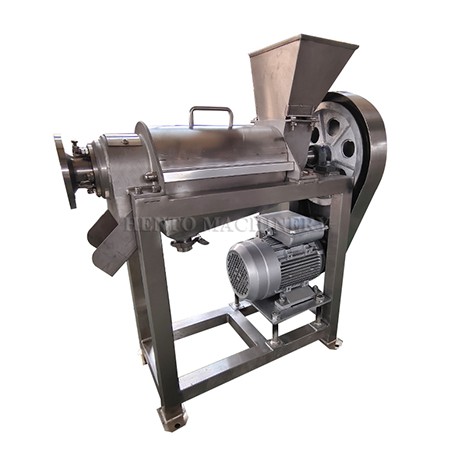

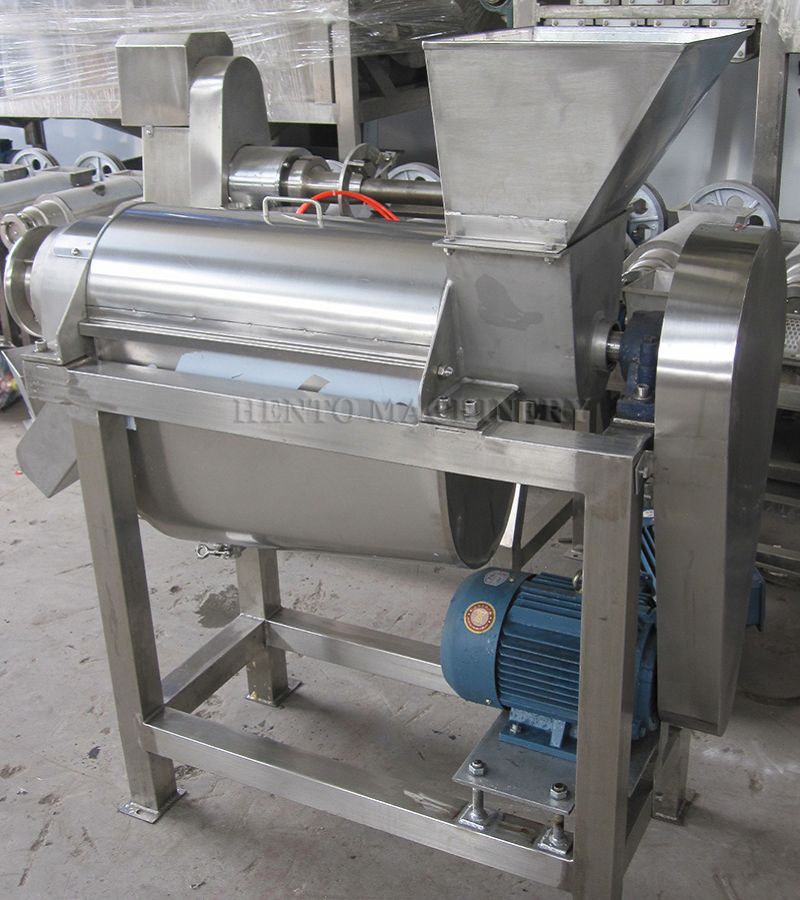

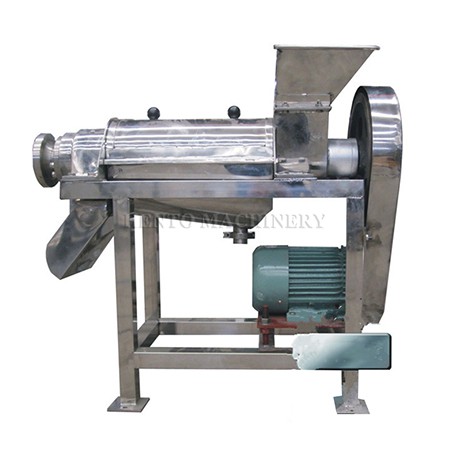

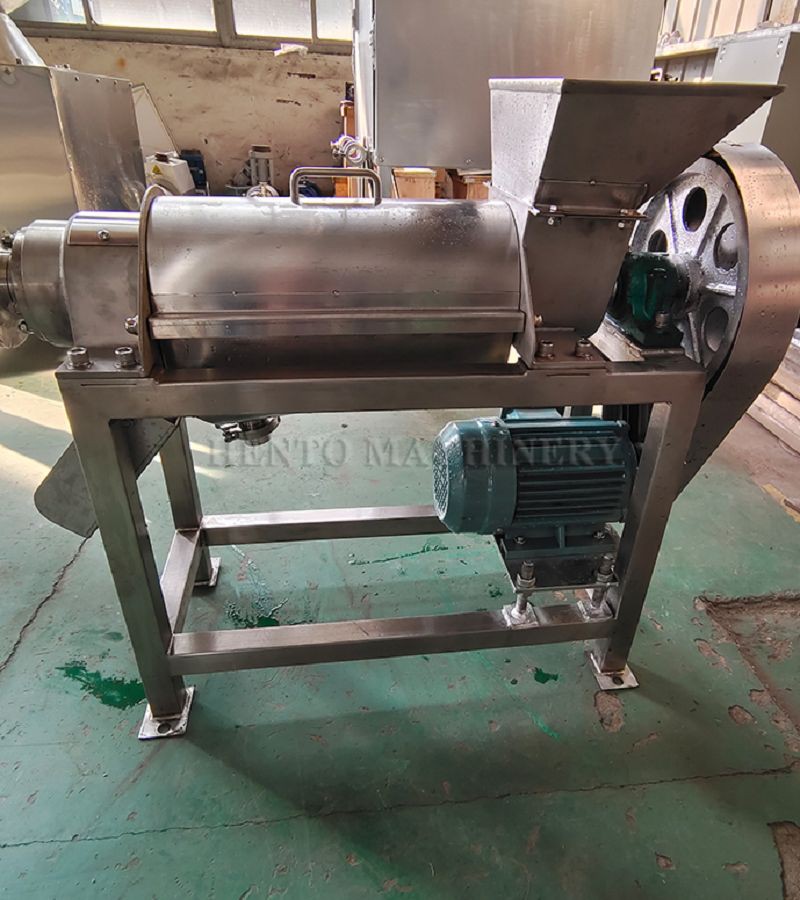

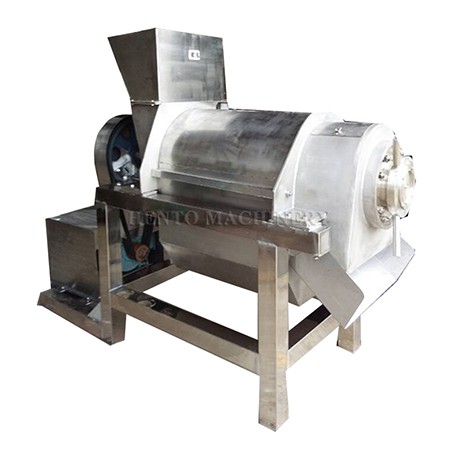

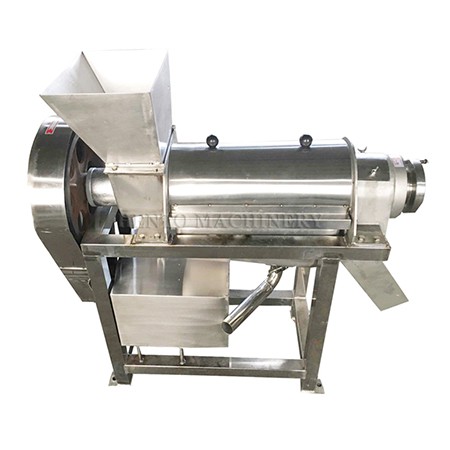

Screw Juice Machine



Screw Juice Machine is mainly used to extract fruit and vegetable juices. The main components of the juicer extractor machine is spiral, which increases gradually along the material residue outlet direction while the screw pitch reduces gradually. When the materials are pushed in by the spiral, due to the volume contraction of the spiral cavity, the materials are extracted.



Screw juice machines are highly efficient in extracting juice from fruits and vegetables, rendering highly concentrated, nutrient-rich juice. These machines feature a unique design, which undergoes a thorough extraction process to get the juice you desire from your favorite fruits and vegetables.





(1)Slag tap hole: exquisite workmanship, elegant appearance and even grinding make slag tapping smoother.

(2)Feed inlet: The food grade 304 stainless steel feed inlet adopts a four-sided crimping process, which is round and beautiful, and the feed is fast and safe.

(3)Spiral: Total eclipse grade material spiral, fine workmanship, special butterfly

screw provides great convenience for disassembly and cleaning.





Screw juice machines offer several benefits that make them stand out over traditional juice extractors.

1. Retain maximum nutrients: Screw juice machines retain maximum nutrients and enzymes, which provide a better taste, flavor, and nutritional value.

2. High juice quality: Screw juice machines extract high-quality juice, which is often pure and free of sediment.

3. Saves time and energy: Screw juice machines save time and energy with their high-pulp ejection capacity and automatic cleaning system.

4. Cost-effective: Screw juice machines are cost-effective in the long run as they extract more juice from fruits and vegetables than other extractors, providing value for money.

5. Easy to operate: Screw juice machines come with simple operational procedures that do not require any specialized skills or knowledge.





Screw juice machines operate on a straightforward principle. The design features a rotating auger that crushes the fruits and vegetables and pushes them against a mesh-lined screen, which separates the juice from the pulp. Once the juice is separated, it passes from the screen and flows into a collection cup or container. The pulp, on the other hand, is conveyed out of the machine through a separate outlet.

The design of a screw juice machine enables it to extract maximum juice and minimize the waste from the produce. The slow rotational speed of the auger also ensures that there is no heat buildup in the machine, which may damage the nutritional values of the extracted juice.





Hawthorn, cherry, pomegranate, lychee, green fruit, papaya, ginkgo, rambutan, durian, kumquat, peach, plum, mango, satsuma, red orange, Nanfeng honey orange, betel nut, watermelon, melon, pear, citrus, banana, mulberry, persimmon, dragon fruit, carambola, mango, strawberry, loquat, virgin fruit, kiwifruit, melon, grapefruit, grape, apple, apricot, pineapple, longan, sugarcane, black plum, passion fruit Lemon, pomegranate, etc





Model	HT-LZ0.5	HT-LZ1	HT-LZ1.5	HT-LZ2.5	HT-LZ5
capacity	0.5 T/H	1T/H	1.5 T/H	2.5 T/H	5 T/H
Spiral diameter	φ88mm	φ125	φ175	φ250mm	φ400mm
Stainer aperture	φ0.6mm	φ0.6mm	φ0.5mm	φ0.6mm	φ0.6mm
Motor power	1.5 KW	2.2KW	4KW	15KW	30KW
weight	85KG	114KG	240KG	440KG	1300KG
Dimension	780×320×860mm	880×330×900mm	1300×700×1300mm	1540×700×1300mm	2530×944×1870mm
