Sausage Processing Line

Of features Sausage Processing Line:
1. compact construction, SUS304
2. high speed twisting device & quantitative filling ( with constant weight & exact length)
3. filling speed of Sausage Processing Line: stepless speed adjustment
4. twisting speed of Sausage Processing Line: stepless speed adjustment
5.all types of sausage casing
Send Inquiry
Product Introduction

Sausage Processing Line


Process Flow Of Sausage Processing Line

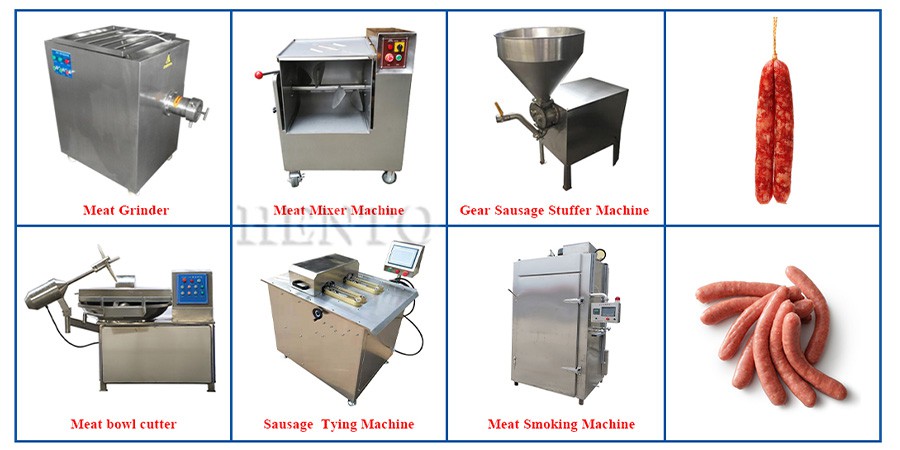

The Sausage Processing Line includes these machines:

Meat Grinder, Meat chopping machine ,Meat Mixer,Sausage Filling and Tying Machine,Meat Smoking Machine and Vacuum Packaging Machine,etc. we can also equip machinery according to your requirements.



product parameters

Machine name

Meat grinder

Meat chopping machine

Meat Mixer

Model

HT-JRJ100

HT-ZB20

HT-KJ50

Votlage

220V, 50hz

220V, 50hz

220V, 50hz

Power

5.5kw

2.75kw

1.5kw

Capacity

300-500KG/h

20L

50L

Machine size

950*550*900mm

780*600*850mm

720*580*1000mm



Machine name

Sausage Filling and Tying Machine

Meat Smoking Machine

Vacuum Packaging Machine

Model

HT-DQ1

HT-YX30

HT-400/2s

Voltage

220V, 50hz

220V, 50hz

220V, 50hz

Power

1.5kw

15.75kw

1kw

Capacity

58L/100-500kg/H

30-50kg/batch

60-160 times/h

Machine size

530*410*1350mm

1300*1050*1650mm

1050*650*855mm



Function of Sausage Processing Line





sausage production line(001)

01.

The meat grinder can directly mince the unthawed meat to reduce the loss of nutrients and protein of the meat, it could produce different sizes of minced meat by changing the hole knife. It pushes the meat in the hopper to the pre-cut orifice through the rotating screw.The meat is ground by shearing, and the meat is continuously discharged out under the action of the screw extrusion force.

02.

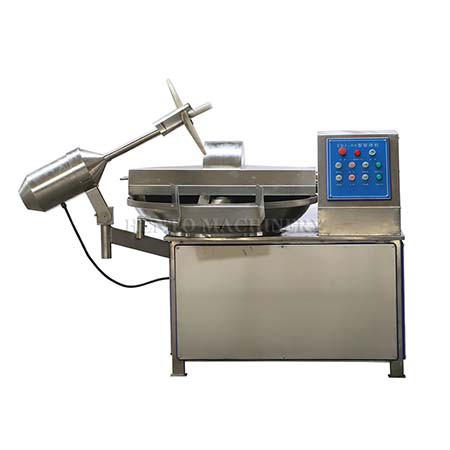

The chopping machine uses the chopping effect of high-speed rotation to chop the main raw materials such as meat, minced meat, fat, etc.Cut the materials into meat paste, and at the same time,also could cut it with other raw materials such as water and ice flakes etc together. The emulsification effect of meat products is greatly improved.

03.

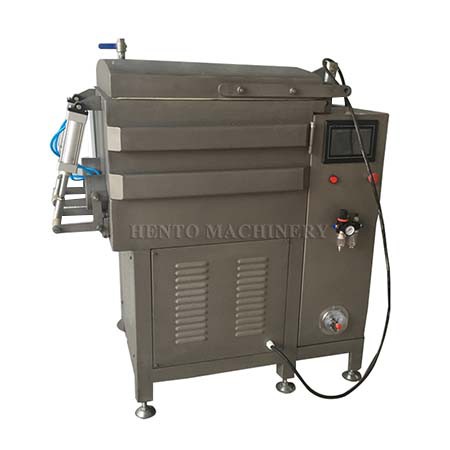

The meat mixer adopts double auger mixer,Make sure the meat stuffing is evenly stirred , and the seasoning juice added can be fully absorbed. The mixer machine has low noise, high working efficiency, compact structure, flexible and simple operation advantage.

04.

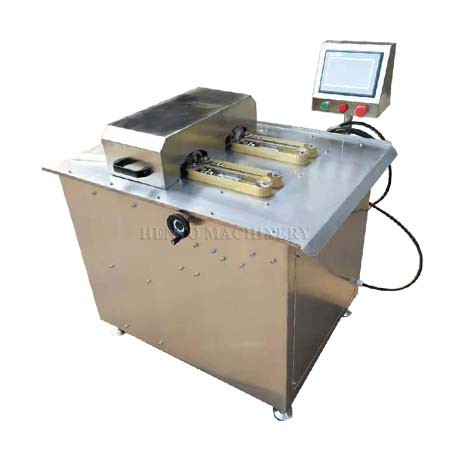

Sausage filling and tying machine can continuously fill and twist sausage, it is suitable for natural casings, collagen, and smoked casings.The machine is made of SUS304 high-quality food-grade stainless steel, it is reliable and durable.

05.

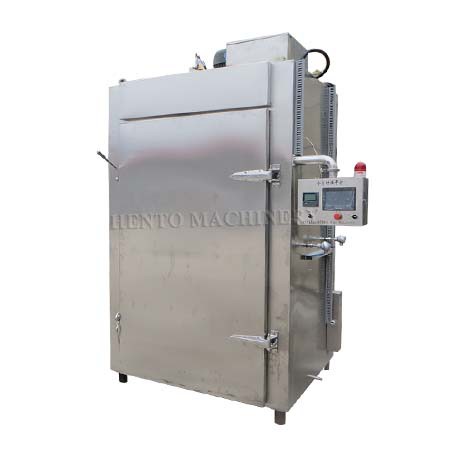

Meat smoking machine is a kitchen appliance that is used to smoke meat, fish, and other foods. It is made up of a smoking chamber, a heating element, and a smoke generator. The appliance works by heating wood chips to produce smoke that is used to flavor the food.

06.

Vacuum packaging machine is used to pack food items in a vacuum-sealed plastic pouch or bag. It is made up of a vacuum chamber, a heating element, and a sealing bar. The appliance works by removing the air from the pouch or bag and sealing it with a heat seal.



FAQ

Q: 1.What's the MOQ:

A: 1 set

Q: 2. Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3.What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service:

A: Support voltage changing service as your demand;
 Support logo customizing ;
 Provide good solution for your project ;
 Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A:  Video technical support;
 Online support ;
 Field installation, commissioning and training;
