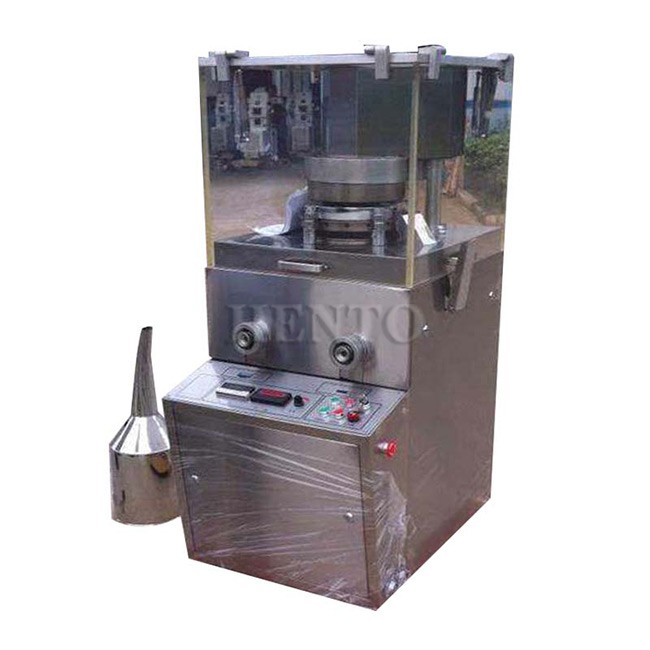

Rotary Tablet Press Machine Automatic
2. It is suitable for the production and pressing of various round tablets, sugar tablets, calcium tablets, etc. in large or small batches of multiple varieties.
3. It is not suitable for pressing semi-solid, damp powders.
Machine Introduction

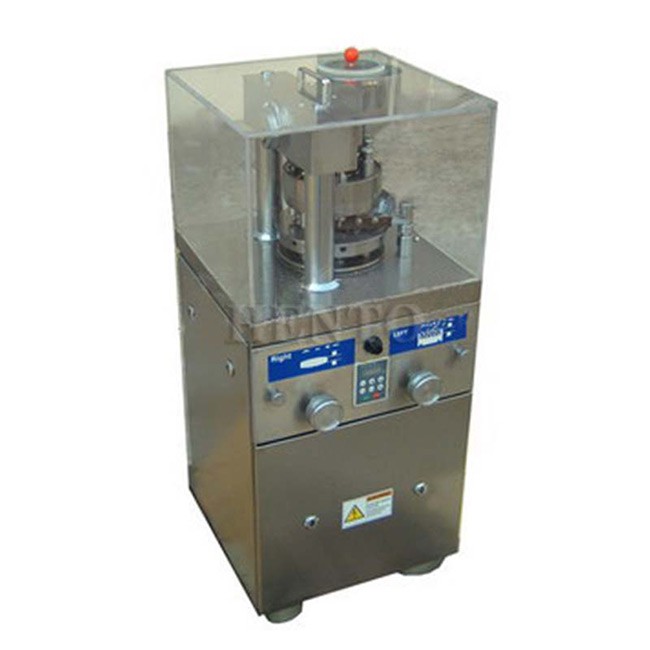

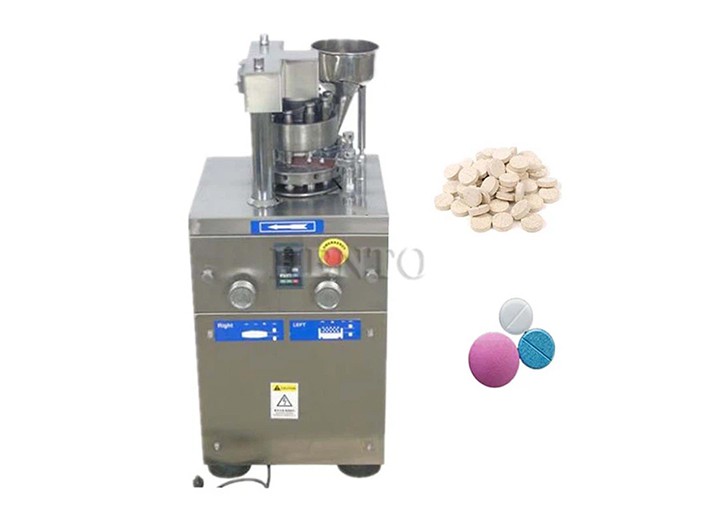

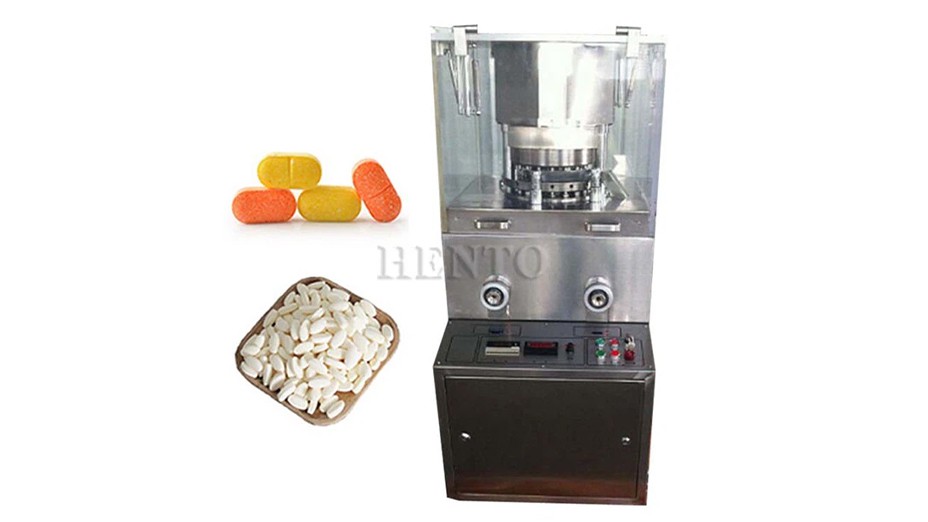

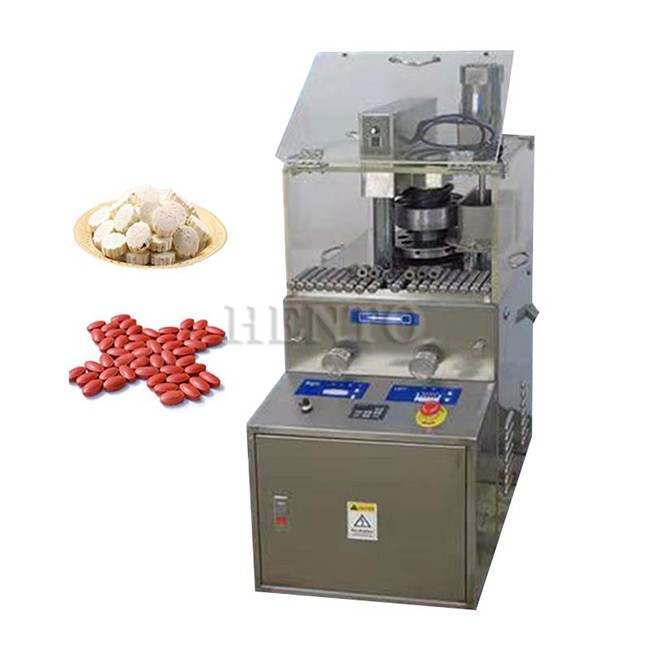

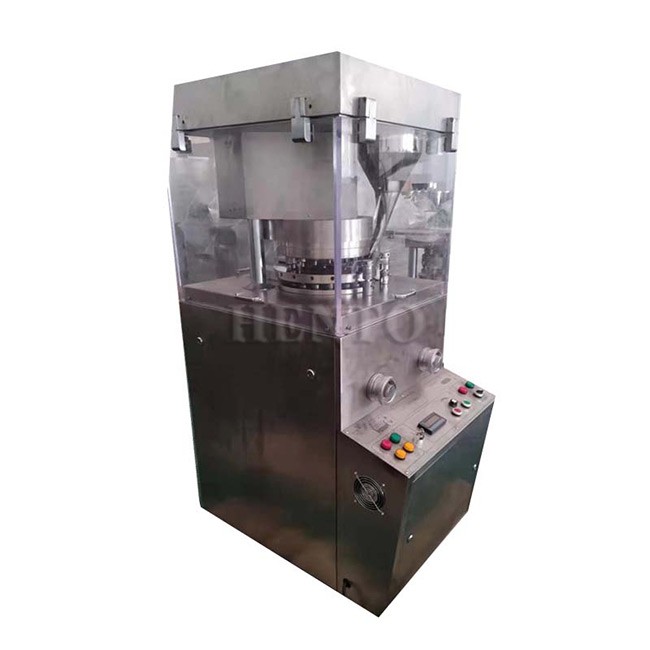

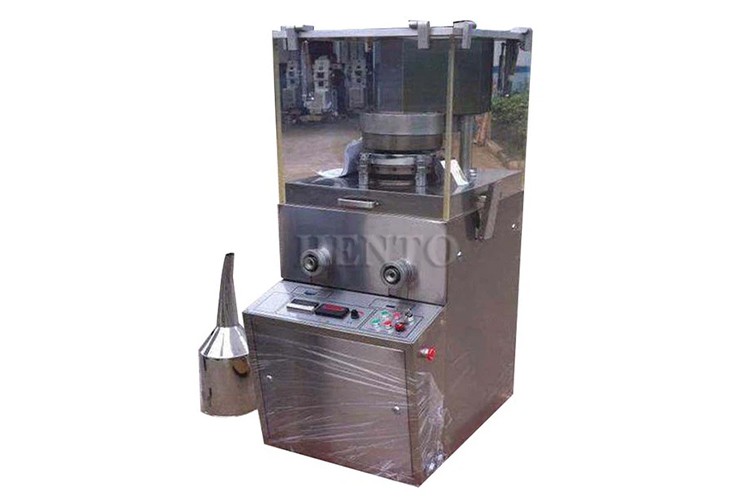

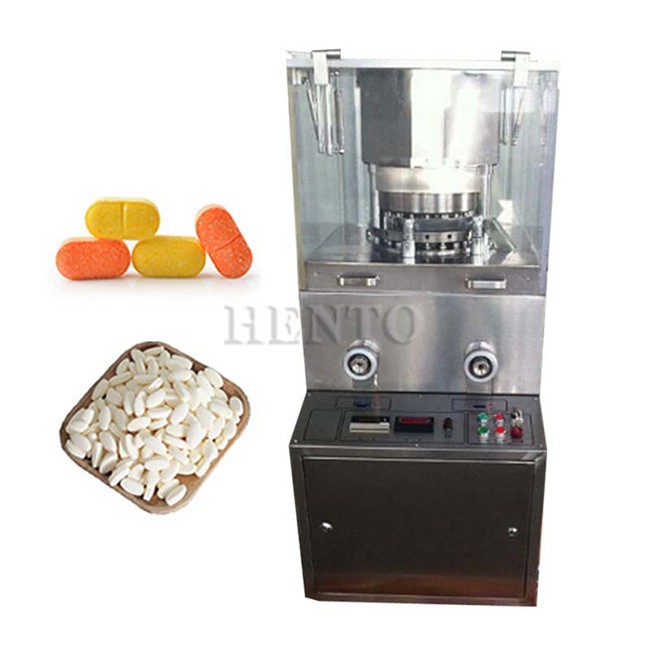

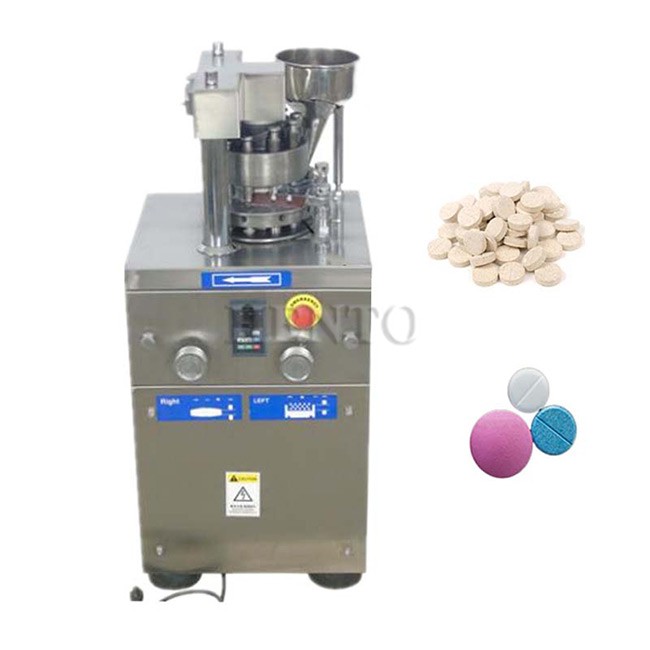

The Rotary Tablet Press Machine Automatic is a basic equipment suitable for mass production, used to press various granular raw materials into circular and irregular pieces. Its structure is double pressure, with two sets of feeding devices and two sets of wheels. 33 sets of stamping dies can be installed on the turntable, and 66 pieces can be pressed by rotating it once. The speed of the turntable, the filling depth of the material, and the thickness of the tablet can be adjusted during compression. The mechanical buffering device on board can prevent damage to the components caused by overload.
Machine advantages
(1) High production efficiency: The Rotary Tablet Press Machine Automatic can use multiple punches simultaneously for tablet pressing, resulting in higher production efficiency than single punch and flat tablet presses.
(2) Flexible operation: The thickness, hardness, and shape of the drug tablets can be adjusted flexibly according to needs, making them suitable for different production needs.
(3) High quality tablet pressing: The tablet pressing process can be completed in a relatively short time, thereby reducing adverse reactions such as oxidation and deliquescence of drug powder or particles, ensuring the stability and consistency of tablet pressing quality
Working principle and structural characteristics
1. Local transmission: electric motor (variable frequency stepless speed regulation) → belt pulley transmission → worm gear transmission → spindle driven turntable rotation.
2.The production process of Rotary Tablet Press Machine Automatic includes feeding, filling, pressing, and discharging, which are carried out continuously through four programs.
3.When the machine is working, the turntable drives 17 sets of stamping dies to rotate clockwise, and the upper and lower stamping dies move up and down along the curved trajectory, completing the pressure action through the pressure wheel.
4. The upper and lower pressing wheel device adopts rolling friction, which is conducive to reducing working resistance and minimizing power loss.
5.The safety unloading device of the pressure wheel is balanced by the spring on the low-pressure wheel axle, and its working pressure is adjusted by the spring sleeve. When overpressure occurs, it will automatically unload, which is beneficial for pressure stability, reducing impact and vibration, and also serves to protect the plunger.
6.The adjustment and control mechanisms for filling, sheet thickness, speed, and other parts are centralized and easy to operate.
Technical Parameter
|
Model |
HT-YPJ17D |
HT-YPJ19D |
|
Capacity |
40000 pc/h |
50000 pc/h |
|
Power |
2.2kw |
2.2kw |
|
Voltage |
380v |
380v |
|
Dimension |
900*630*1500 mm |
900*630*1500 mm |
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: What about the package?
A: Usually we will use the standard export wooden case.
