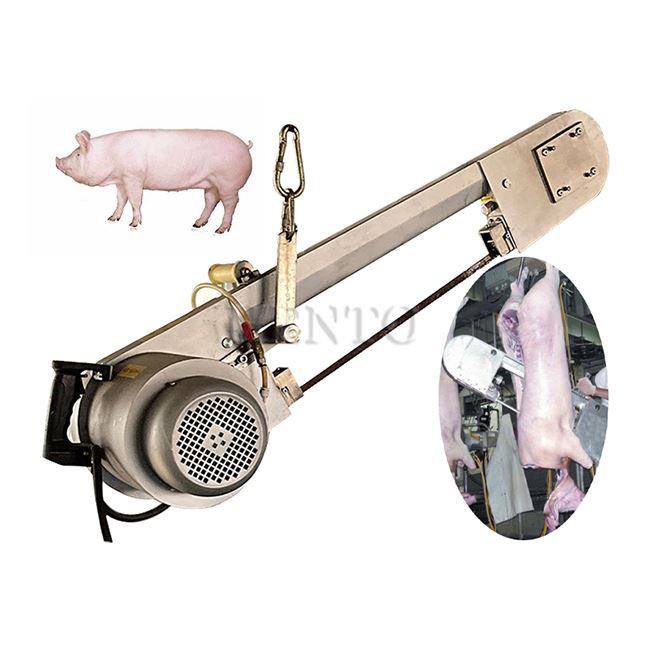

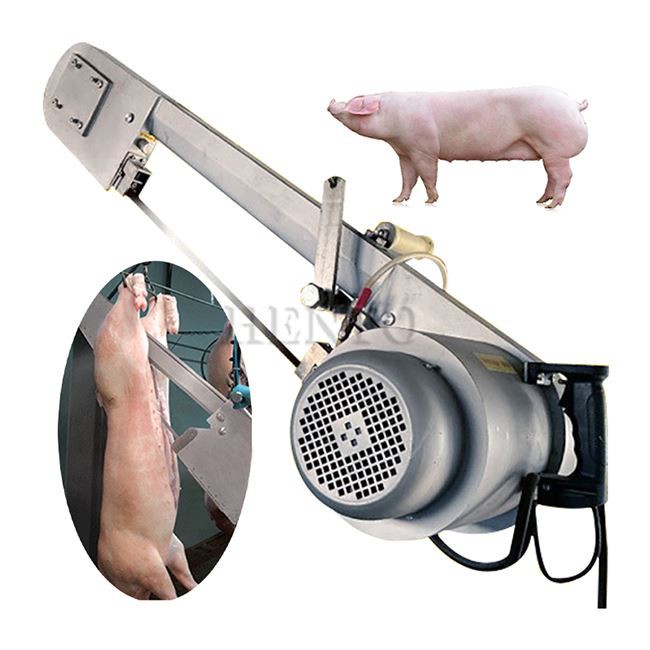

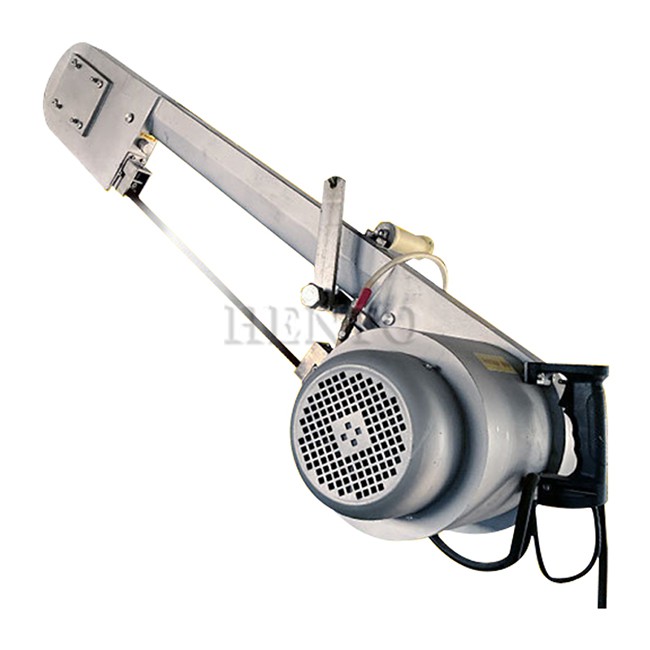

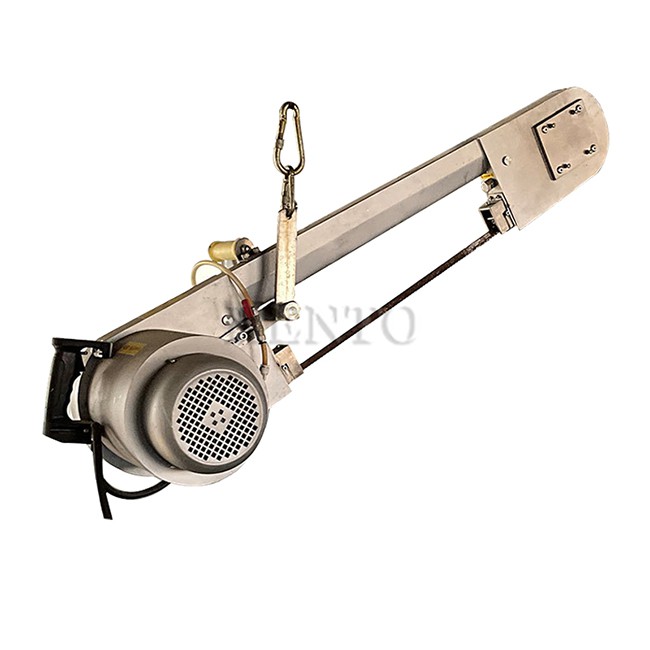

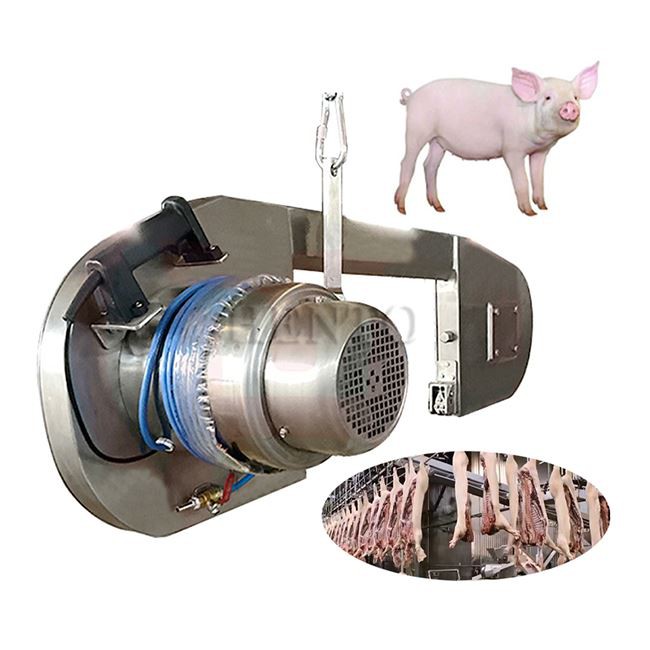

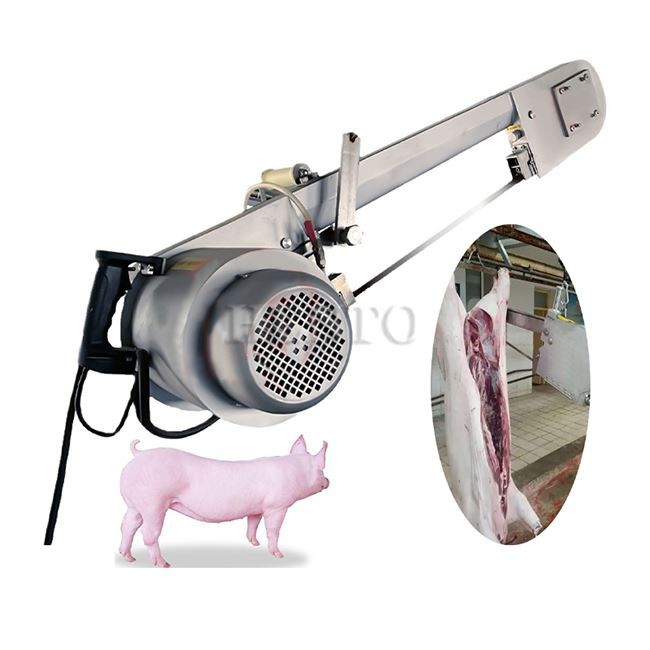

Pig Splitting Saw
2.low noise, hygienic and other characteristics
3.suitable for large and medium-sized meat processing enterprises.
The working principle of the pig splitting saw
The Pig splitting saw is driven by an eccentric wheel through the rotation of the motor to drive the connecting rod, and the saw blade is driven to reciprocate through the slideway and the slider, so as to achieve the purpose of splitting.
Generally, it only takes 5 to 10 seconds to chop a cow, sheep and pig.
Features of the pig splitting saw
A pig splitting saw is a specialized tool used to cut through the bones of a pig carcass during the butchering process. This type of saw is commonly used by professional butchers and meat processors to divide a pig into smaller cuts of meat for consumption.
Pig splitting saws are typically larger and more heavy-duty than standard meat saws, and are capable of cutting through the dense bone structure of a pig. The saw typically features a long, straight blade with large, sharp teeth, and may be operated manually or with the assistance of an electric motor. Proper use of a pig splitting saw requires skill and precision, and is an important part of the art of butchering.
Contact now
Reciprocating half saw, half saw characteristics
1
With simple and flexible operation, high production efficiency, stable operation, easy maintenance, etc. In the mechanized slaughter plant flowing production line, reciprocating type splitting according to the equipment greatly improve the production efficiency and improve the labor intensity of workers.
2
Halving is the process of splitting a pig carcass into two halves for transportation, storage and marketing. At present, there are three kinds of halving equipment used in China: reciprocating halving saws, bridge halving saws and band halving saws.
3
The reciprocating saws are cheap and mainly used by small slaughter and processing enterprises, together with the balancer. The saw is mainly composed of eccentric block, connecting rod, cross head, saw bow, saw blade and so on. When working, the electric motor drives the eccentric block, through the connecting rod, crosshead to promote the saw blade for rapid reciprocating motion, and under manual operation to make the chainsaw move from top to bottom, so as to achieve the purpose of splitting half.
4
Half saw using wire rope suspended in the beam, because the chainsaw operation needs to move up and down, so in the beam installed two pulleys in the other end of the wire rope, configured with half saw compatible balance hammer or balancer, in order to split the half saw after half restored to its original position to reduce the weight of the split saw when moving.
comparison of product parameters
|
Model |
HT-PBJ2680 |
HT-PBJ2880 |
HT-PBJ2980 |
HT-PBJ3180 |
|
Capacity |
150pcs/h |
|||
|
Voltage |
380v 50Hz 3 Phase |
|||
|
Power |
1.5kw |
|||
|
Dimension |
1240*360*290mm |
1340*380*380mm |
1340*380*380mm |
1420*380*380mm |
|
Saw blade size |
0.56mm*19mm*2680mm |
0.56mm*19mm*2880mm |
0.56mm*19mm*2980mm |
0.56mm*19mm*3180mm |
|
Weight |
60kg |
65kg |
70kg |
88kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
