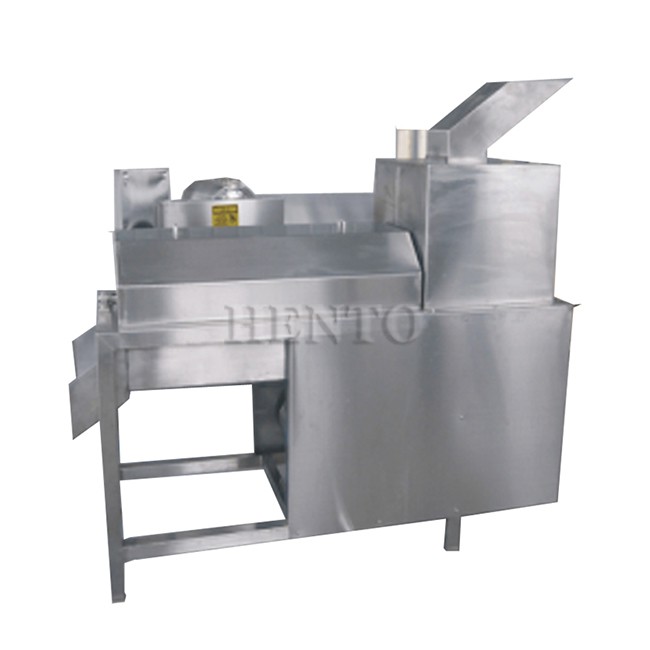

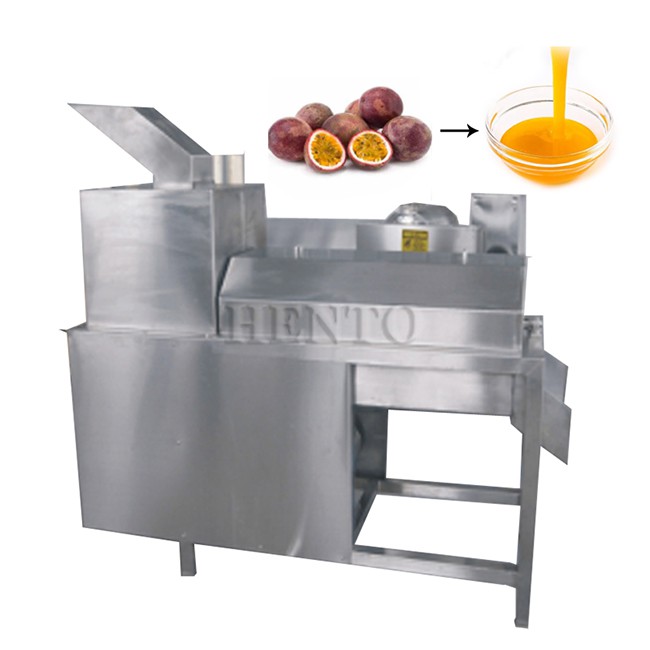

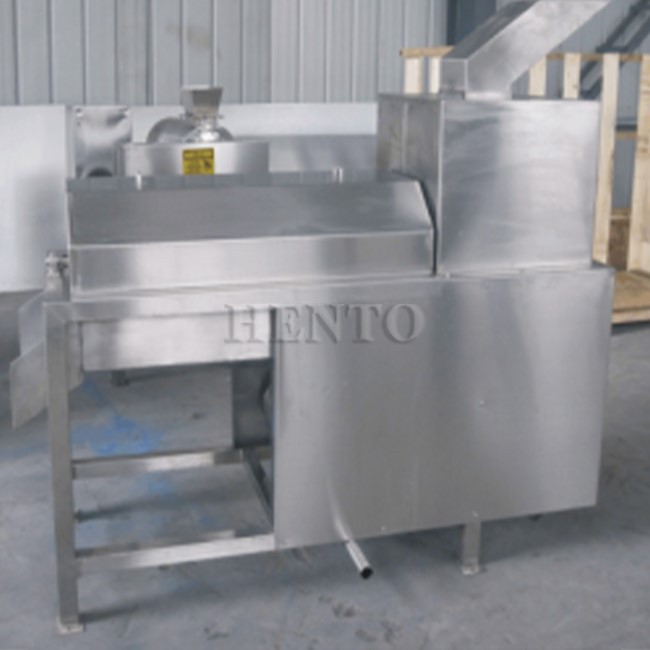

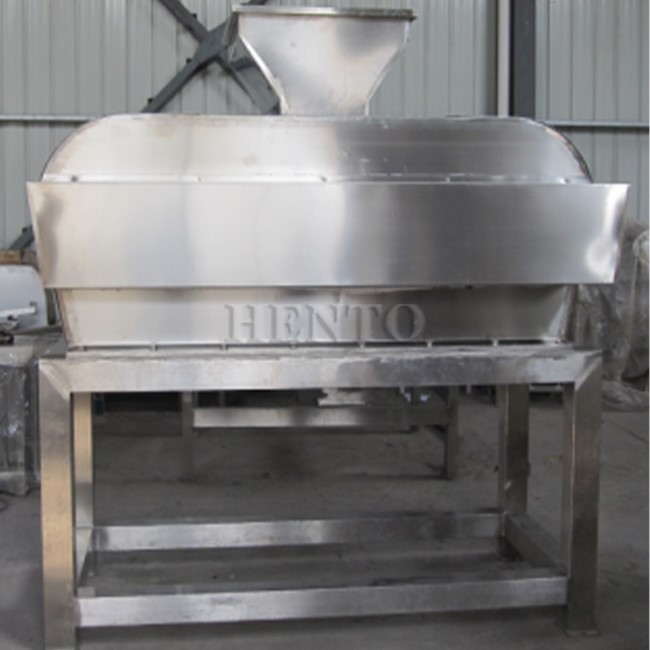

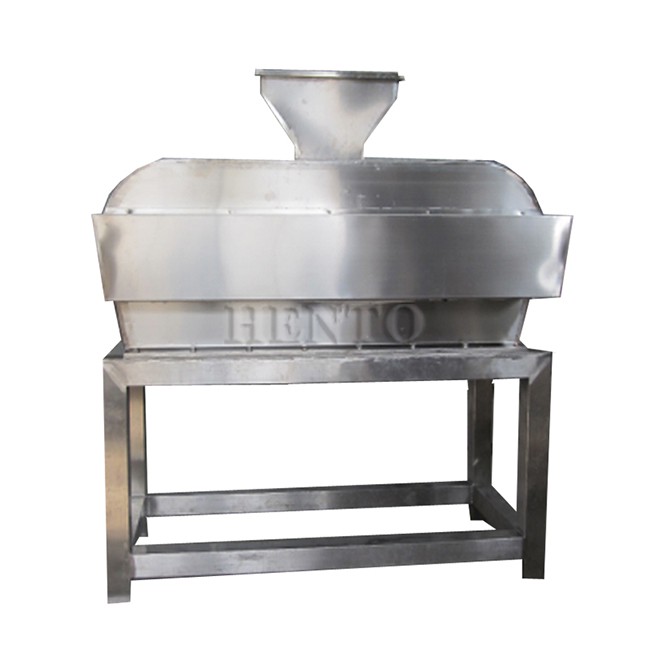

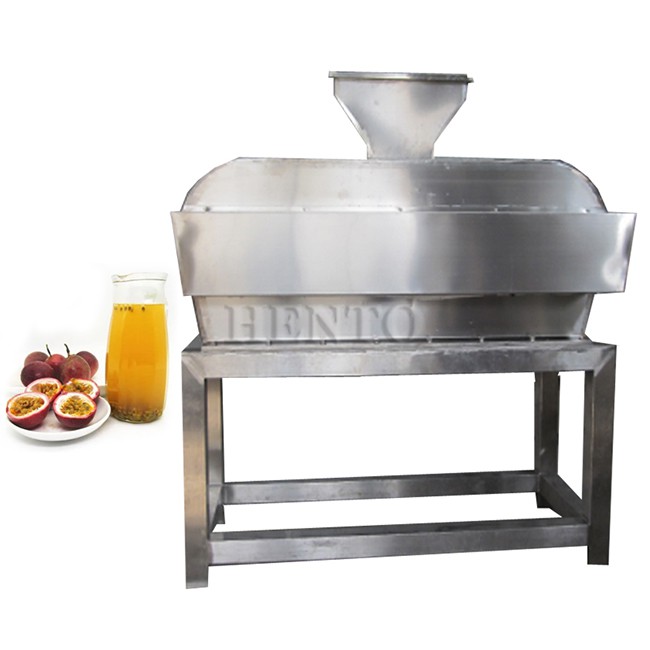

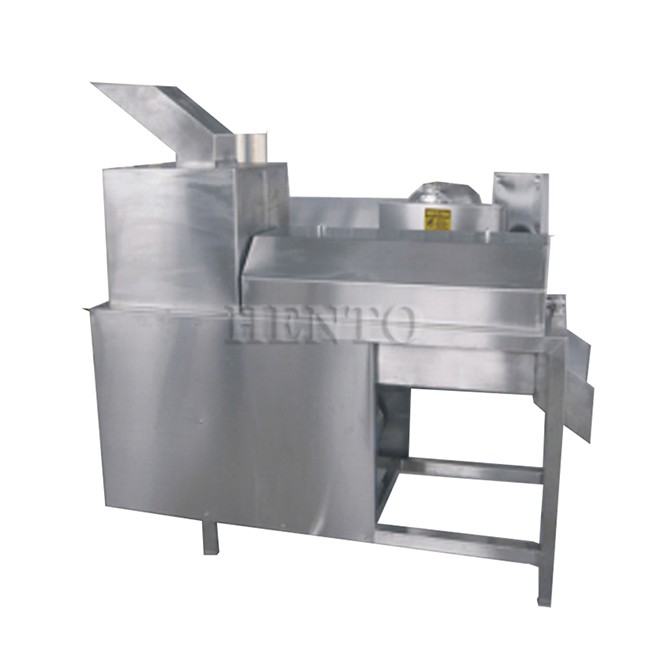

Passion Fruit Juice Extractor

It is suitable for tomato crushed pulp, kiwi, strawberry, apple, pear, hawthorn, date and other fruits softened by pre-cooking.

When the material is put into the sieve tube, the existence of the rotating rod and the role of the guiding angle, so that the trajectory of the material along the cylinder to the exit end of the movement of the spiral movement, the scraper and the material through the centrifugal force and abrasion in the sieve tube between the movement. Juice and meat (collected from the collector to the pulp in the next process), skins and seeds are discharged from the other open ends of the cylinder to achieve separation.

Machine firstly cuts the feed into sections by the rotary cutter at the feeding port, and then cuts the feed into small sections by the high-speed rotating hammer blade knife and then makes the pulp at one time. Multi-purpose fruit and vegetable pulper is the ideal machine for making jam, juice, vegetable juice, suitable for a variety of fresh fruit and vegetable pulping and separation. Can pulp fruits, such as: orange meat, grapes, kiwi, mulberry, prunes, peach (core), etc., playing the fruit sauce juice, but also will be able to green vegetables (cut off), tomatoes, peppers, celery (cut off), etc. into vegetable pulp juice, vegetable tendons separated out, for food processing enterprises important equipment. Mainly suitable for beet, rape and a variety of root crops (sweet potatoes, potatoes, turnips, carrots, pumpkins) pulping. The pulping liquid has long storage time, small loss of palatability and nutrients.

★ Before starting the car, first check the rotor parts of the connection between the parts is firm and reliable, the motor steering and labeling is consistent, and then to the two ends of the bearings into the No. 20 mechanical oil, turn the handwheel clockwise, lock the cylinder cover before driving; and then uniformly added to the material do not impact. Depending on the specific conditions of slag and pulp, adjust the screw angle of the scraper and the gap between the scraper and the screen, so that the juice content of the slag to meet the process requirements. Stop: Turn the handwheel counterclockwise, after the motor stops rotating, pull off the main gate.

★ Do not open the front cover of the cylinder when the rotor has not stopped rotating.
