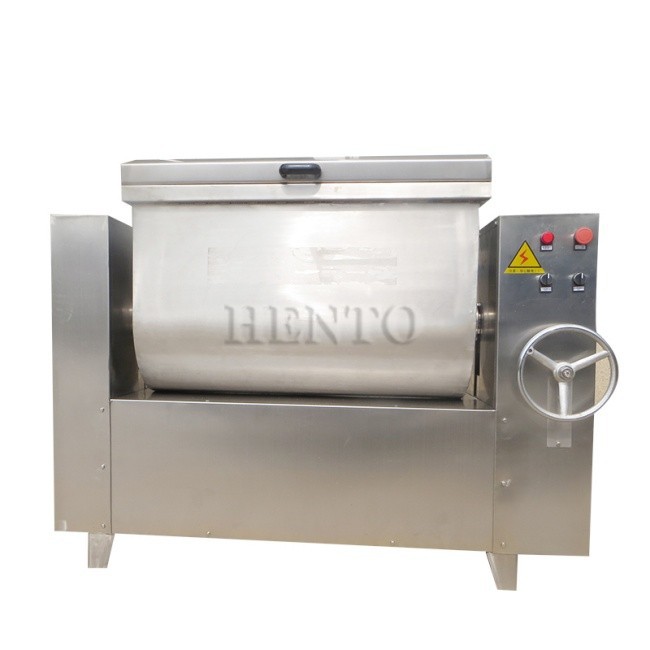

The minced meat mixer is a necessary equipment for mixing materials. It is efficient and easy to operate. It is the preferred equipment for making smoked sausage products, granular and muddy mixed sausage products and meat ball. It is also an optional equipment for producing dumplings and Wonton stuffing products.

Send Inquiry

Product Introduction

Product Description

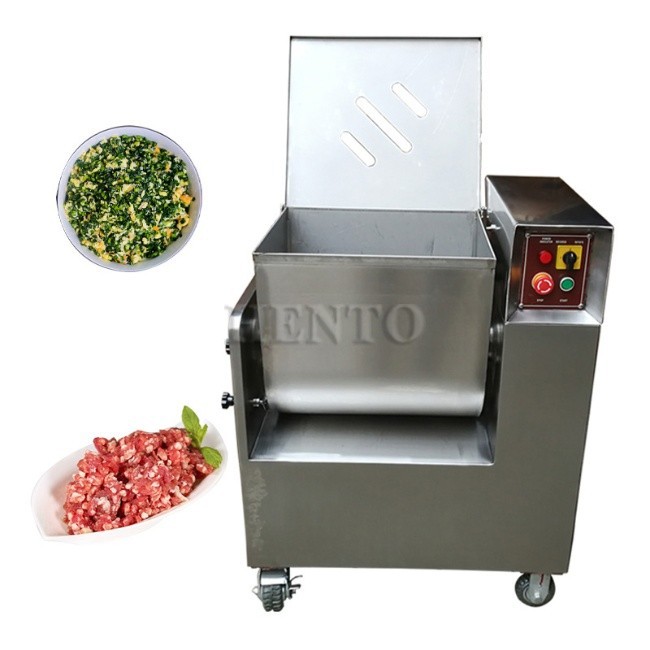

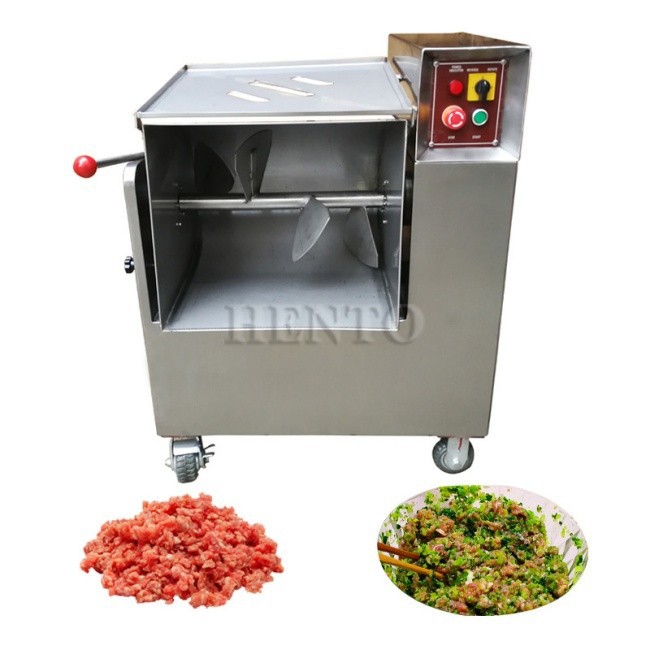

The minced meat mixer has good adaptability and mixing effect for granular, powdery, muddy, pasty, and paste like substances. It has as good shape retention for block shaped objects, with forward and reverse rotation functions, and automatic discharge function. Adopting inclined discharge, safe and reliable. Adopting a parallel dual axis structure and inclined plate blades, the material achieves optimal results and is suitable for various process requirements.

1. High efficiency and fast mixing speed.

2. Easy to operate, convenient and effortless.

3. Automatic discharge, lower labor intensity.

4. The unique spiral blender arrangement allows for more uniform mixing of materials, resulting in a larger amount of material to be loaded at a time.

5. The unique three-layer sealing protection extends the service life of the equipment and makes cleaning more convenient,

and the dumpling Wonton stuffing mixer is more reliable.

6. The revolving blender structure makes the material mixing more uniform, speed control, faster meat beating at high speed, no juice water coming out of the vegetables mixed with stuffing at low speed.

Machine Structure

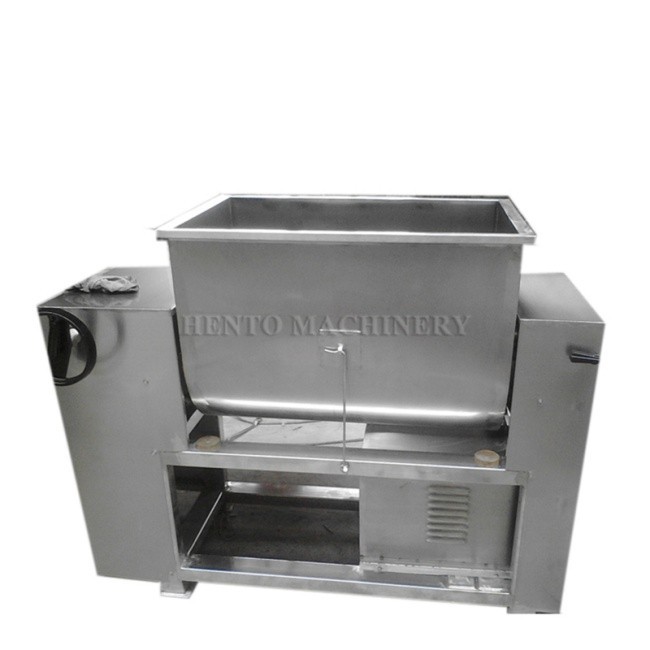

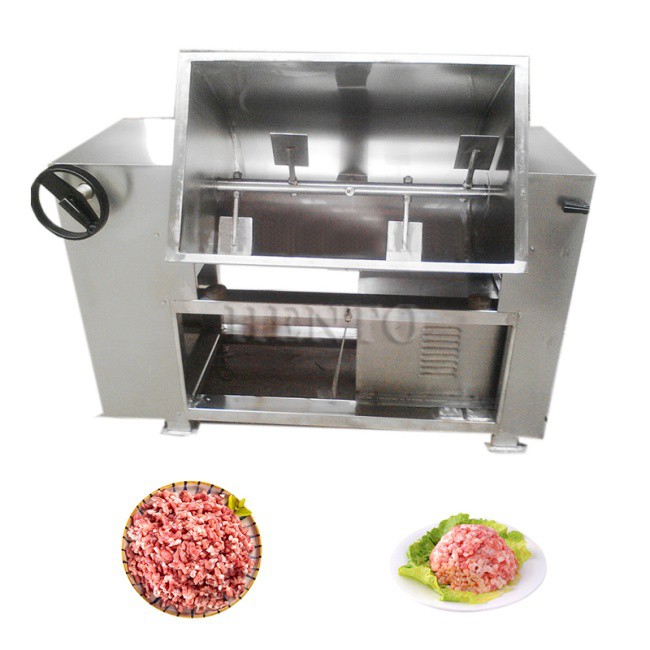

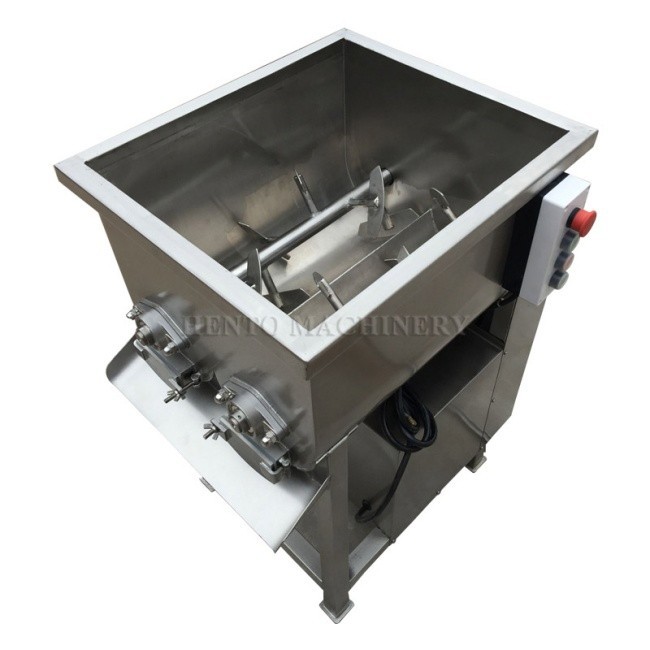

The minced meat mixer mainly consists of a frame, transmission part, hopper, mixer, and electrical control part. The transmission part adopts chain transmission, which is smooth and has low noise. The material contact part is all made of stainless steel material, which meets the national food safety standards.

Working Principle

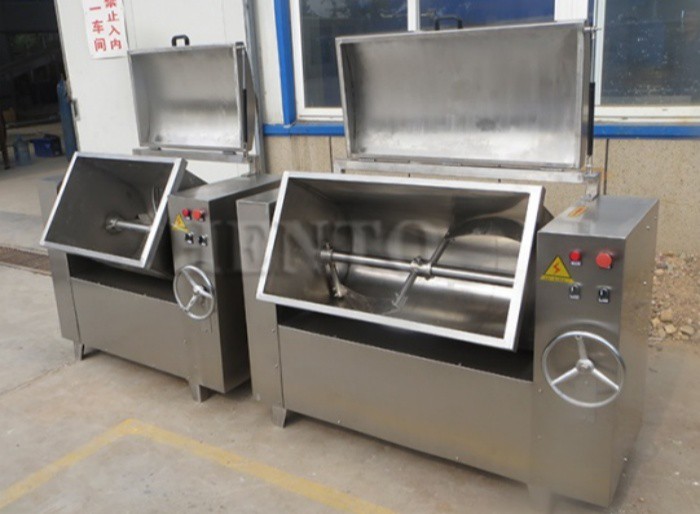

Put the materials to be mixed into the hopper, such as meat, vegetables, etc., then start the machine, use the mixer to rotate forward and backward in the hopper, mix the materials evenly, and then you can flip the hopper 90 degrees to pour out the materials.

Maintaince

Note: All maintenance works must be carried out after cutting off the power supply.

1.During use, if the mixer speed decreases or the filling efficiency decreases, the right guard can be removed to check the elasticity and wear of the ordinary V-belt, and adjust or replace it in a timely manner.

2. After using, the machine should be carefully cleaned to ensure food hygiene. During cleaning, do not rinse directly with a water spray pipe. When cleaning, the mixer can be removed from the hopper and the inside of the mixer and hopper should be cleaned.

3. Regularly add an appropriate amount of calcium based grease from the refueling point.

comparison of product parameters

Model	HT-KJ50	HT-KJ100	HT-KJ150
Capacity	35kg/batch	75kg/batch	100kg/batch
Auger Rotating Speed	75r/min	75r/min	75r/min
Voltage	380v	380v	380v
Skip Car Volume	35L	100L	150L
Weight	145kg	245kg	26k0kg
Power	1.5kw	1.5kw	1.5kw
Dimension	1330600920mm	1330600920mm	1580600920mm

Model	HT-KJ300	HT-KJ800	HT-KJ1000	HT-KJ1200
Capacity	250kg/batch	500kg/batch	700kg/batch	1000kg/batch
Auger Rotating Speed	75r/min	55r/min	55r/min	55r/min
Voltage	380v	380v	380v	380v
Skip Car Volume	300L	600L	800L	1200L
Weight	451.4kg	500kg	600kg	800kg
Power	1.5kw	3+3kw	3.5+3.5kw	3.5+3.5kw
Dimension	19807201200mm	175012001850mm	195012001750mm	200012501750mm

Get a Quote Now

FAQ

Q: 1.What's the MOQ?

A: 1 set

Q: 2.Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service?

A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A: Video technical support; Online support ; Field installation, commissioning and training;
