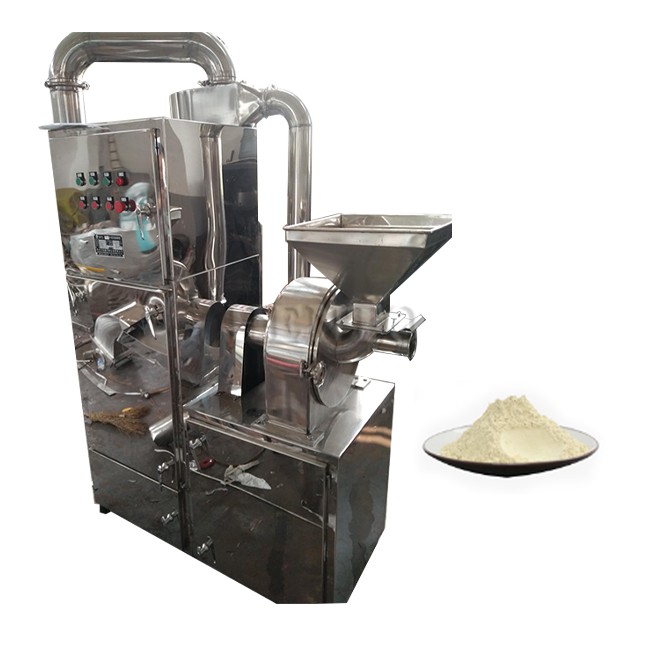

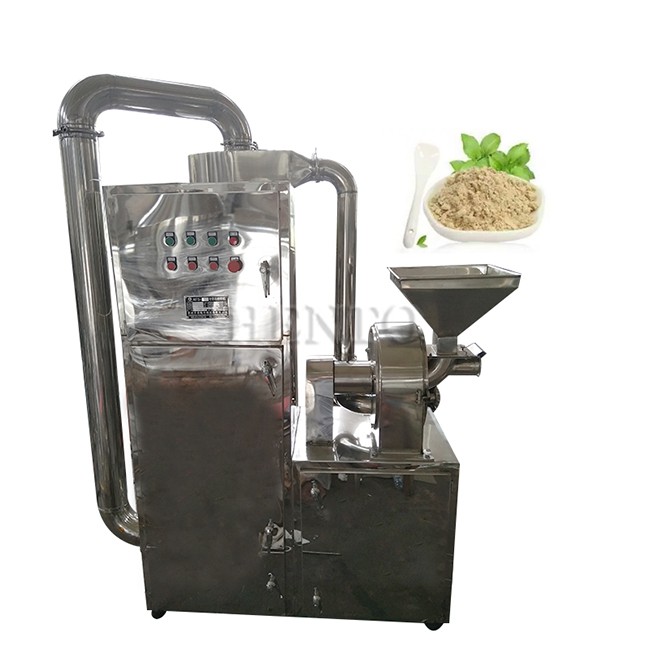

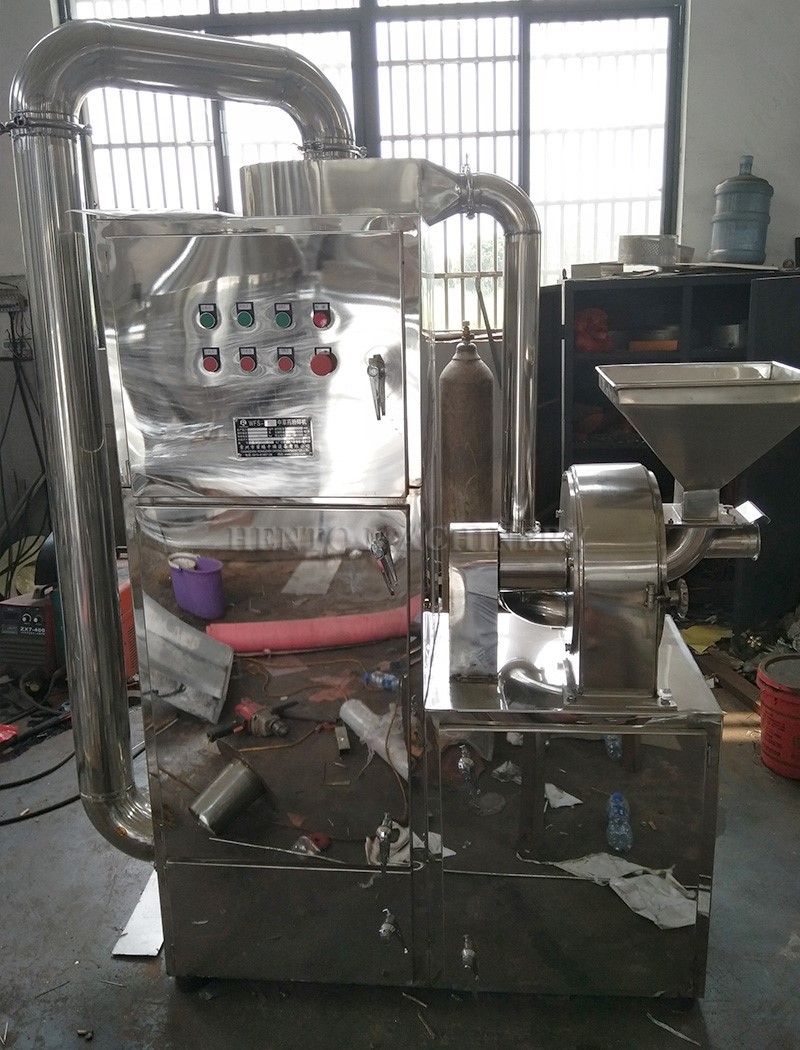

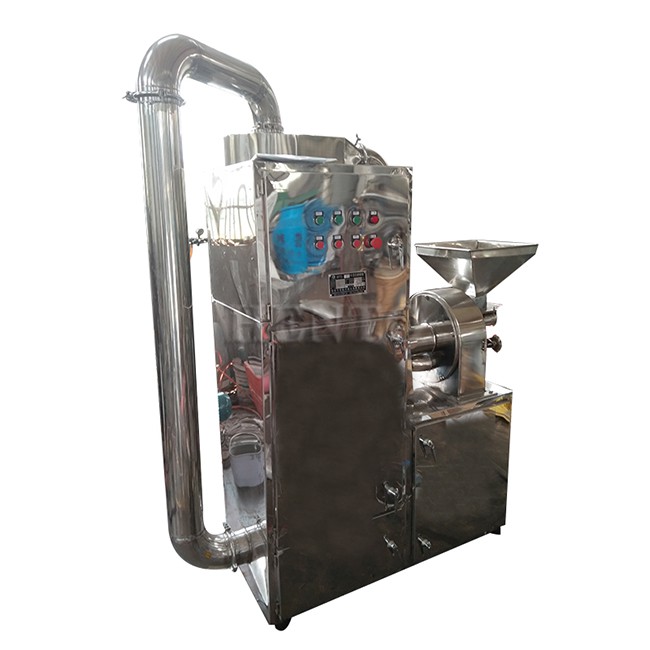

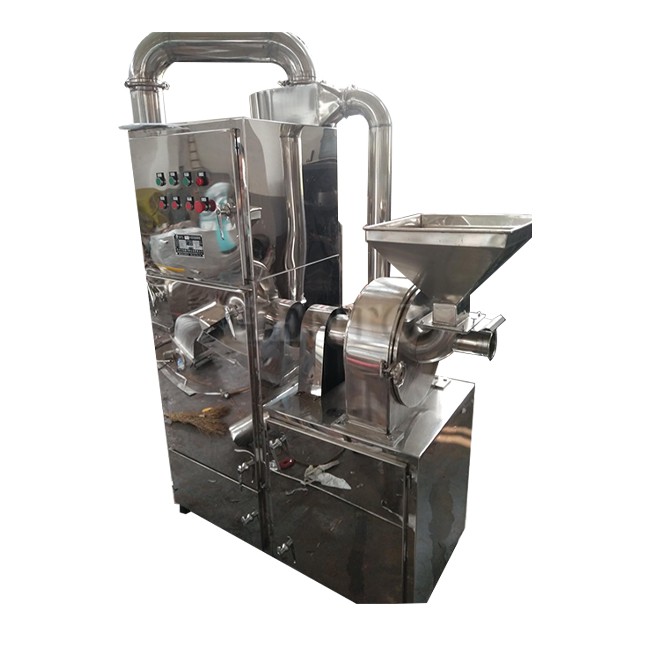

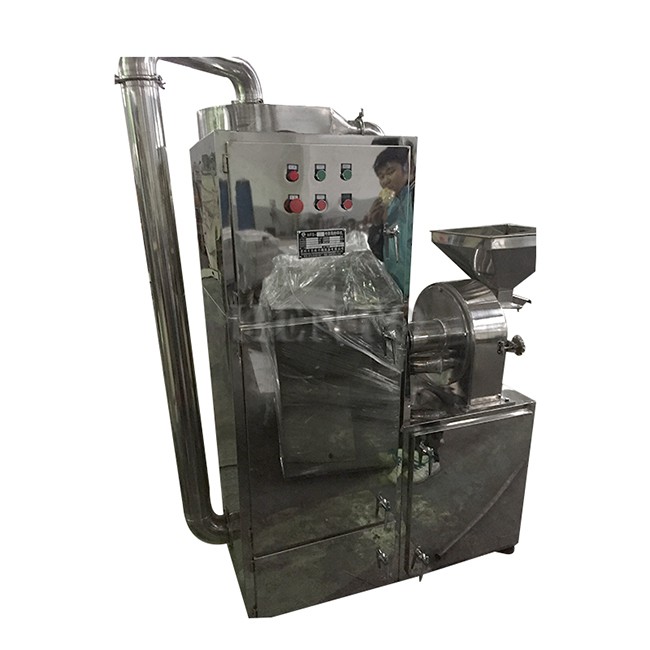

Herbal Grain Food Crusher Grinder
Product Description

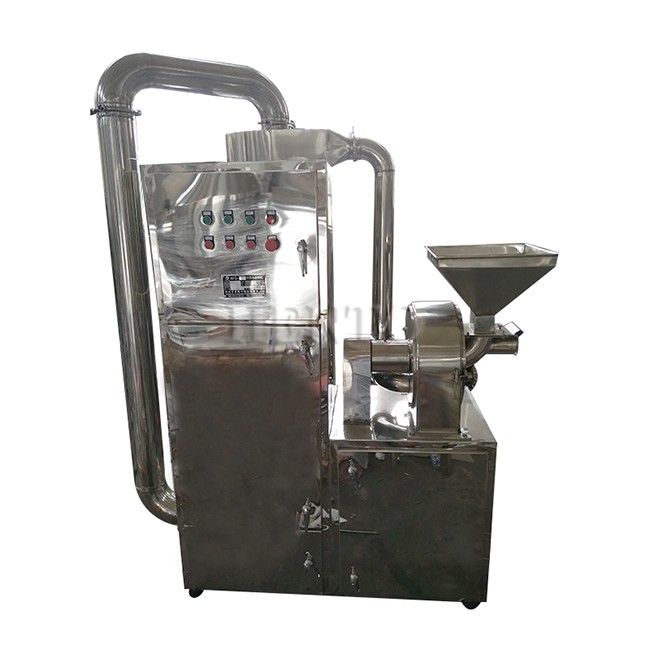

The Chinese medicine crusher has the characteristics of precision, small size, light weight, high efficiency, no dust, clean and hygienic, easy operation, beautiful appearance and so on. The grinding tank and blade are made of stainless steel, which can complete coarse crushing and fine powder in 3 seconds to 2 minutes, and can quickly crush a variety of Chinese medicinal materials and most of the grain.
The blade and the ring should be checked frequently for wear. If the productivity decreases after wear, the particle size becomes coarse and the wear is replaced. The main engine and the graded flow bearing are grease lubricated, using No. 2 special grease, bearing grease change period is about three months, the filling amount of grease is 1/2 of the space in the bearing chamber must not be filled too much grease otherwise it will cause the bearing temperature is too high. The grease change period of the screw feeder is half a year, and ordinary calcium-based grease is added. Do not turn the handwheel handle during shutdown.
Advantage
Crushing, grading machine, in the case of non-stop, can be arbitrarily adjusted particle size. The product particle size is uniform, the fineness can reach 10-5U, and the materials that meet the fineness requirements can be sent out in time to avoid over-crushing and narrow material particle size distribution.


Adopt the advantages of dry Chinese mechanical shredder at home and abroad, and use large air volume into the cavity or water jacket cooling according to needs to reduce the crushing heat, prevent material particles from sticking to the wall and sticking to the surface of the plate.

The herbal grinder machine structure is compact and reasonable, small size, low energy consumption, stable rotation, low noise, simple installation, simple operation, easy to disassemble and repair, easy to replace damaged parts.

Professional experienced team installation, construction and commissioning, reliable and assured, suitable for Mohs hardness less than 5 water content less than 10% of dry materials, for aggregates, has a good dispersion and dispersion function, with automatic slag discharge, not easy to crush the function.
Technical parameter
|
Model |
HT-WF200 |
|
Capacity |
20-50kg/h |
|
main shaft speed |
4200/min |
|
Feeding Size |
10-40mm |
|
Power |
5.5kw |
|
Voltage |
220/380V |
|
Dimension |
1200*1000*1850mm |
|
Mesh |
60-220mesh |
FAQ
Q: What is Foreign Trade-Express?
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
Q: What about After-sales service?
