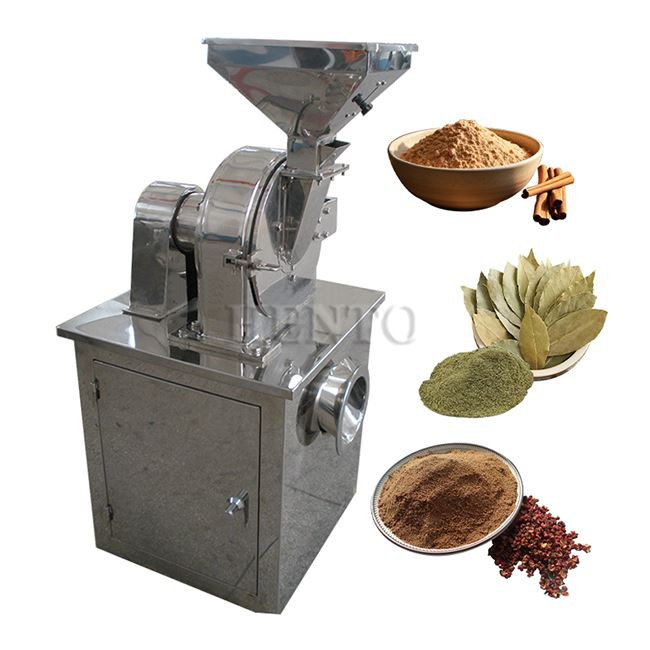

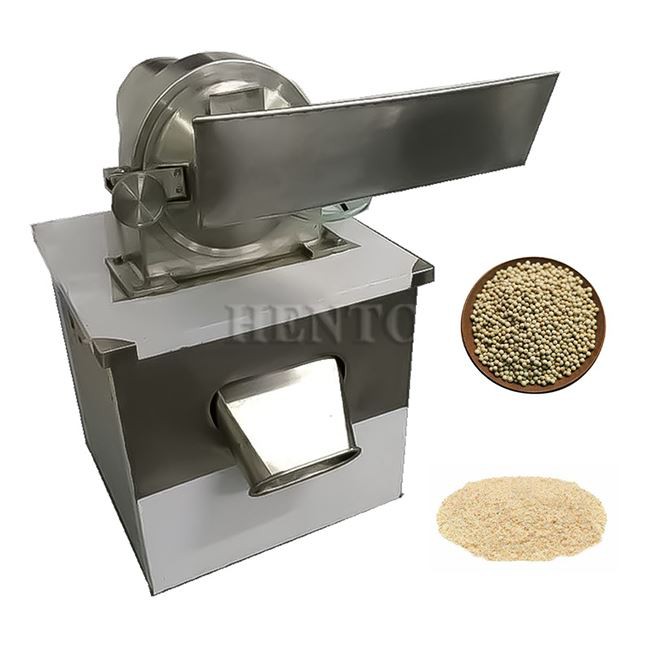

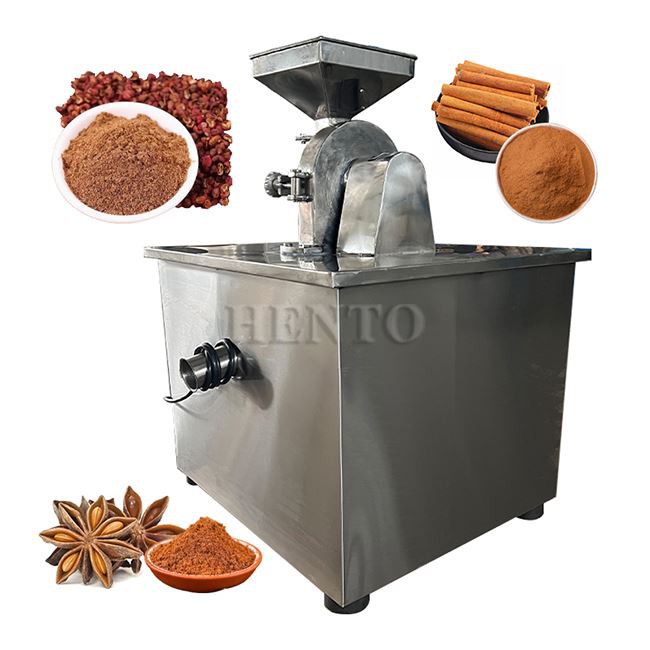

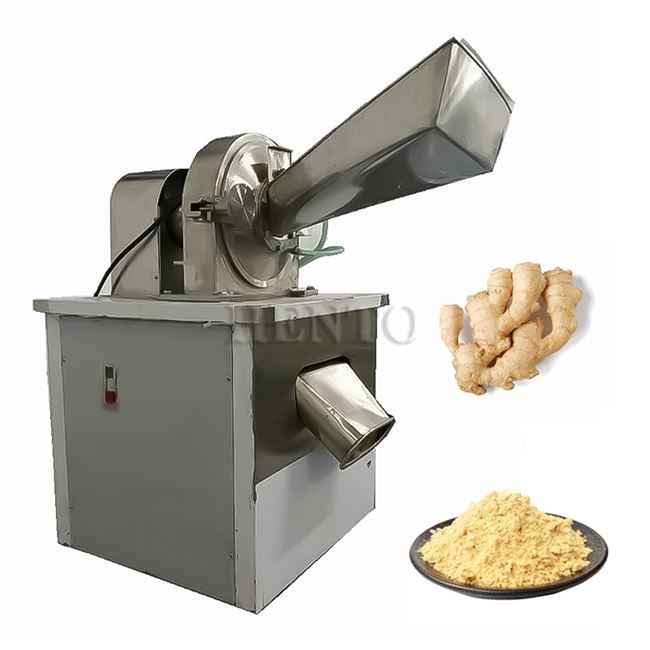

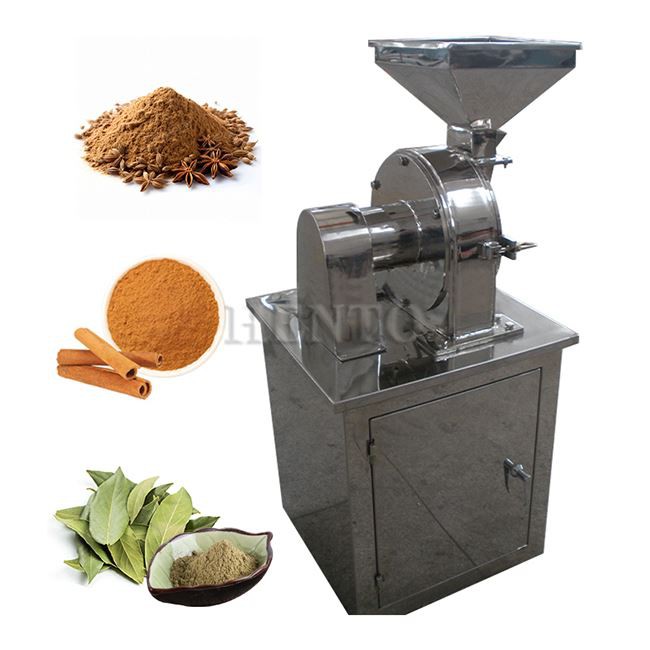

Ginger Grinding Machines
Features
High efficiency
The grinding speedof this machine is very high and it is jammy to use, so it can reduce the time and labor required for grinding ginger greatly.
multifunctional
Ginger Grinding Machines are usually used to grind various types of spices, such as ginger, garlic, pepper, and cumin. This makes it become an important equipment in kitchen.
Consistency
The machine ensures that the ground ginger is consistent in size and texture, this is vital for achieving the desired flavor and aroma.
Cost-effective
It can reduce the need of package and shipping costs by using this machine, so It is more cost-effective to grind ginger at home than buying pre-ground ginger from the store.
Hygienic
By using this machine, it can ensure that the spice is free from any contaminants that may be present in pre-packaged ginger. So this makes it one more hygienic option.
Working Principle

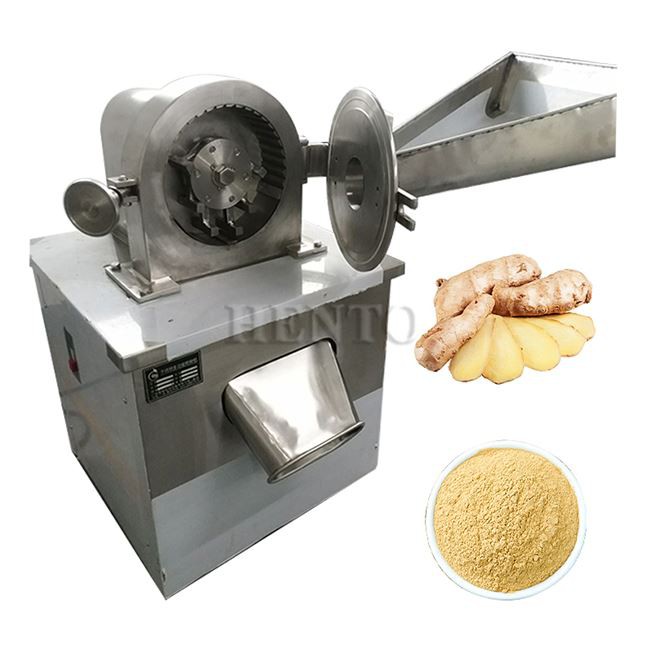

The parts that contact with materials of the whole Ginger Grinding Machines all adopt 304 stainless steel. Moreover, there are different models like toothed discs, hammer discs, air cooled, water cooled, vertical, horizontal, and other models according to different working principles. The working principle is that the main shaft of the motor driven machine rotates at high speed, and the movable and fixed discs collide and rub with each other, then grind the materials. The crushed material is subjected to the action of rotary centrifugal force, filtered through the sieve holes, and then enters the capture bag.
There are different mesh screens for choice:
Diameter of large mesh screen: 2, 3, 4, 5, 6, 8, 10mm.
( The larger the number, the finer the screen)
Fine screen mesh number: 20, 40, 60, 80, 100, 120.
( The larger the number, the finer the screen)
Contact now
comparison of product parameters
|
Model |
HT-MF200 |
HT-MF300 |
HT-MF400 |
HT-MF500 |
|
Voltage |
220v/380v |
380v |
380v |
380v |
|
Power |
3kw |
5.5kw |
7.5kw |
15kw |
|
Spindle Speed |
5200r/min |
5200r/min |
4200r/min |
3400r/min |
|
Mesh Fineness |
10-120mesh |
10-120mesh |
10-120mesh |
10-120mesh |
|
Capacity |
10-120kg/h |
10-120kg/h |
80-300kg/h |
300-500kg/h |
|
Material |
SUS304 |
SUS304 |
SUS304 |
SUS304 |
|
Dimension |
510*450*790mm |
660*580*970mm |
650*640*1340mm |
1100*900*1300mm |
|
Packing Size |
660*510*970mm |
860*660*1250mm |
/ |
/ |
|
Weight |
100kg |
200kg |
260kg |
520kg |
|
Outer diameter of crushing chamber |
250mm |
320mm |
420mm |
/ |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
Q: What about After-sales service?
