Fruit Juicer Screw Extractor Machine
2. Fruit Juicer Screw Extractor Machine yield is much higher than that of the traditional screw juicer, and the operation speed is slow, and the temperature will not rise during the pressing process.
Product Introduction:
The basic principle of the Fruit Juicer Screw Extractor Machine is mainly based on the double-screw filter press designed in Germany, which is made by our company after simplification and improvement. This type of Fruit Juicer Screw Extractor Machine is not picky about materials, and can meet the solid-liquid separation process of most materials. The press ratio is high (4:1), the juice yield is higher than the traditional screw press, the operation speed is slow, and the temperature will not rise during the press process;
Fruit Juicer Screw Extractor Machine is mainly composed of helical gear reducer, coupling, feed box, variable-diameter and variable-diameter press screw, removable filter screen, discharge adjusting cone disk mechanism, bearing seat, frame, juice chute, slag bucket, etc. (see attached drawing for details); Except for the helical gear reducer and coupling, the equipment is all made of SUS304 stainless steel, and the overall surface is polished, beautiful and generous.
Technical Parameter
|
No. |
Model |
Capacity |
Screw diameter |
power |
speed |
diameter |
|
1 |
DLZ-0.5 |
0.3-0.5t/h |
φ100mm |
2.2Kw |
55r/min |
1505×360×800mm |
|
2 |
DLZ-1.5 |
0.8-1.5t/h |
φ172mm |
5.5Kw |
39r/min |
2130×470×1135mm |
|
3 |
DLZ-2.5 |
0.8-2.5t/h |
φ262mm |
7.5Kw |
35r/min |
2507×600×1420mm |
|
4 |
DLZ-5 |
2-5t/h |
Φ335mm |
15Kw |
22r/min |
4600×800×1800mm |

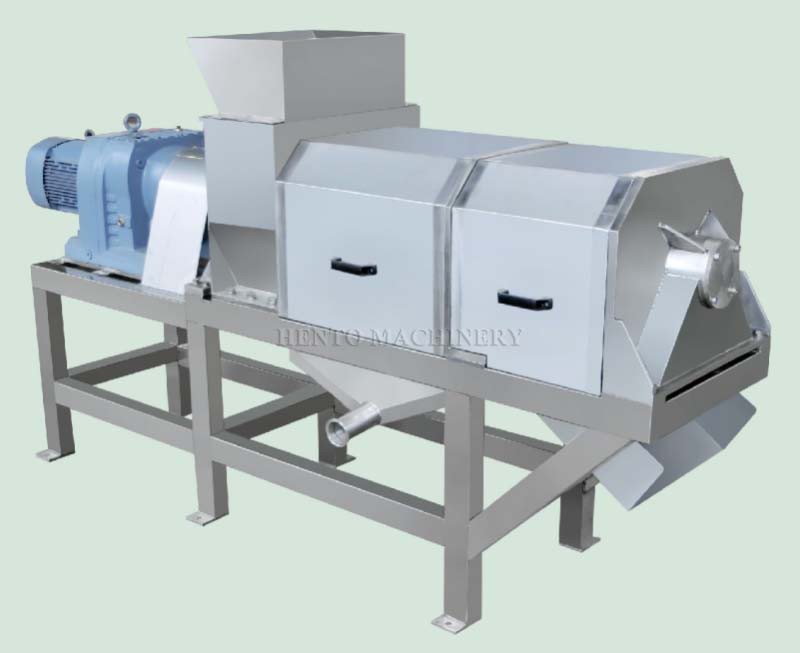

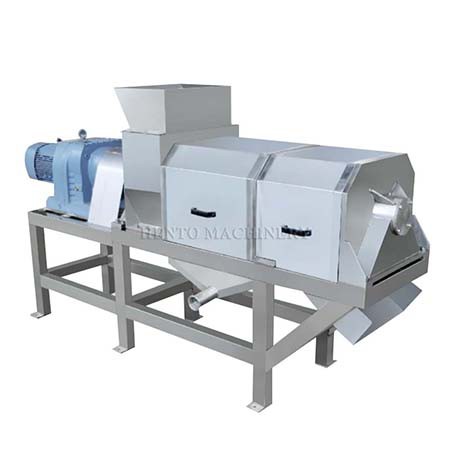

Product Pictures
