Egg Powder Spray Dryer
video

Egg Powder Spray Dryer

Egg Powder Spray Dryer is designed to convert egg liquid into powder form while maintaining its nutritional value. With high efficiency and minimal material loss, it is a cost-effective solution for producing high-quality egg powder. Its compact design allows for easy installation and maintenance.
Send Inquiry
Product Introduction

Working Principle of Egg Powder Spray Dryer



Egg powder spray dryer operates by using hot air to dry the liquid egg mixture that is sprayed through a rotary atomizer or a nozzle. The material is fed through a chamber where hot air is directed onto it. The hot air is propelled through small orifices that create an even mist of liquid particles that are then dried in a short period of time. The end product is a fine powder that is easy to handle and store.

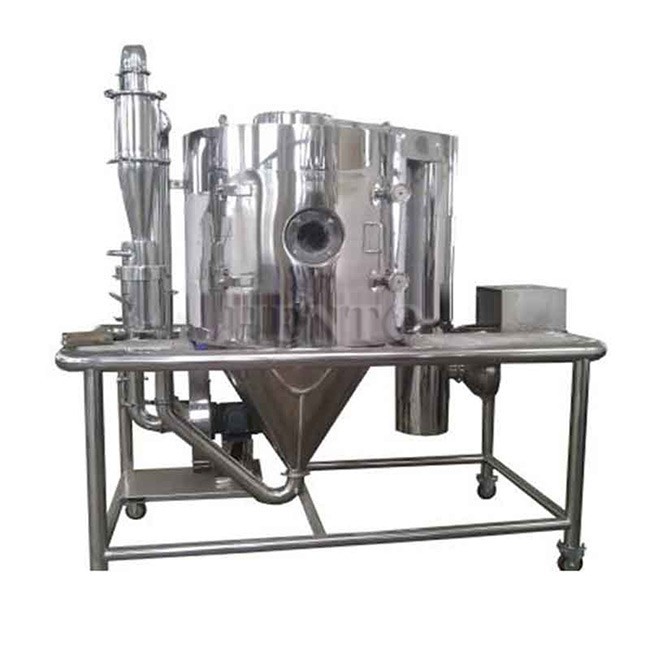

spray drying machine



Applications



1. Food Processing: Egg powder spray dryer is widely used in the food processing industry to produce dried egg powder, which is used as an ingredient in various food products.

2. Pharmaceutical Industry: The equipment is also used in the pharmaceutical industry to produce dried powder for use in medicine.

3. Chemical Industry: Egg powder spray dryer is also used in the chemical industry to dry chemicals.

4. Biotechnology: Biotechnology companies use egg powder spray dryer to dry biomaterials and produce the end product.

Egg powder spray dryer is an important piece of equipment that is widely used in the food and pharmaceutical industry. It is highly efficient and produces a high-quality end product. it has numerous advantages, including low energy consumption, easy maintenance, high product quality, and high efficiency. Proper operation and maintenance of the equipment are essential to ensure that it operates optimally.



Model

HTO-RY1.5

HTO-LPG5

Evaporation

of water

1.5l/h

5l/h

Inlet

temperature(°C)

140~350

140-350

Outlet temperature (°C)

<80-90

80~90℃

Dimension

0.65×0.5×1.2

1.2×2×2.3



Model

HTO-LPG10

HTO-LPG15

Evaporation

of water

10l/h

15l/h

Inlet

temperature(°C)

140~350

140-350

Outlet temperature (°C)

<80-90

80~90℃

Dimension

2.2×1.3×2.3

3×2×2.8



Model

HTO-LPG20

HTO-LPG25

Evaporation

of water

20l/h

25l/h

Inlet

temperature(°C)

140~350

140-350

Outlet temperature (°C)

<80-90

80~90℃

Dimension

3.3*2.6*3.2

3*2.7*4.26

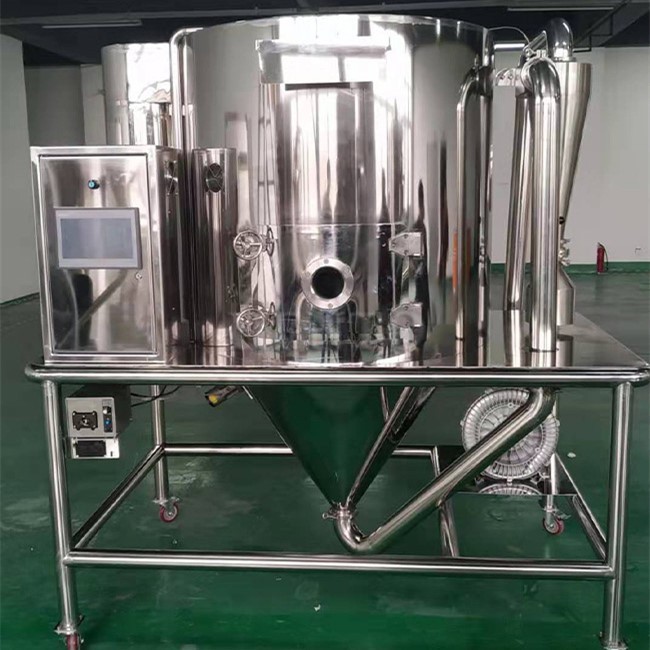

Food Grade Spray Dryer

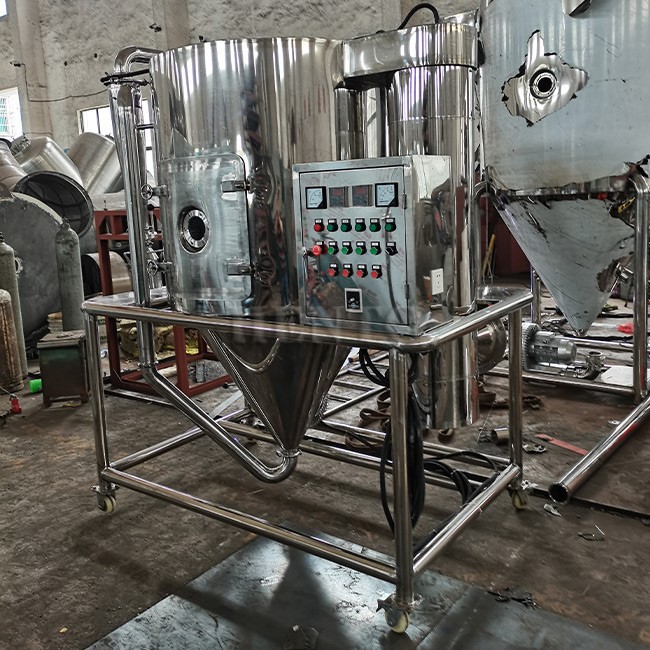

Spray Dryer Atomizer
