What kind of cookie does the machine can make?
Cookie forming machine can do cookies, puffs, macarons, sesame strips, white cake, nori cake, sesame cake, egg yolk cake, cake, etc., is through the dough extrusion forming, can produce a variety of unique dessert and cookie forming machine. This machine has the characteristics of technology, low price, accurate weight, simple operation, etc.
Welcomed by the majority of users, but also investors in the current market investment in food machinery. With a variety of molds, can produce dozens of fancy cookies, users can adjust their own choice according to needs. The raw billet of this machine can be baked by rotary hot air circulation oven or tunnel oven. It can also be composed of different cookie machinery production lines.

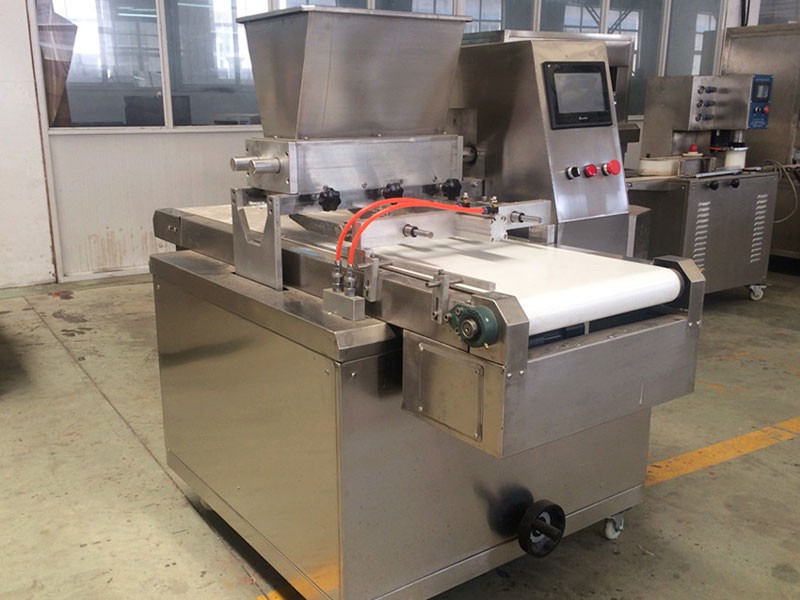

The cookie forming machine is a cutting and extrusion integrated cookie machine. All operation actions are driven by independent servo motor, and the operating system is controlled and adjusted by PLC touch screen.
A pair of fluted rollers feed the dough evenly to a set of metering pumps, with each discharge nozzle fed by a separate pump, ensuring that all products are the same size and weight, and can be used in tandem with a variety of steel belt tunnel ovens.
About the features of this machine
The whole machine is an aluminum alloy frame structure, with strong stiffness, machine control system, machinery and industry equipment costs, and excellent structural stability, the bottom of the frame is equipped with four universal ground casters, easy to move and stable.
The machine adopts the touch screen man-machine interface operating system, photoelectric control, servo motor drive, with the advantages of fast and accurate, smooth movement.

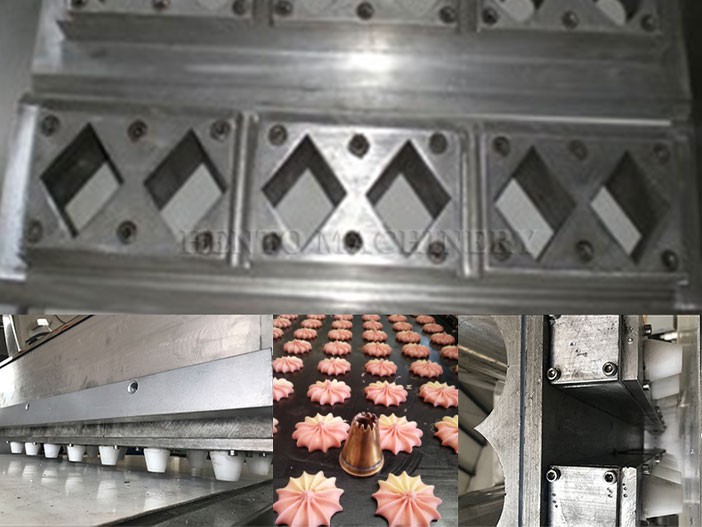

The machine is equipped with a variety of molds, can produce a variety of patterns of cookie food, pattern types can be customized according to customer needs, can arbitrarily adjust the pattern, twist Angle, set weight and production speed, quantitative accurate, fast and efficient.
The machine has automatic layout, automatic layout function, blank line spacing can be arbitrarily set according to need.
The machine is equipped with a safety protective net, open the protective net, the machine will automatically stop, safe and reliable.
The machine is beautiful and generous, the outer cover is all 304 stainless steel material, and the parts in contact with food all meet the requirements of national food standards, health, safety and reliability.
The cleaning method of the cookie maker is also very convenient
When the body of the cookie machine is completely cooled, it is the standard time for cleaning. After reverse flushing, clean the impurities on the filter screen. Gently scrub the filter with a brush if necessary.
Periodically remove the filter screen for cleaning.
Clean the filter screen and put it back into the machine in time, and pay attention to the correct position.
Pay attention to the removal of debris when cleaning, do a good job of collecting impurities, and the site must be cleaned after the operation.
product parameters
|
Type |
HT-HQ400 |
HT-HQ600 |
|
Capacity |
100-160 kg/h (6holes) |
180-220 kg/h (9holes) |
|
Function |
extrusion,torsional, brace, wire cutting |
extrusion,torsional, brace, wire cutting |
|
Twist |
400° |
400° |
|
Voltage |
220v, 50Hz |
220v, 50Hz |
|
Power |
1.5kw |
1.9kw |
|
Pressure |
5-6kgf/cm² |
5-6kgf/cm² |
|
Pan size |
600*400mm |
600*400mm/600*600mm |
|
Working Width |
400mm |
600mm |
|
Machine size |
1380*980*1220mm |
1380*1180*1220mm |
|
Net Weight |
450kg |
650kg |
