Bopp Tape Making Machine have really helped the adhesive tape industry grow, making it possible to produce high-quality tapes in all sorts of sizes and styles. These machines allow different industries to tackle a variety of tasks, which leads to saving money, boosting productivity, and improving performance.

Send Inquiry

Product Introduction

The Bopp Tape Making Machine has changed the game for the adhesive tape market by allowing the production of tapes with different sizes, shapes, and stickiness levels. With various capacities available, these machines can make tapes in different lengths and widths that fit what the market needs.

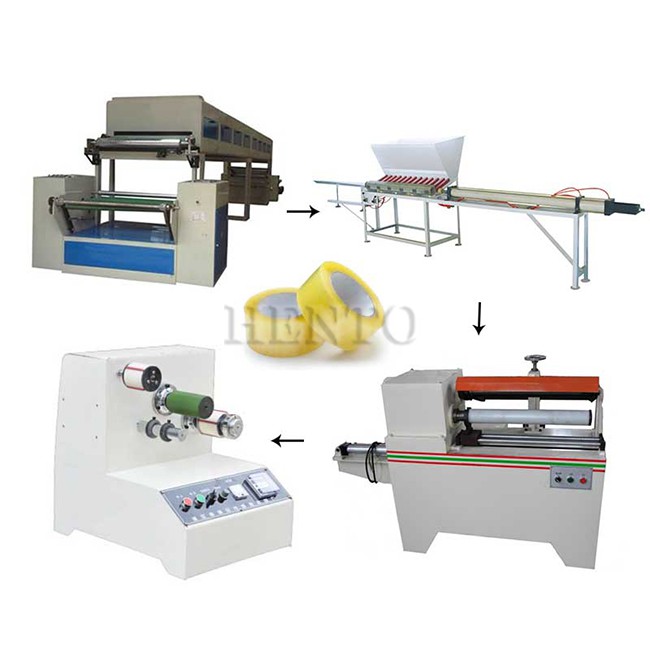

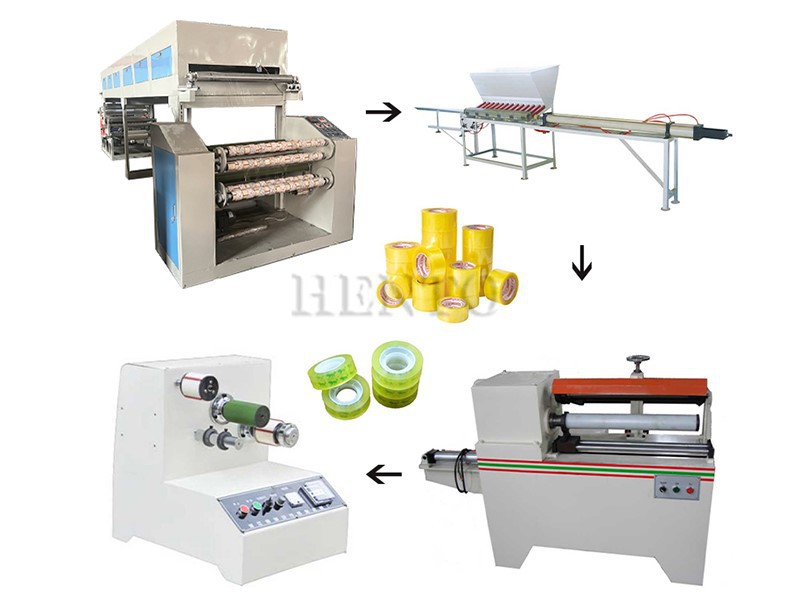

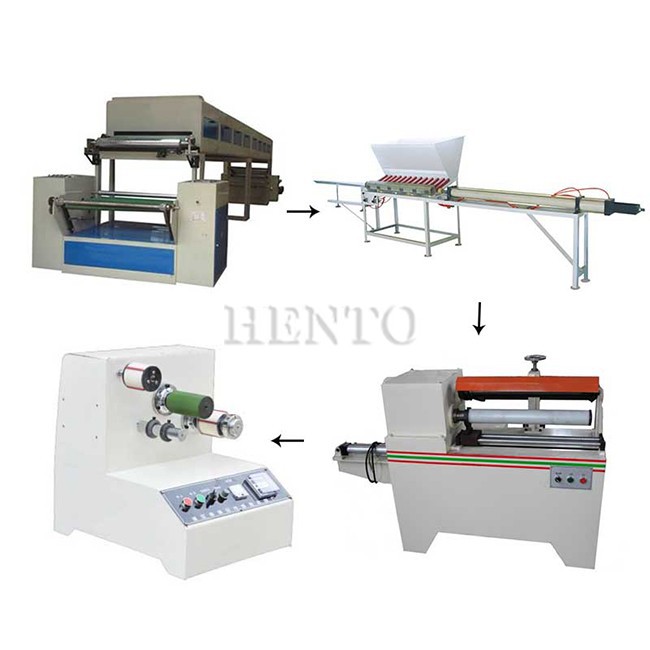

A Bopp Tape Manufacturing Machine includes several important parts like an unwinding unit, coating unit, drying unit, slitting unit, rewinding unit, and a control system. All these components work together smoothly to create high-quality adhesive tapes that are consistent and uniform.

Thanks to Bopp Tape Manufacturing Machines, the adhesive tape industry has made great strides by supporting many sectors such as electrical engineering, automotive manufacturing, construction services, healthcare solutions, and shipping logistics. With help from these machines, industries can now design specialized tapes tailored to their specific needs.

product parameters

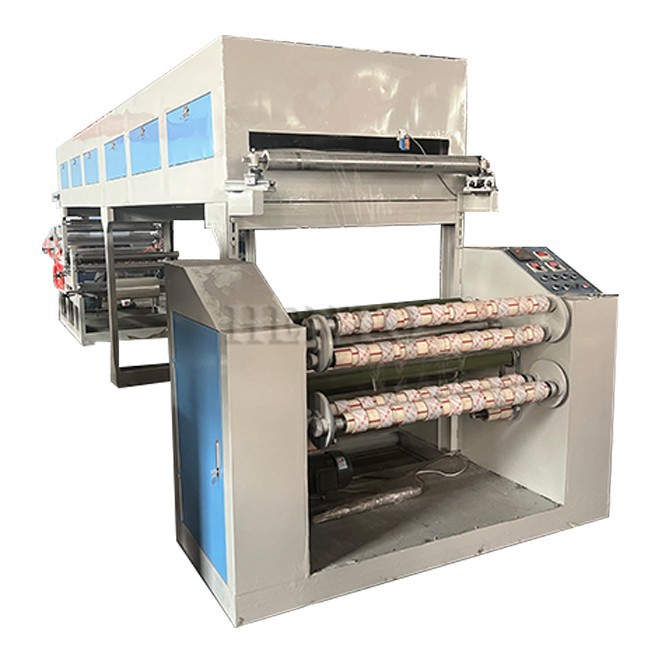

1) Coating machine (with tape cutting system)

Effective coating width	500/1000/1300mm
Roll width	550/1050/1350mm
Mechanical maximum speed	45m/min
Production speed	0m/min~50m/min
Maximum unwinding diameter	Φ600mm
Maximum winding diameter	Φ600mm
Retractable spindle shaft size	￠3" (inside diameter )
Maximum amount of glue	30g/m2(Dry glue)
Uniformity of coating	Dry glue≤±0.002mm
Heating and drying method	Electric heating (optional steam outside heating)
Temperature control	Highest100℃±5℃
Coiling edge neatly	End face neat error≤±3mm
Total mechanical power	Electric type 30KW/Steam type10kw(for 1000mm model)
Voltage	380V/50Hz or customer specified
Gas source	Compressed air 4~6kg/cm²
Heat source	Steam / electric heating

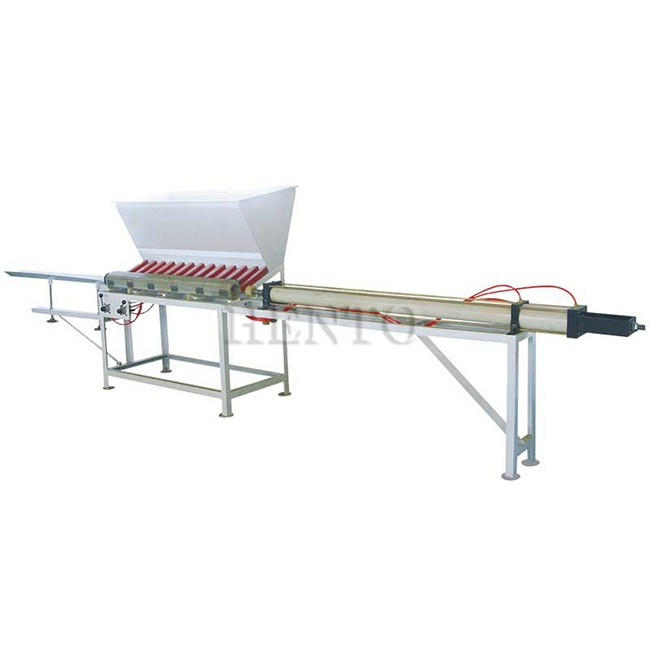

2) Pneumatic drawing machine

Specifications	1000mm/1300mm/1600mm
Working width	1000mm/1300mm/1600mm
Paper tube diameter	Φ76.2mm
The use of air pressure	5kg/cm2

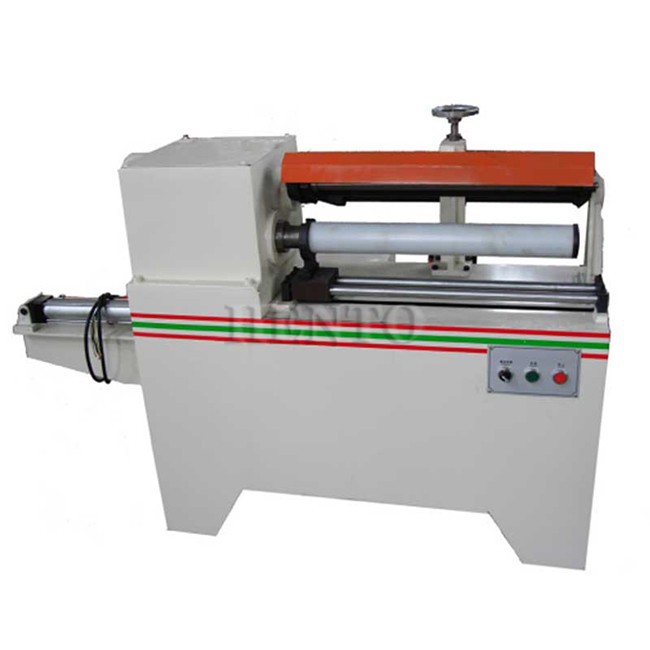

3) Pneumatic cutting machine

Maximum cutting pipe length	600mm
Paper tube diameter	76.2mm
Mechanical speed	0-1200 rev / min
Voltage	380V 50HZ
Motor Power	1.5KW

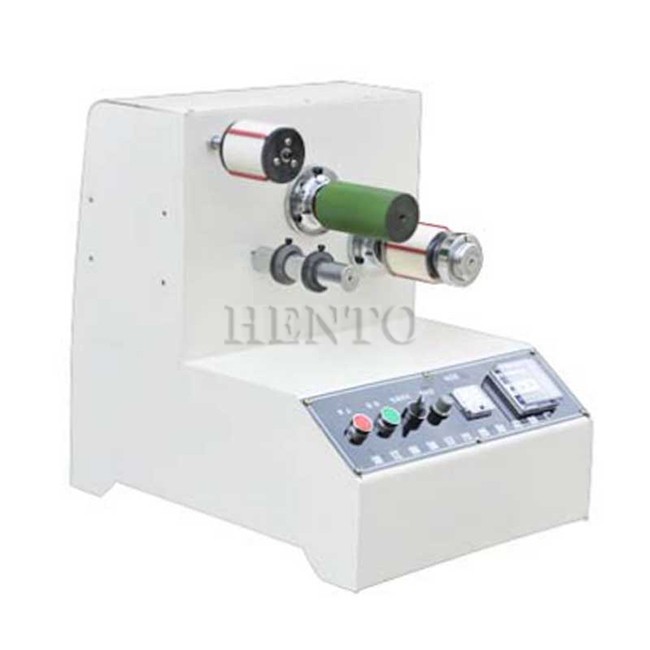

4) Rewinding machine

Maximum winding diameter	Φ300mm
Maximum take-width	100mm
Paper tube diameter	76.2mm
Rewinding Speed	100m/min
Input Power	1P, 220VAC, 1KVA

Contact now

Equipment configuration

1).Control part: PLC central processing system is adopted, and the panel is controlled by color touch screen.

2).Power part: double power and double frequency converter are adopted to regulate speed, and the power of the equipment runs more smoothly.

3).Printing part: monochromatic gravure printing.

4).Gluing part: automatic gluing is adopted, and the adjustment mode is to automatically adjust the glue thickness and manual fine-tuning.

5).Drying part: double drying channels are used to dry.

6).Temperature control part: adopt sectional temperature control

7).Slitting part: the upper and lower axes are used for automatic cutting.

8).Deviation correction part: a high sensitivity infrared deviation correction system is adopted.

FAQ

Q: 1.What's the MOQ:

A: 1 set

Q: 2. Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3.What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service:

A: Support voltage changing service as your demand;
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A: Video technical support;
Online support ;
Field installation, commissioning and training;
