Adhesive Tape Making Machine

Adhesive Tape Making Machine is a big progress in the tape and adhesive industry.It is used for making all kinds of tapes.Recently,demands of these tape is greatly increase,it prompt manufacturers to use more advanced technology in the production of tapes.

Send Inquiry

Product Introduction

Product Introduction

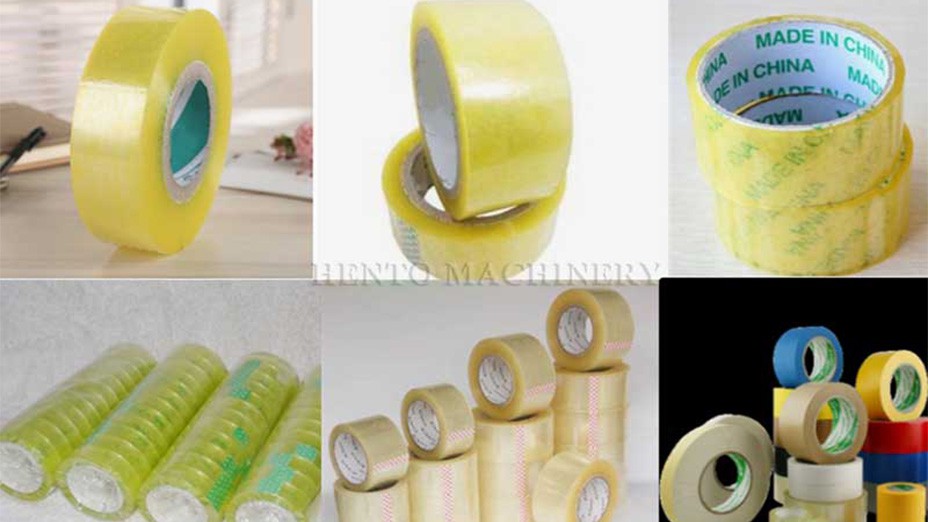

Tapes are used in different industries,such as package,pipe,healthcare,electrical work,automotive fields,and aerospace.In order to meet the needs of these industries,machines are designed to produce various types and sizes of tapes.for examples,double-sided tape, masking tape, electrical tape, foam tape, and adhesive transfer tape.

Competitive advantage

The company conducted a competitive advantage analysis to identify its strengths and weaknesses compared to its rivals.

Customization

The machinery allows for the production of tapes tailored to meet specific user requirements regarding size, shape, and color.

Cost-effectiveness

This equipment automates manufacturing processes which significantly reduces both time and costs involved in production. As a result, it makes the creation of adhesive tapes more economical.

Reliability

These machines are dependable as they consistently produce error-free tapes unlike human operators who may make mistakes during manual handling.

High-quality Tapes

Designed to manufacture high-caliber products with superior adhesive strength along with water resistance properties; this quality makes them suitable for various industrial uses.

Energy Efficiency

The Adhesive Tape Making Machine are engineered to minimize energy consumption throughout the manufacturing process making them environmentally friendly options.

Contact now

working principle

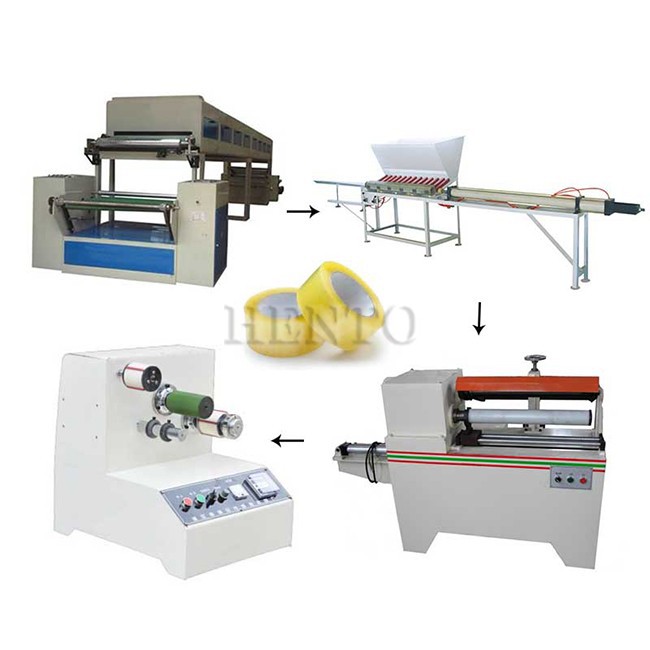

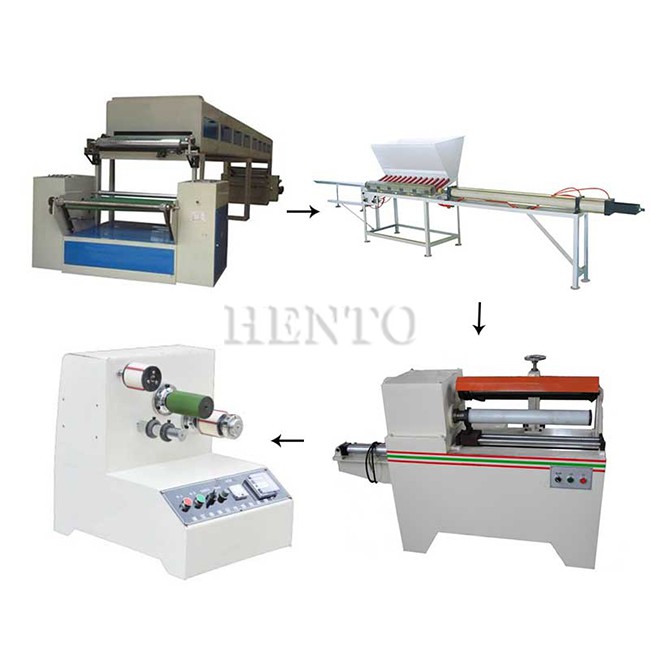

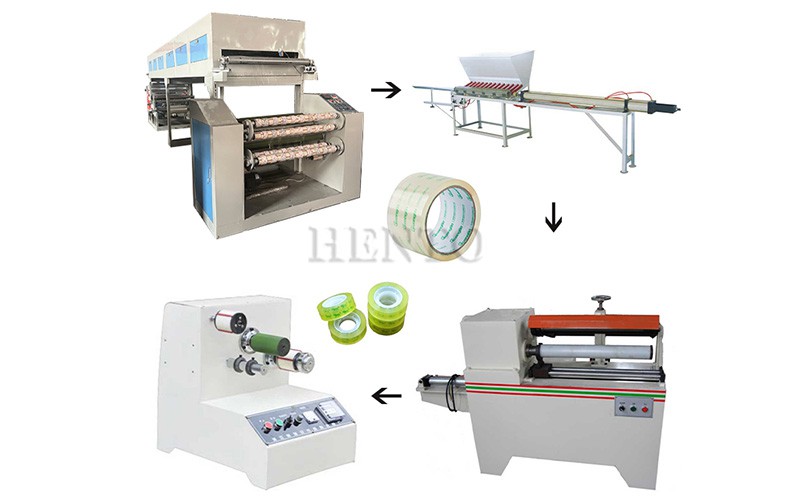

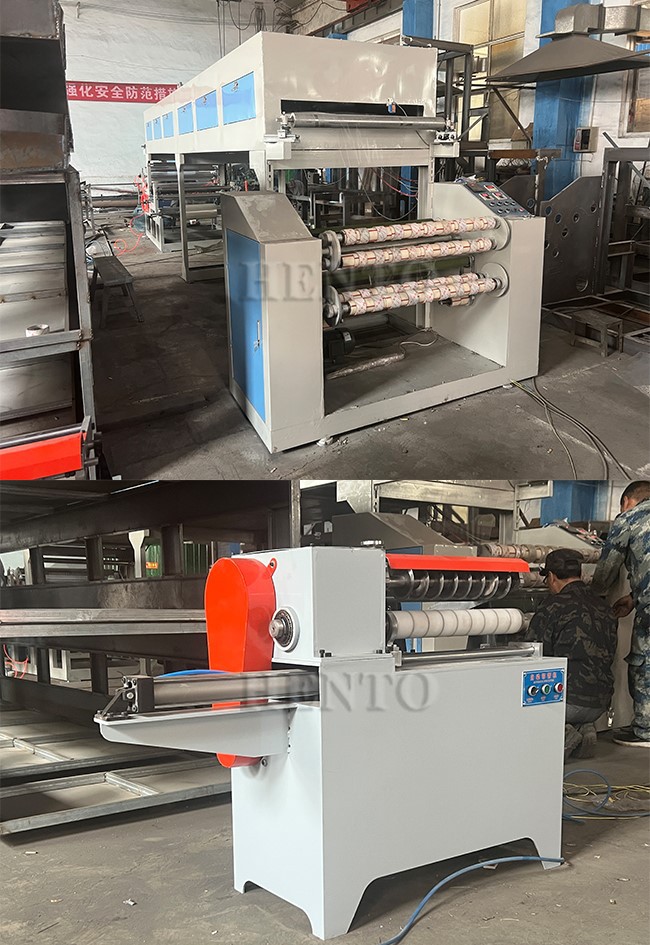

The Adhesive Tape Making Machine comprises several components: an unwinding section where jumbo rolls are mounted; a coating section that applies adhesives onto backing materials like film or paper; a drying section featuring ovens that dry coated adhesives; a rewinding section that rolls up smaller cores into compact sizes; and finally a cutting section equipped with devices that trim the tape into specified lengths while being rewound onto cores.

Technical parameter

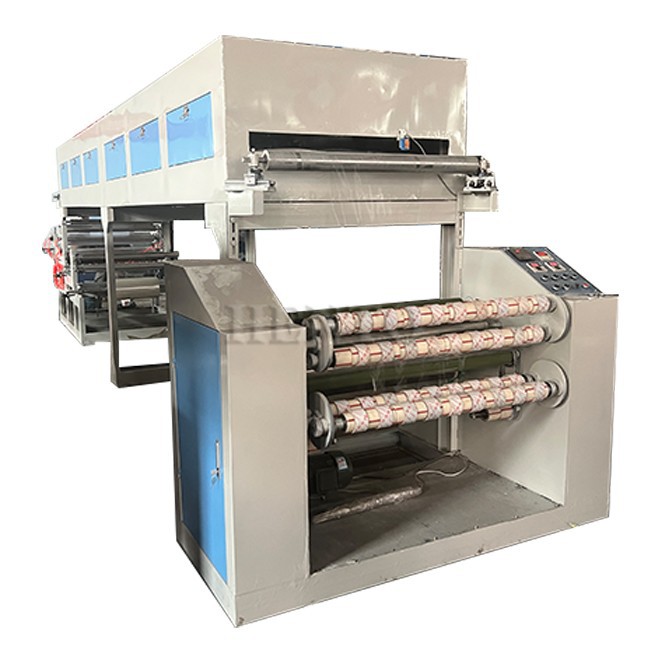

1) Coating machine (with tape cutting system)

Effective coating width	500/1000/1300mm
Roll width	550/1050/1350mm
Mechanical maximum speed	45m/min
Production speed	0m/min~50m/min
Maximum unwinding diameter	Φ600mm
Maximum winding diameter	Φ600mm
Retractable spindle shaft size	￠3" (inside diameter )
Maximum amount of glue	30g/m2(Dry glue)
Uniformity of coating	Dry glue≤±0.002mm
Heating and drying method	Electric heating (optional steam outside heating)
Temperature control	Highest100℃±5℃
Coiling edge neatly	End face neat error≤±3mm
Total mechanical power	Electric type 30KW/Steam type10kw(for 1000mm model)
Voltage	380V/50Hz or customer specified
Gas source	Compressed air 4~6kg/cm²
Heat source	Steam / electric heating

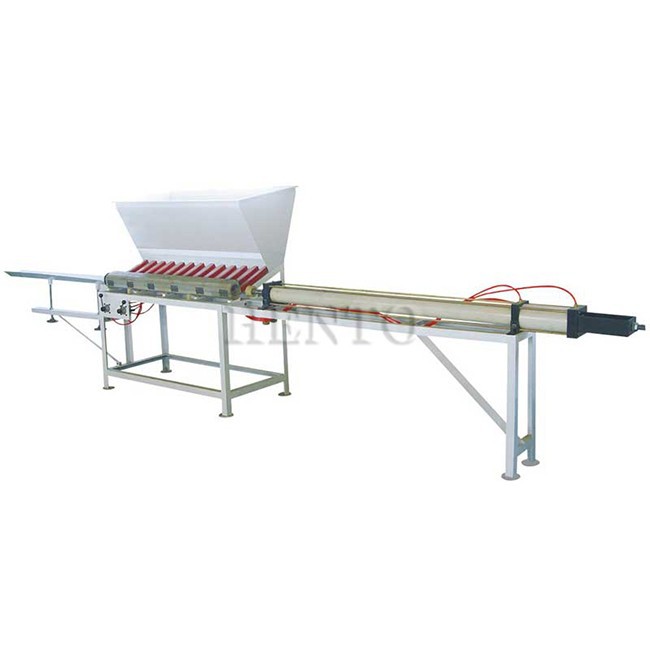

2) Pneumatic drawing machine

Specifications	1000mm/1300mm/1600mm
Working width	1000mm/1300mm/1600mm
Paper tube diameter	Φ76.2mm
The use of air pressure	5kg/cm2

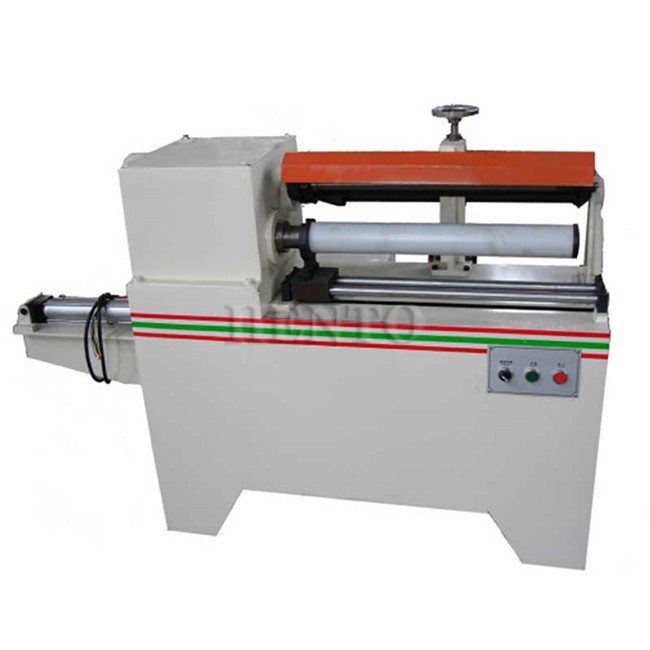

3) Pneumatic cutting machine

Maximum cutting pipe length	600mm
Paper tube diameter	76.2mm
Mechanical speed	0-1200 rev / min
Voltage	380V 50HZ
Motor Power	1.5KW

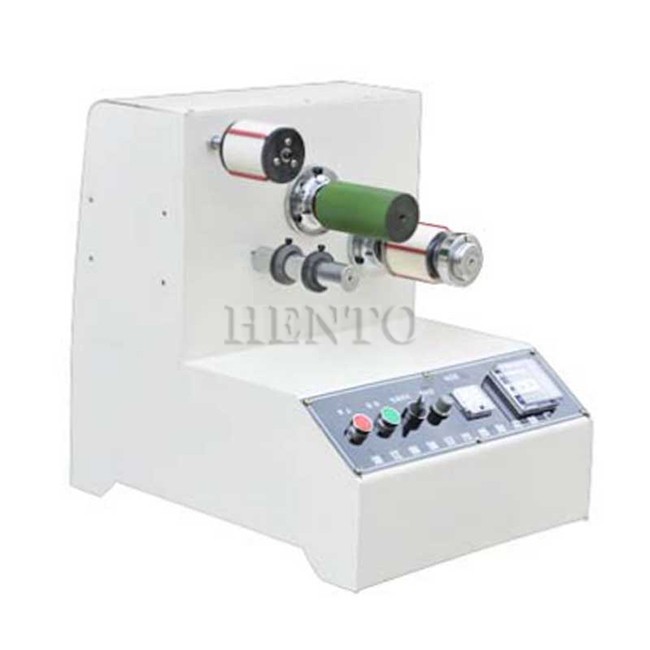

4) Rewinding machine

Maximum winding diameter	Φ300mm
Maximum take-width	100mm
Paper tube diameter	76.2mm
Rewinding Speed	100m/min
Input Power	1P, 220VAC, 1KVA

FAQ

Q: 1.What's the MOQ?

A: 1 set

Q: 2.Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3.What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Q:Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.
