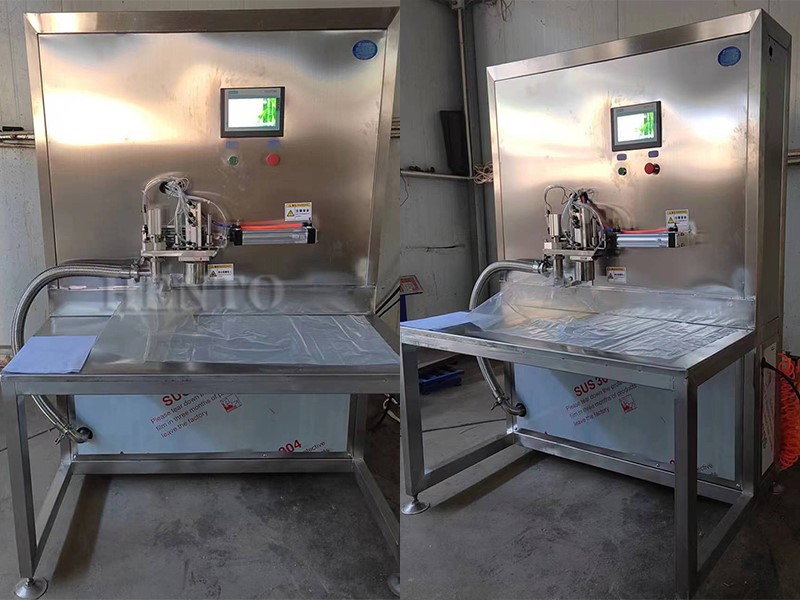

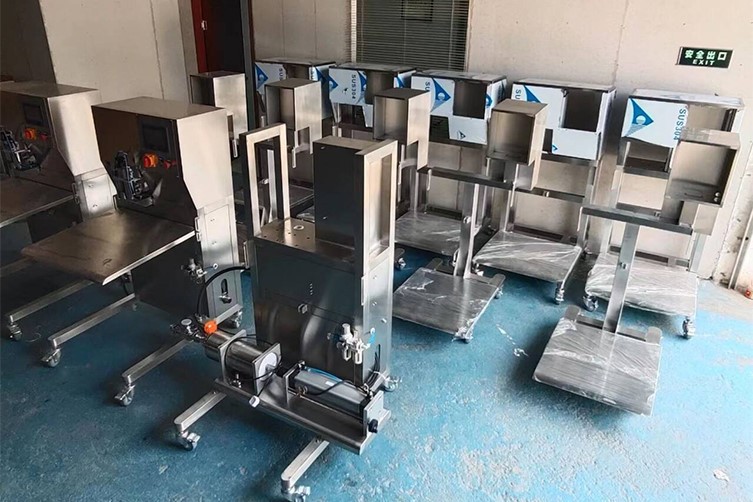

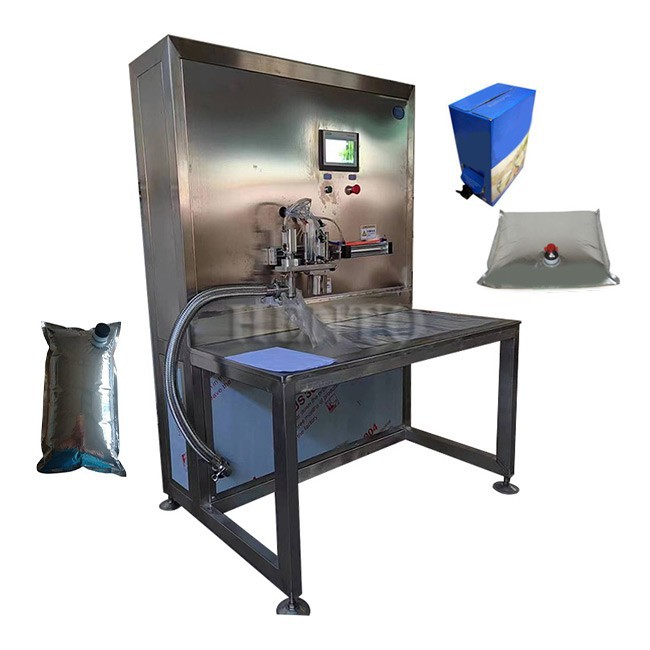

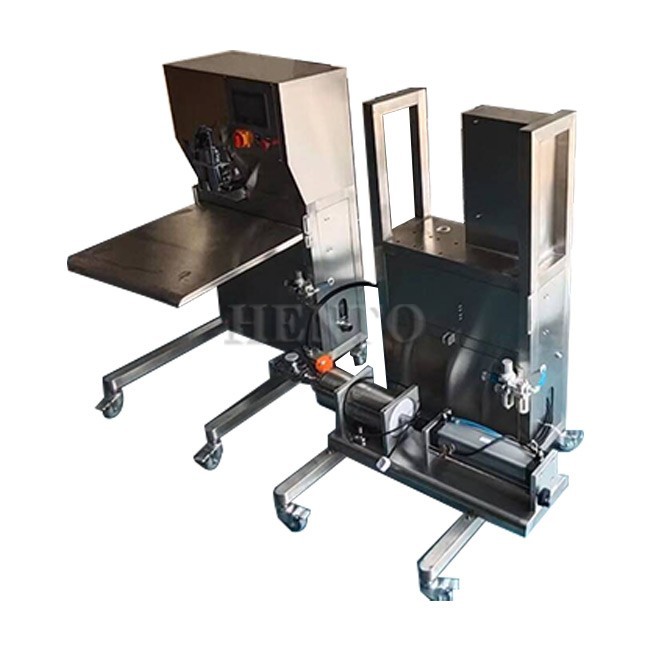

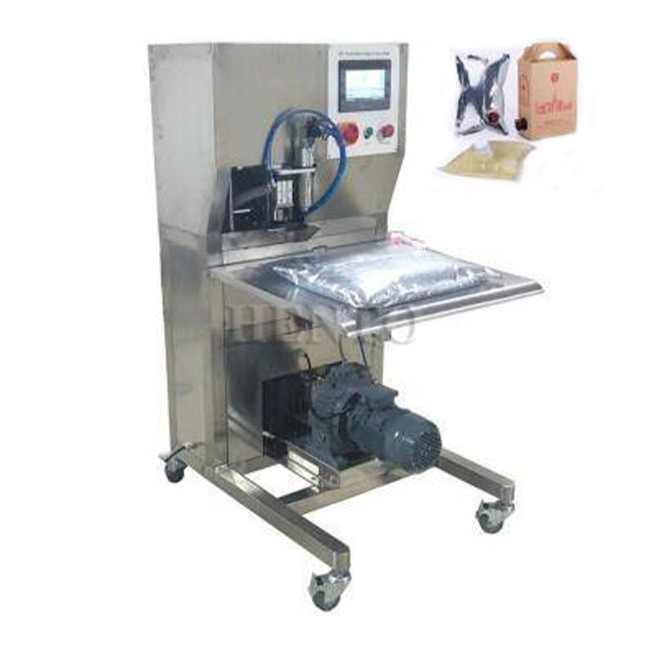

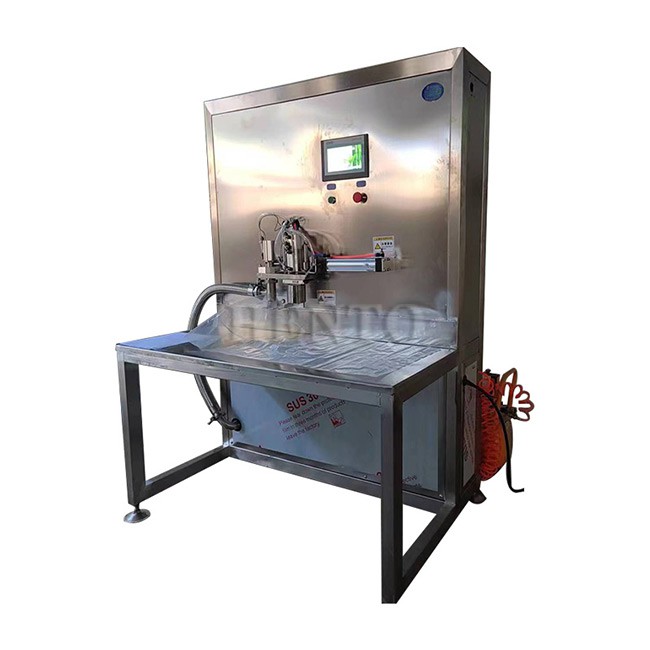

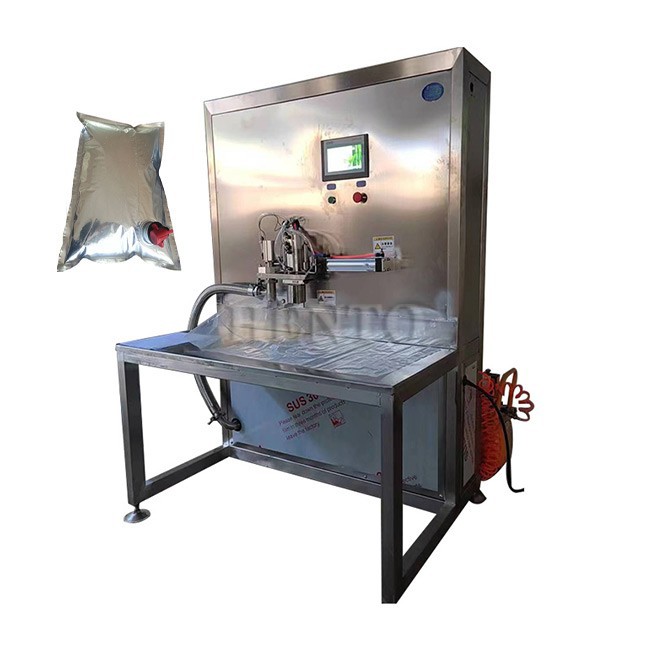

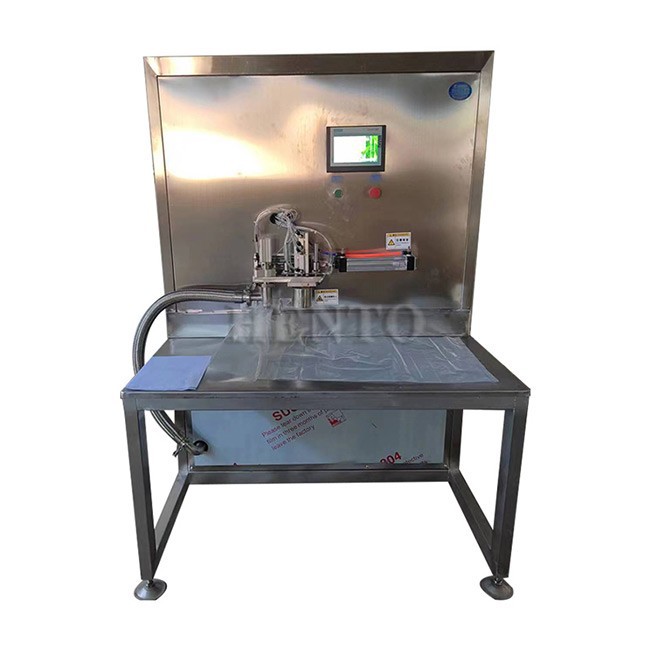

Bib Packaging Machine
We are always at your service when you need
The liquid flexible packaging filling machine assembly line can be simplified and combined according to the actual needs of users. The soft packaging filling machine is divided into fully automatic and semi-automatic soft packaging filling machines. Liquid bag transportation, boxing, sealing, and film coating can be done manually. If the batch size is not large, it can greatly save user investment costs.
The production line of flexible packaging filling machine consists of: flexible packaging filling machine host (filling), conveyor belt (liquid bag conveying), packing device, sealing machine, film coating device (outer packaging box film coating), and heat shrink machine.
product parameters
|
Model number |
HT-DYG5 |
|
Filling accuracy |
±0.5% |
|
Power rate |
≤0.10 KW |
|
Power supply voltage |
AC220V/ 50-60Hz |
|
Air consumption |
0.4m³/min |
|
Filling range |
1-5L (filling 10 liters takes two times, and so on) |
|
Filling accuracy |
±0.5% |
|
Liquid material inlet pressure |
≤0.3 ~ 0.35mpa |
|
Working pressure |
0.4 ~ 0.6mpa |
|
Dimensions |
1200*1000*1500mm |
The working program of the Bib Packaging Machine
Bag placement → Machine capping → Filling → Automatic capping → Bag placement again for the next filling.
Products that have been filled: conveyor belt to the packing area for packaging → automatic sealing → automatic film coating → heat shrinkage.
Put the bag again for the next filling.
The method of transporting liquids in the Bib Packaging Machine
The infusion method is pumping, without the need for a high-level tank to provide pressure drop. The two filling heads are independent control systems, and one failure does not affect the normal operation of the other.
On site liquid verification is possible, and users can verify the filling accuracy themselves. Any errors can be adjusted in a timely manner.
It can be combined with automatic sealing machine, automatic film coating machine, and heat shrink machine to form an integrated production line for filling, sealing, and film coating.
FAQ
Q: 1.What's the MOQ:
Q: 2. Can the machine be customized?
Q: 3.What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 12.What about After-sales service?
Online support ;
Field installation, commissioning and training;
