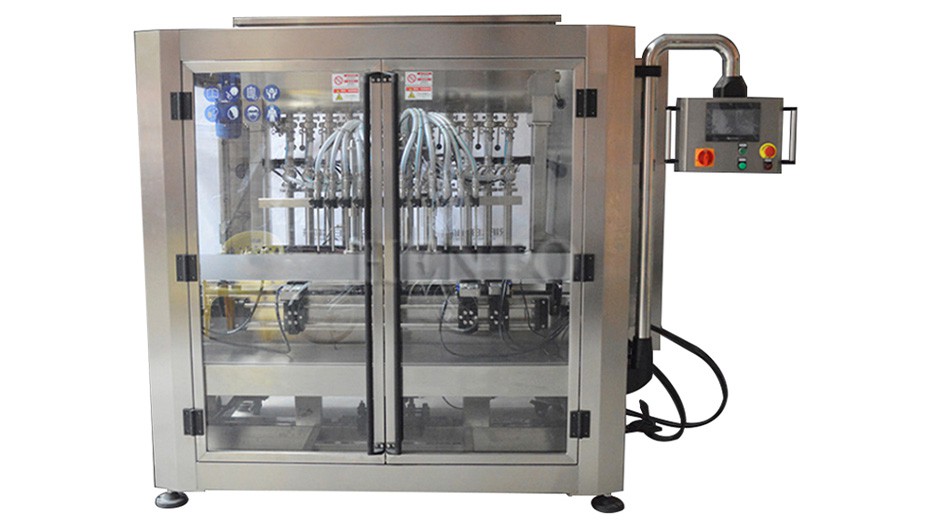

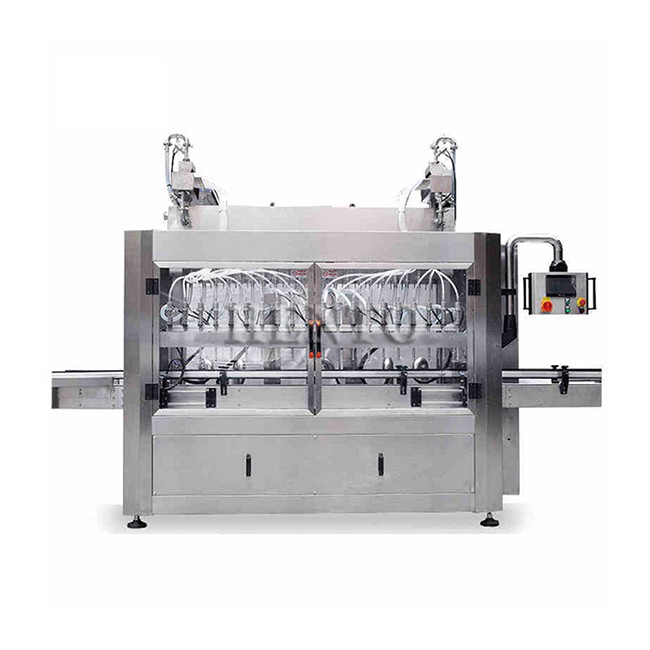

Automatic Water Bottle Packing Machine
Automatic Water Bottle Packing Machine
Automatic Water Bottle Packing Machine uses the working principle of piston quantitative filling. The automatic filling value is set through PLC, and then the machine is turned on, so that the automatic filling of flowing liquids such as water and oil can be completed. In addition, the equipment is equipped with an anti-drip setting, which has a good sealing effect.
Features and Advantages of Automatic Water Bottle Packing Machine
The purpose of the Automatic Water Bottom Packing Machine is:
Quantitative filling, suitable for water, Baijiu, laundry detergent and other products
The seals of the Automatic Water Bottle Packing Machine are made of silicone rubber and fluororubber (with the functions of wear resistance, high temperature resistance, acid and alkali resistance, and corrosion resistance).
Products Description
|
Model |
HT-GZL6L |
HT-GZL8L |
HT-GZL10L |
HT-GZL12L |
HT-GZL14L |
|
Capacity |
30bph |
40bph |
50bph |
60bph |
70bph |
|
Filling Accuracy |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Voltage |
220v/1kw |
220v/1.2kw |
220v/1.2kw |
220v/1.5kw |
220v/1.5kw |
|
Filling rate |
50-1000ml |
500-2000ml |
1000-3000ml |
2500-4000ml |
3000-5000ml |
|
Air pressure |
0.5-0.7mpa |
0.5-0.7mpa |
0.5-0.7mpa |
0.5-0.7mpa |
0.5-0.7mpa |
|
Weight |
450kg |
500kg |
550kg |
600kg |
700kg |
FAQ
1.Q: Which port do you send the goods from?
A: Shanghai, Qingdao, Shenzhen or other port.
2.Q:How long is the warranty of the machine?
A:two years warranty
3.Q:how to buy this machine?
A:you could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
4.Q:What about the package?
A:Usually we will use the standard export wooden case.
5.Q:Are you manufacturer or trading company?
A:We are professional manufacturer of this machine,and we have manufactured this machine for more than 10 years.
6.Q:Do you need a supplier to provide transportation?
A：If need we ship help you,pls leave your details adress include zip code.
7.Q:Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
8.Q:What about Pre-sale service:
A: Support voltage changing service as your demand;
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
