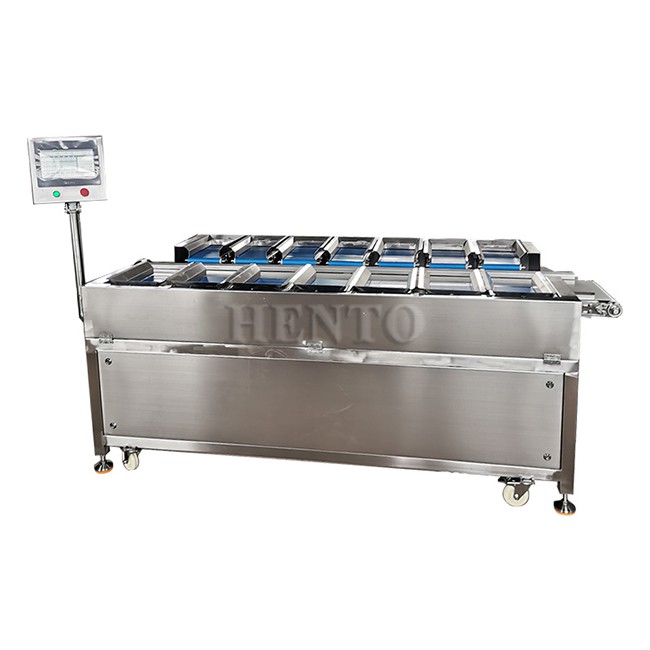

Linear Combination Weigher
Product Introduction
Linear Combination Weigher is widely used in various industries and achieves synchronous measurement through the use of microcomputer systems. For small scale quantitative packaging, the machine requires high measurement accuracy and the best calculated value that is close to or slightly greater than the calibration value as the output of the material.
The conventional quantitative packaging scale is a single unit scale, which can barely perform quantitative weighing on uniform and small granular materials. However, the packaging speed is as fast as 15-30 bags/min. However, for uneven items such as sugar blocks, dried fruits, potato chips, etc., if weighed using a single unit scale, both the accuracy and speed of weighing are difficult to meet production requirements.
product parameters
Linear Combination Weigher
The Linear Combination Weigher based on combination weighing technology can effectively improve measurement accuracy and speed, and solve the problem of measuring and packaging uneven items. Computer combination scales are divided into 8, 10, 14, 16, 20, 24, and 28 according to the number of hopper heads, with the more commonly used ones being 10 and 14.
Linear Combination Weigher is an intelligent combination type quantitative automatic packaging scale in the weighing industry. The combination weighing technology meets the needs of large-scale production, expands the weighing function and application range, and adds new content to the concept of weighing.
Operation process
The material falls into the transverse hopper of the combination scale through the elevator
Is vibrated by the vibrating machine to evenly distribute the product onto the linear feeder tray on the conical funnel.
When there is no material in the cross cutting hopper or there is not enough material, it will be detected by the horizontal photoelectric detector, and then send a feeding signal to the conveyor through the main board to add material.
The material is vibrated by a linear feeder, and the product is delivered to each buffer hopper through amplitude and vibration time.
Then the driving device, namely the stepper motor, operates and opens the buffer hopper to deliver the material into the weighing hopper.
The working principle of Linear Combination Weiger
In the weighing hopper, the product generates a weight signal through sensors, which is then transmitted to the main board of the control equipment through leads. The CPU on the main board reads and records the weight of each weighing hopper, and then selects the combination weighing hopper that is closest to the target weight through calculation, analysis, and combination. When the CPU receives the allowable discharge signal from the packaging machine, it sends a command to start the driver to open the collecting hopper and unload the product to the packaging machine, And send a packaging signal to the packaging machine.
FAQ
Q: 1.What's the MOQ:
Q: 2. Can the machine be customized?
Q: 3.What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 12.What about After-sales service?
Online support ;
Field installation, commissioning and training;
