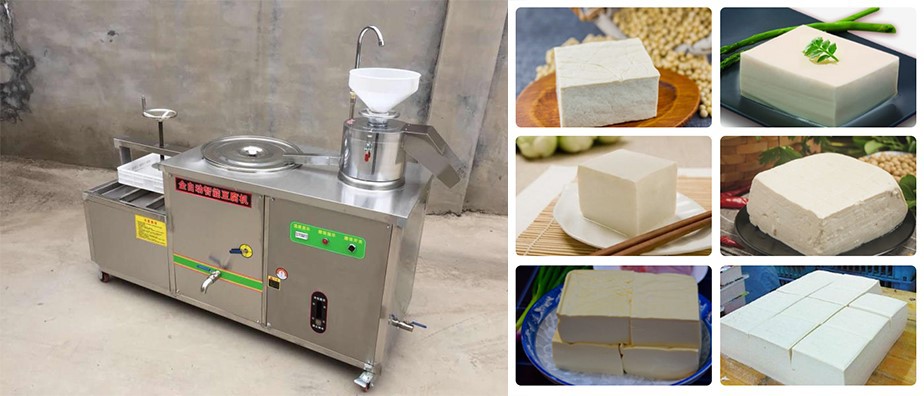

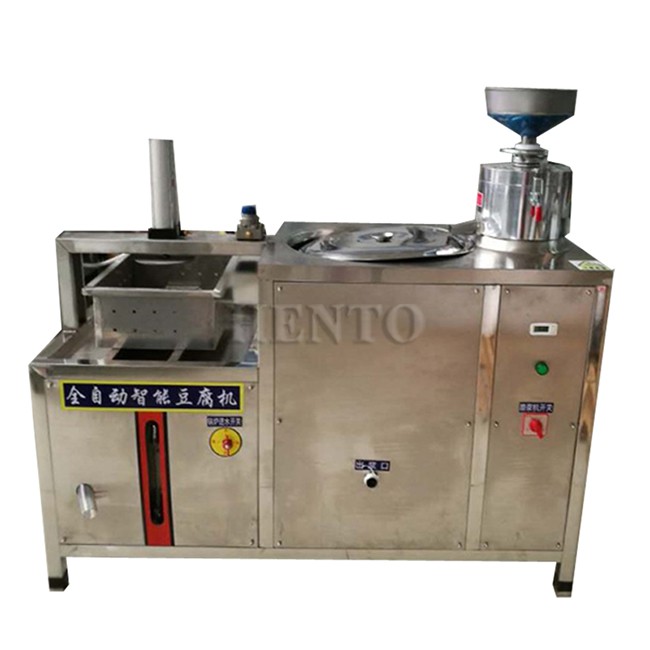

Automatic Tofu Maker
2. Equipped with a pneumatic double press molding machine, it is pressed into tofu.
Grinding
The Automatic Tofu Maker uses the world's health requirements of high-quality stainless steel, excellent quality, small footprint, simple installation, advanced technology, a device only one person to operate, save, save labor and labor.
Before grinding, check whether the water level of the steam drum reaches the highest level on the liquid level gauge. Pay special attention to the need to immediately replenish water to the highest level when the water level on the liquid level gauge drops to the lowest level line.
Press the pulping switch, the indicator light is on, rotate the water inlet grinding valve, adjust the amount of water for pulping. The amount of water is appropriate to the extent that the soybean dregs discharged from the slag outlet are loose and do not contain milk.
Put the soybeans into the hopper for pulping until the soybean milk in the boiling barrel reaches the highest mark in the barrel; soybean milk shall not exceed the mark of the maximum boiling amount. Generally, the boiling amount should be 2/3 of the barrel volume.
Steaming and milking
Close the lid of the milk boiling bucket.Set the boiling temperature to 105 ℃, press the heating switch, and the heating indicator light will light up.
When the soy milk temperature reaches the set value, the power will be automatically cut off, and the heating indicator light will be off. Stop heating, and the soy milk will be produced.
When discharging soy milk, there will be a large amount of steam sprayed out. It should be slowly opened to avoid burns.
Put the seasoning into the milk storage bucket in proportion, place the container under the milk outlet, and slowly open the milk outlet valve to discharge the milk.

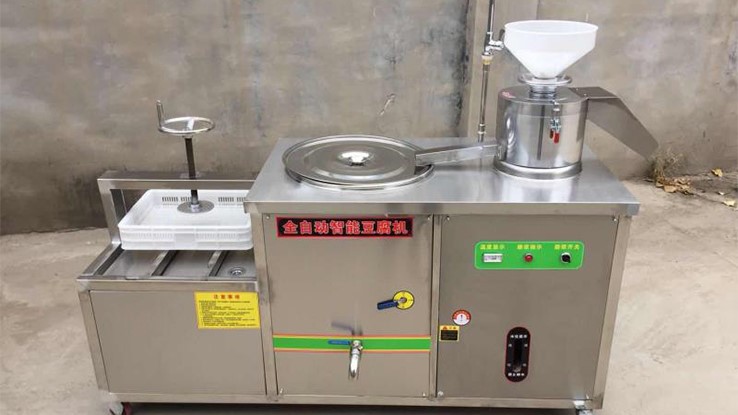

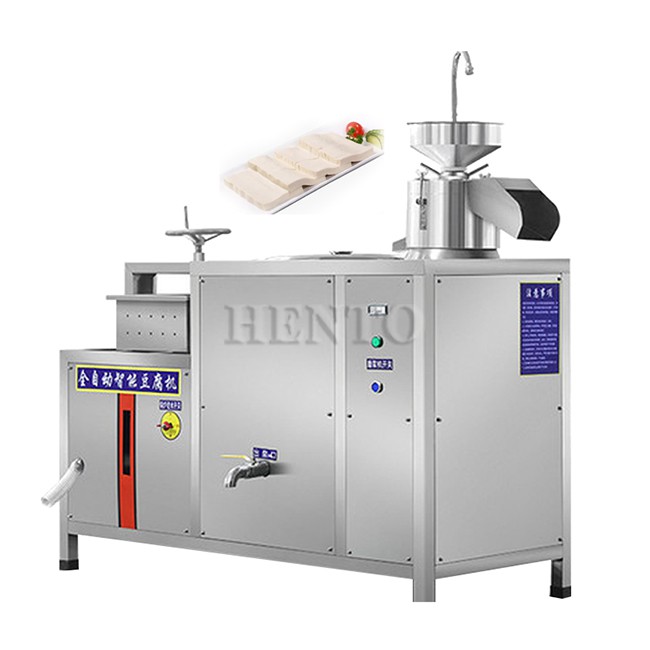

Automatic Tofu Maker
After the soy milk is stored in automatic tofu maker, clean according to the following requirements.
Grinding machine
Open the grinding cover, clean the residue, and wipe the inner shell of the grinding machine with a trace of water and a cloth. It is strictly prohibited to rinse directly with water. After washing, restore the grinding machine and hopper, press the grinding machine switch and the inlet water valve to grind for 1-2 minutes.
Boiling barrel and steam pipe inside the barrel
Remove the steam pipe, drain water to clean the slurry barrel, unblock the small holes on the steam pipe, clean and install it. Attention must be paid to unblocking the small holes on the steam pipe during each cleaning.
Shutdown
After completing the above tasks, turn off the power switch, close the milk outlet valve, and enter the grinding machine Water valve, inlet valve, open drain valve.
comparison of product parameters
|
Model |
HT-DFJ60 |
HT-DFJ100 |
HT-DFJ200 |
HT-DFJ300 |
|
Voltage |
220V |
220V |
220/380V |
220/380V |
|
Mode |
manual/pneumatic |
manual/pneumatic |
manual/pneumatic |
pneumatic |
|
Power |
12+1.1kw |
12+1.1kw |
12+1.3kw |
12+1.5kw |
|
Capacity |
30kg/h |
50kg/h |
80kg/h |
130kg/h |
|
Dimension(mm) |
600*1300*1200 |
800*600*1350 |
600*1100*1300 |
600*1750*1300 |
|
Weight |
100kg |
150kg |
180kg |
220kg |
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service?
Q: What about After-sales service?
