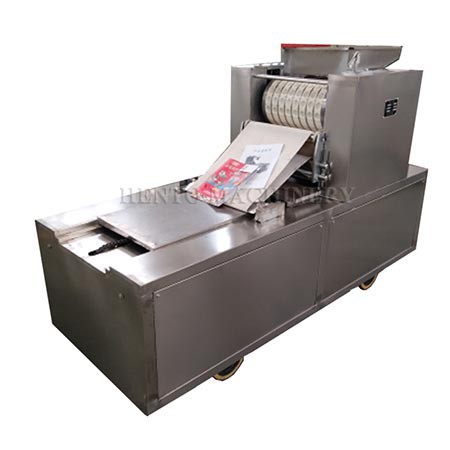

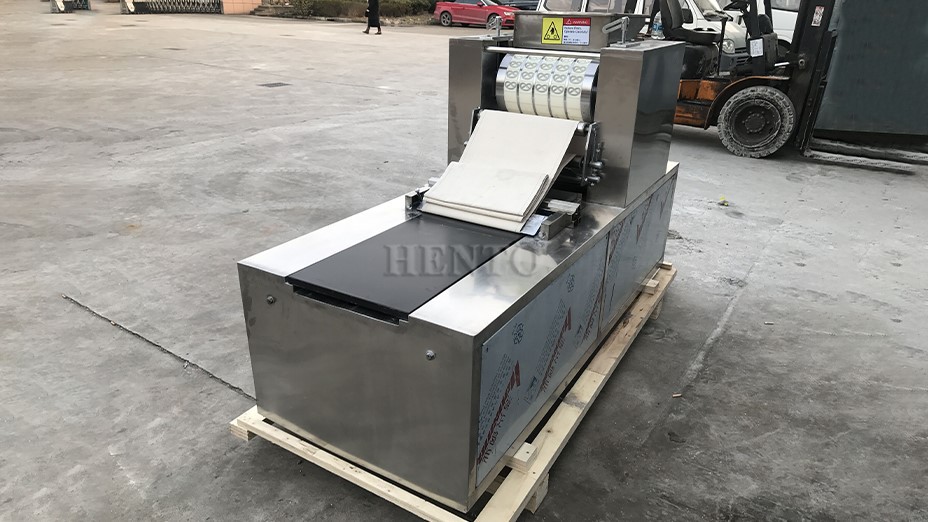

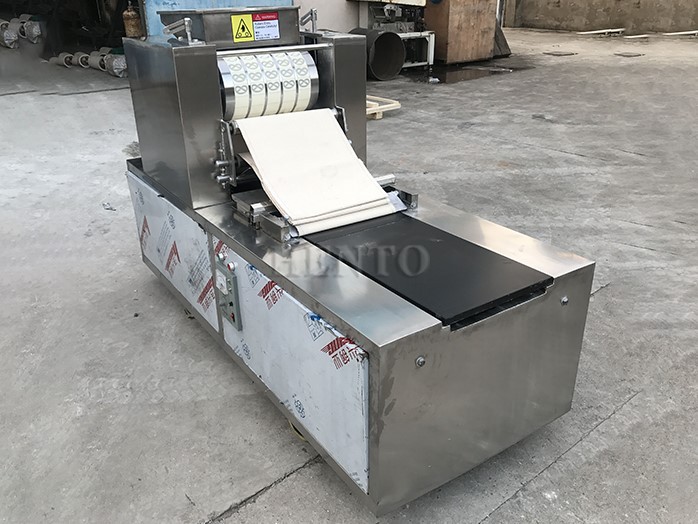

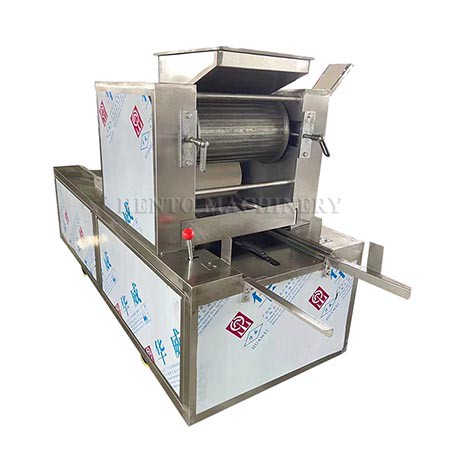

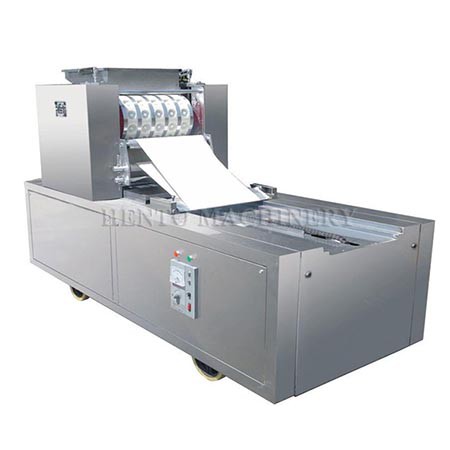

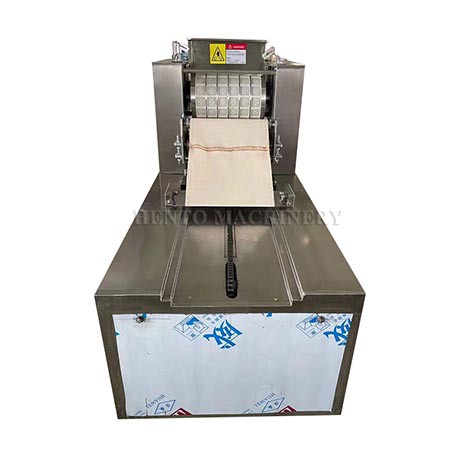

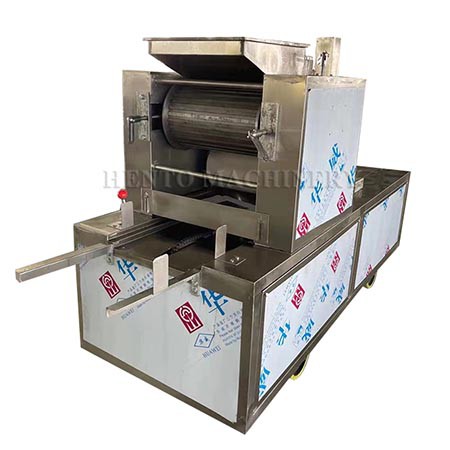

Walnut Cookie Machine
2. Walnut Cookie Machine can produce crispy biscuits of various designs and colors. There are many models, which can be customized according to customer needs
3. The machine structure is simple, and the split blade is equipped with an adjustment device, which can adjust the blade to the best position
Machine Introduction
The walnut cookie machine is a specialized equipment for peach pastry production, designed in accordance with market demands and in combination with the manual production techniques of peach pastries.
The walnut cookie machine is used for roller printing of peach pastry cookies or cookies, and demolding and forming of crispy cookies. The peach pastry special machine rolls the dough that has been prepared by the flour mixer into various shapes and different grams of biscuits.
Company profile
The structure of the peach pastry special machine is simple, and the separation knife device has an adjusting device that can be adjusted to the appropriate position. The roller printing roller is specially designed to overcome the uneven wear of the separation blade, and the flower roller is taken out to a near vertical position for easy replacement. The peach pastry special machine is divided into disc type hot air rotary oven baking and tunnel furnace direct baking.
This machine can be used for tunnel-type steel (mesh) belt ovens, tunnel-type chain ovens, tunnel-type hand-pushed ovens, and hot air rotary ovens.
This walnut cookie machine is composed of two major parts: the mold forming system and the pallet chain conveying system. Both are driven by speed-regulating motors, and the production speed can be adjusted.
01
The forming system is equipped with feeding rollers, mold rollers and rubber rollers. The prepared fabric is put into the hopper.
02
Through the feeding and squeezing of the feeding rollers and mold rollers, it is formed into peach pastry bad material.
03
Then, the raw material is conveyed to the baking tray by the canvas belt pulled by the rubber rollers.
04
The tray chain is driven by a speed-regulating motor. The spacing of the peach pastry blanks on the flat tray can be determined according to production needs.
Customized as you want
This walnut cookie machine is also equipped with multiple adjustment mechanisms in its structure:
The canvas tensioning deviation adjustment mechanism;
Left and right as well as up and down adjustment mechanisms for the facet knife;
Canvas stain cleaning and scraping mechanism Feeding gap adjustment mechanism, etc.
comparison of product parameters
|
Model |
HT-HQ400 |
HT-HQ600 |
|
Capacity |
200-250 kg/h |
450KG/H |
|
Voltage |
220v, 50Hz |
220v ,50hz |
|
Power |
1.5kw |
3kw |
|
Pan size |
600*400mm |
400*600mm |
|
Machine size |
2100*950*1350mm |
2500*1100*1350mm |
|
Weight |
650kg |
1000kg |
|
Impression Rod Diameter |
248mm |
248mm |
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
Q: What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service?
Q: 12.What about After-sales service?
