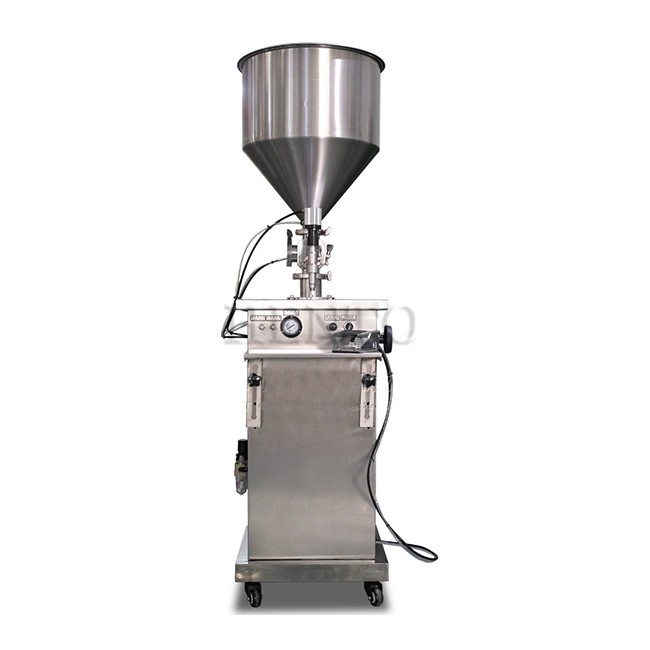

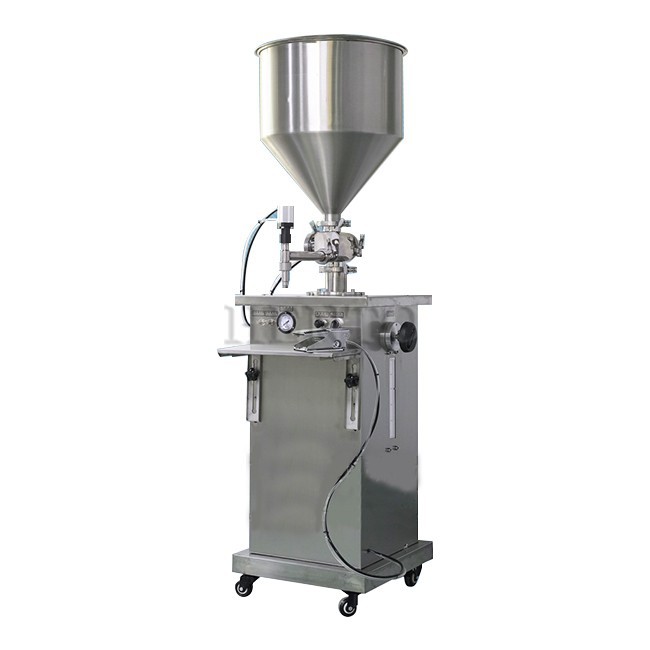

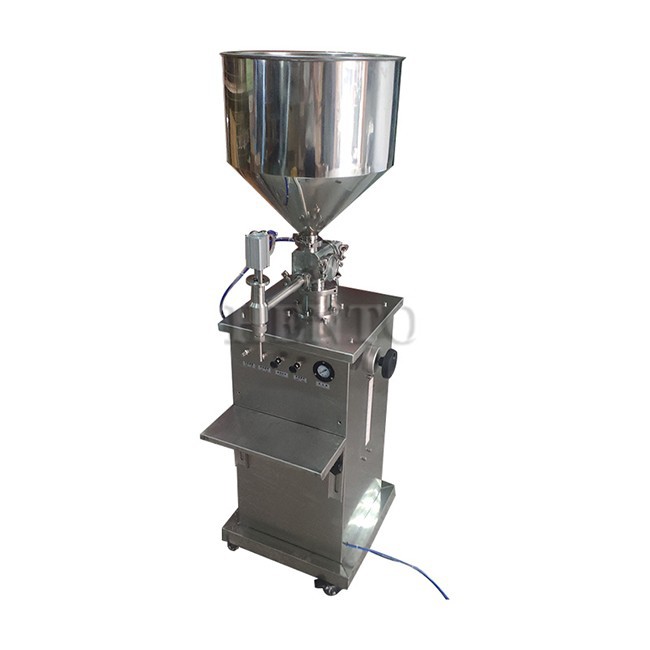

Vertical Paste Filling Machine
Scope of application: Liquid/paste: detergent, rice wine, soy sauce, juice, beverage, ketchup, peanut butter, jam, chili sauce, etc.
It is simple to operate, efficient, and ensures accurate filling.
Vertical Paste Filling Machine
The advantages of Vertical Paste Filling Machine include the ability to fill products at high speeds while maintaining consistent accuracy. This feature not only saves time but also ensures that the product is filled to the desired level, reducing waste and ensuring product quality.
1. Compact and firm structure, reasonable and simple design.
2. Adopt photoelectric control system, stepper motor film pulling, high reliability, stable performance and low noise.
3. Adopt frequency conversion control, more stable operation, lower noise and low failure rate.
4. The machine can complete automatic metering, filling, date printing and product output at one time.
5. Adopt spring pressure knife principle, pneumatic cutting, five packs are more stable.
product parameters
|
Model |
HT-PZ160 |
|
Film width |
320 mm |
|
Length of the bag |
30-200 mm |
|
Width of the bag |
50-150 mm |
|
Measuring range |
50-250 ml |
|
Packing speed |
30-30 bags/min |
|
Coil diameter |
Max.300 mm |
|
Packaging film thickness |
0.04-0.08mm |
|
Power |
220V/50Hz/2kw |
|
Weight |
350 kg |
|
Packaging materials |
OPP/CPP.OPP/CE.MST/PE/PET/PE |
|
Dimensions (L* W *H) |
1000 *700 * 1620mm |
|
Metering system |
Piston type |
To operate the Vertical Paste Filling Machine
The operator first sets the desired filling volume and speed on the machine interface.
The product is then poured into the machine hopper, and the machine is started.
The product is then filled into the container or tube as the piston moves up and down, controlled by the air pressure.
Once the desired volume is filled, the container is automatically ejected from the machine, and the process repeats.

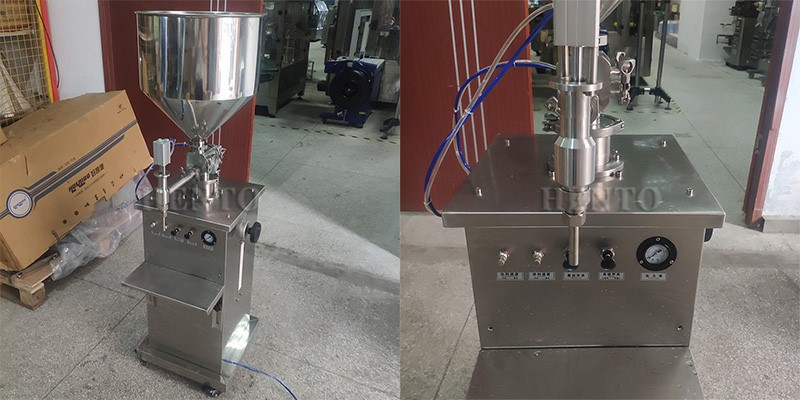

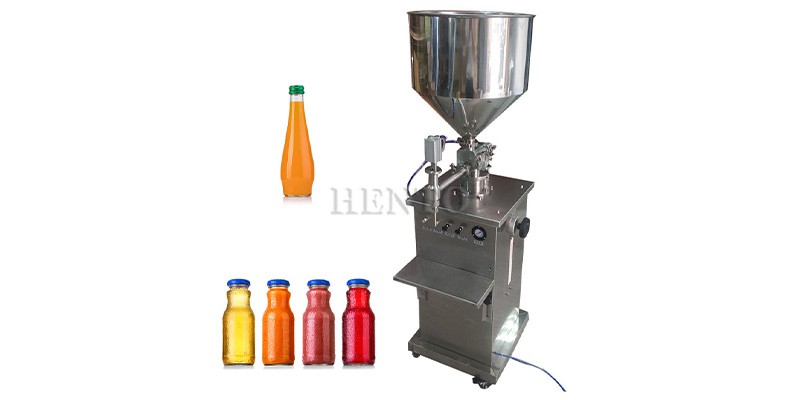

Vertical Paste Filling Machine
working principle
The working principle of the Vertical Paste Filling Machine is basically the same as other filling machines. This machine is completely controlled by compressed air and does not require power supply. It is especially used in explosion-proof environments and has high safety. Due to pneumatic control and pneumatic special three-way positioning, it has high filling accuracy, controlled within 1‰; it is simple and easy to operate; and the failure rate is low.
summary
Overall, the Vertical Paste Filling Machine is a highly efficient and accurate tool that is widely applied in the manufacturing industry. Its advantages and ease of operation make it an essential tool that helps increase productivity and reduce costs.
FAQ
Q: 1.What's the MOQ:
Q: 2. Can the machine be customized?
Q: 3.What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service:
Support logo customizing ;
Provide good solution for your project ;
Testing and debugging before delivery ;
Q: 12.What about After-sales service?
Online support ;
Field installation, commissioning and training;
