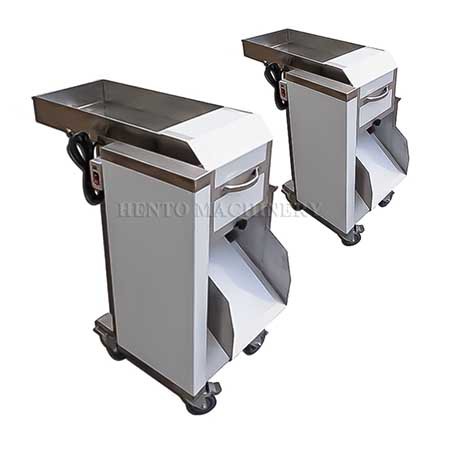

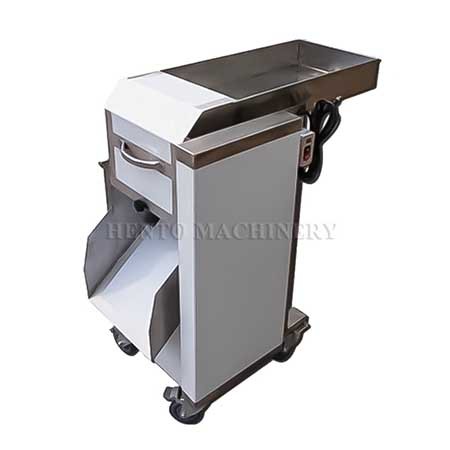

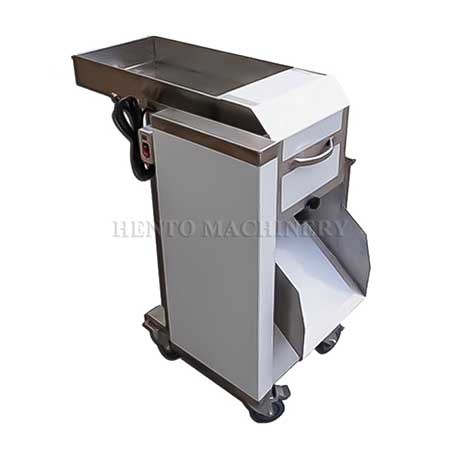

Squid Fish Cutting Machine
video

Squid Fish Cutting Machine

The Squid Fish Cutting Machine can be used for cutting various products such as squid, duck gizzard, chicken gizzard, steak, cuttlefish, sheep treasure, pork belly, etc. Different flower shapes such as rhombus flowers and square flowers can be cut
Send Inquiry
Product Introduction
Product Introduction


The squid Fish cutting machine is widely used in industrial catering, food processing, and supermarkets. The squid cutting machine is used for large-scale cutting and processing of squid, eliminating the stress and labor-intensive tasks associated with manual squid cleaning and cutting. The squid cutting machine can also be used in seafood processing plants, where large amounts of squid are processed regularly.

The squid fish cutting machine works by a combination of cutting and conveyor system. The squid is fed into the machine through an inlet, and the machine's motor starts rotating the blades. The blades, which are made of high-quality stainless steel, are designed with a specific edge profile that can cut through squid flesh quickly and efficiently. The squid is then moved along the conveyor system and cut into desired sizes and shapes.

The conveyor system in the squid fish cutting machine is designed with adjustable speed controls that allow the operator to control the speed at which the squid moves through the machine. The conveyor system is also fitted with sensors that detect any changes in the squid's movement and can adjust the machine's operation accordingly.

Squid Fish Cutting Machine is composed of frame, driving mechanism, feeding hopper, flower cutting knife group and other parts. After thawing, head removal, scale removal, and slice, the squid are directly put into the hopper of the cutting machine. The surface of the squid is cut into beautiful shape

The whole Squid Fish Cutting Machine is made of stainless steel, and the knife set of the flower cutting machine is made of stainless steel with high wear resistance, which meets the food hygiene standards.

The depth of cut flowers is adjustable, the cutting speed is very fast, the output is large, the production efficiency is high, and the manpower is greatly saved.

The blade is made of a round knife made of special high-quality material, which has a good cutting effect, and the knife is very convenient to clean, easy to clean, and has no residue. The machine is easy to operate, stable in performance, safe and reliable. It is suitable for use in aquatic product processing plants, meat product plants, and large-scale catering industries.

The cutting thickness of the flower cutting machine is adjustable, and the adjustment is very convenient and fast.


Technical Parameter


Model

HT-Y500

Voltage

220V/380V

Power

1.5kw

Capacity

500-800kg/h

Feeder size

280*30mm

Weight

146kg

Machine size

900*490*1010mm


Product Pictures


squid cutting machine
