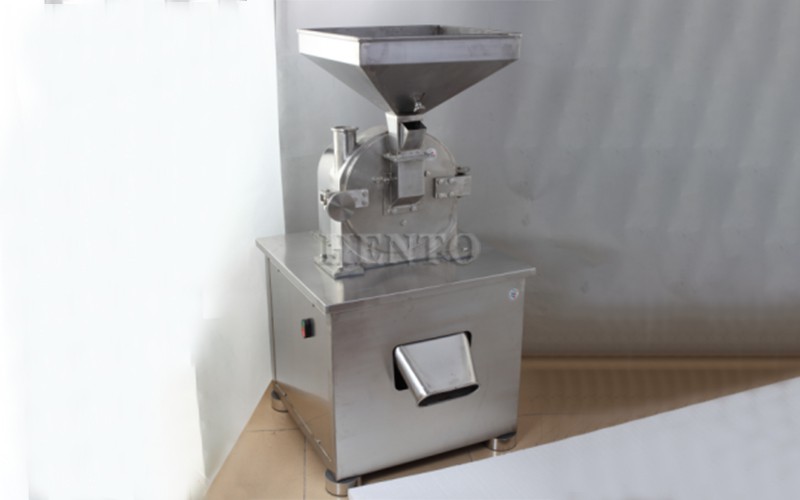

Spice Powder Grinding Machine
2. The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing a mesh screen with different apertures.
3. Made of stainless steel, there is no dust flying during the production process, and it can improve the material recovery rate and reduce enterprise costs.
Machine Introduction
This machine utilizes the high speed relative movement between the movable toothed disk and the fixed toothed disk, so that the material to be crushed obtains crushing through the combined effects of the impact of the toothed disks, friction and the impact among the materials themselves. This machine has a simple structure, is sturdy, runs smoothly and has a good crushing effect. The crushed material can be directly discharged from the grinding chamber of the main engine, and the particle size can be obtained by replacing screens with different pore sizes. In addition, this machine is made of stainless steel. The inner wall of the machine shell is fully machined to achieve a smooth surface, which changes the phenomenon of rough inner walls and powder accumulation in previous models.
hine principle
01
The machine has a dual chamber crushing chamber: the first phase crushing; The second fine grinding, screen filtration control fineness. Dust removal methods of this machine: crushing machine, dust removal type pulverizer, dustless automatic blanking pulverizer, cyclone dust removal automatic blanking pulverizer, etc. This grinding mill has a smooth surface, good toughness, mechanical strength, corrosion resistance and high plasticity. It is widely applied in the food, petroleum, chemical, bridge, textile, printing and dyeing, machinery, hardware and medical industries.
02
The working principle of the crusher is that the high-speed rotation of the gear disc causes the materials to collide and rub against each other, generating frictional heat. As a result, the temperature inside the crushing disc and the box becomes too high. Heat-sensitive materials may soften and stick to the disc when exposed to heat. To address these issues, we will design specifically for each material. We can configure a crushing disc cooling device, a cold air negative pressure device, a toothed disc angular friction device, etc.
03
As the crusher is a high-speed rotating device and the inlet and outlet of the crusher are open, a large amount of dust is generated during the crushing process. It can be equipped with relevant supporting equipment such as a crushing and dust removal integrated machine, an automatic closed feeding device, and an automatic discharging device.
comparison of product parameters
|
Model |
HT-MF50 |
HT-MF200 |
HT-MF250 |
|
Capacity |
30-50kg/h |
10-120kg/h |
40-200KG/h |
|
Power |
3kw |
3kw |
5.5kw |
|
Voltage |
220v |
220/380 |
380 |
|
Dimension |
750*350*520mm |
510*450*900mm |
510*450*900mm |
|
Weight(Kgs) |
70 |
100 |
250 |
FAQ
Q: What is Foreign Trade-Express?
A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacture, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We receive the T/T, Western union or Alibaba Trade Assurance Payment, ect.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Except sea, air, express, sea to the door is no problem.
Q: How to send the goods to customer?
A: The goods will be sent to you by sea, by air or by train. We can send the goods according to your need.
Q: Which port do you send the goods from?
A: Shanghai, Qingdao, Shenzhen or other port.
Q: How long is the warranty of the machine?
A: Two years warranty
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice.
Q: What about the package?
A: Usually we will use the standard export wooden case.
Q: Are you manufacturer or trading company?
A: We are professional manufacturer of this machine,and we have manufactured this machine for more than 10 years.
Q: Do you need a supplier to provide transportation?
A: If need we ship help you,pls leave your details address include zip code.
Q: Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service?
A: Support voltage changing service as your demand; Support logo customizing; Provide good solution for your project; Testing and debugging before delivery;
Q: What about After-sales service?
A: Video technical support; Online support ; Field installation, commissioning and training;
