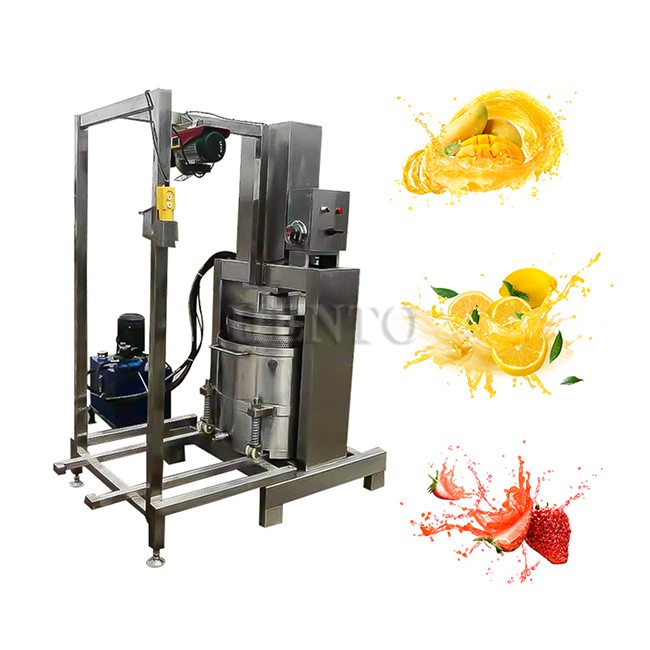

Pressing Machine Fruit

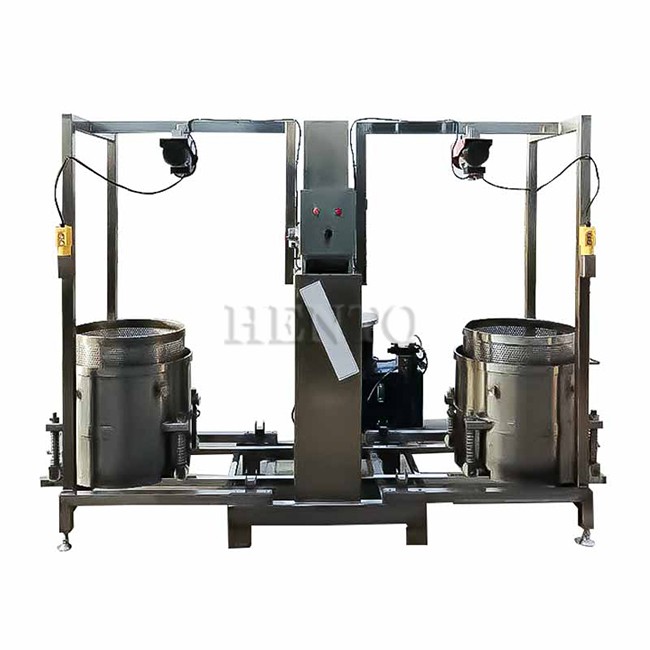

Generally speaking, you can use a single barrel press to dehydrate pickles, dried radishes, pickles, sauerkraut and other pickles 1.If you want to use a single barrel press, you can choose a double barrel press if the output is large.
2.If you want to press various juices, fruit wines, etc., you can choose a single barrel plus a juice collection barrel.
3.If the output is large, choose a double barrel plus a juice collection barrel.
Main features of the Pressing Machine Fruit
The hydraulic press vertical double-barrel rotating press adopts a shaftless screw, a small contact surface with the material, and low friction, which can improve the extrusion efficiency. And there is no blockage or entanglement;
01
The equipment is made of stainless steel, with high strength, good corrosion resistance and long service life;
02
The drive device adopts a shaft-mounted direct drive method, which runs smoothly and reliably and saves energy;
03
The outlet is equipped with a spring baffle to increase the extrusion force and improve the dehydration rate;
04
Except for the inlet and outlet, the rest adopts a sealed structure, and the use environment is clean and hygienic.
05
Application for pressing machine fruit

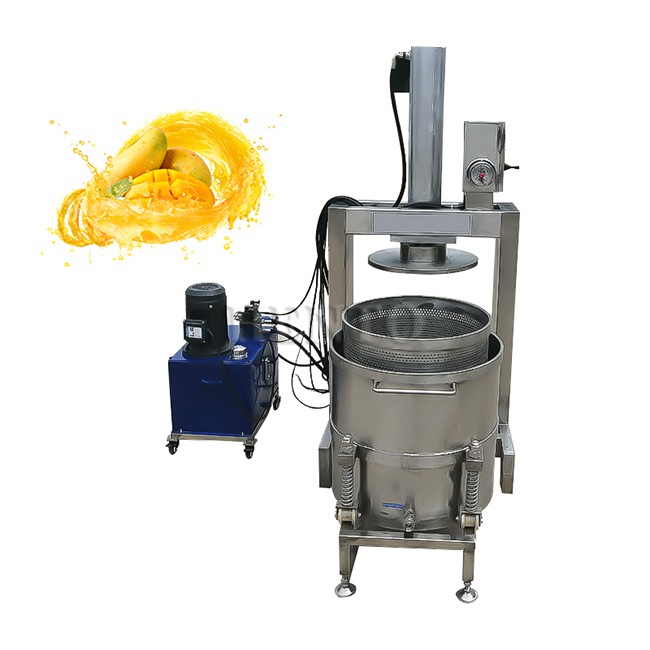

The advantages of the pressing machine fruit are high pressure and large tonnage. We can design the size of the equipment you need according to your output and determine the tonnage according to the material.The hydraulic press is made of a frame, oil cylinder, pressure oil pump, gland, motor, oil tank, and barrel etc. The base, gland, and barrel are made of 304 stainless steel, which is durable and easy to clean. The press has a wide range of applications and can be used for squeezing various fruits, vegetables, and pickles, etc. The effect is also good.
Application
The press is one of the equipments for small and medium-sized production enterprises of fruits and vegetables, fruit wine or chemical industry, etc. Through improvement, it can also be widely used in alcohol plant, fine chemical feed and other industries. The press is suitable for juice extraction from grapes, sea buckthorn berries, loquat, aloe vera, cassava pomace, prunes, pomegranate, ginger, spinach, medicinal herbs, sawdust, tea and other fruits and vegetables etc. which contain more fiber. Through the improvement can also be widely used in alcohol plant, fine chemical feed and other industries, for solid-liquid separation operations of materials containing certain fibers, such as potatoes, bamboo shoots and other substances dewatering treatment, such as cassava lees, asparagus raw material residue, etc., the water content of the material dehydrated by the machine ≤ 60% (adjustable). Its role is different from the horizontal screw machine, filter press, vacuum suction filter and ordinary screw press, which can make the waste residue or sludge to achieve the required dewatering rate at a very low cost and convenient application.
comparison of product parameters
|
Model |
HT-YZ100 |
|
Rated pressure |
30 tons |
|
Barrel volume |
100L |
|
Inner Barrel Size |
500*500mm |
|
Outer Barrel Size |
560*400mm |
|
Dehydration rate |
30%-80%(Change according to material conditions) |
|
Power |
2.2kw |
|
Voltage |
220V/380V |
|
Machine size |
1350*886*1760mm |
|
Weight |
390kg |

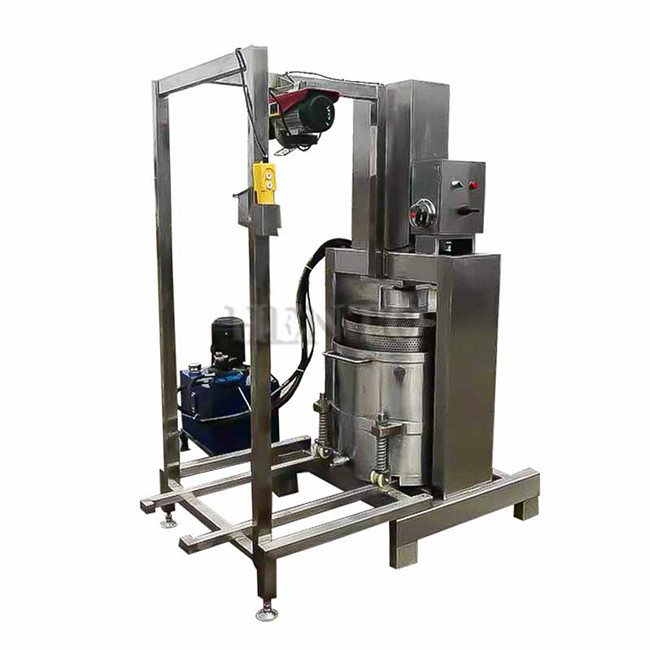

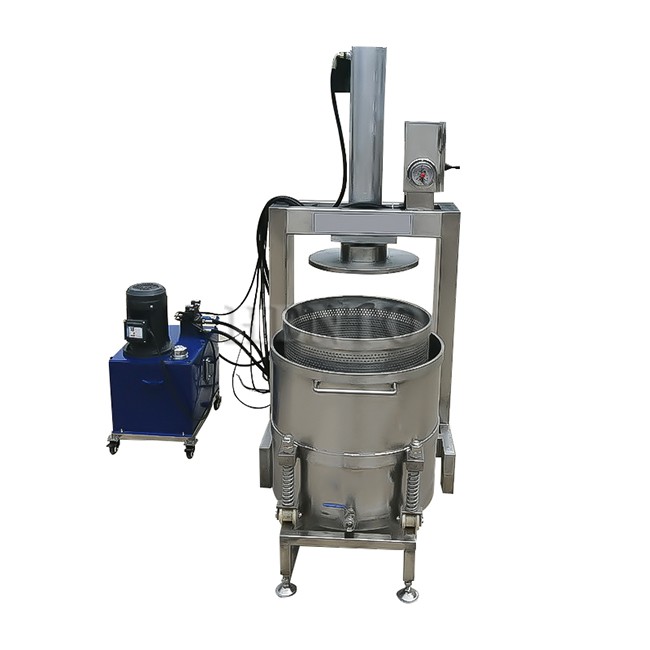

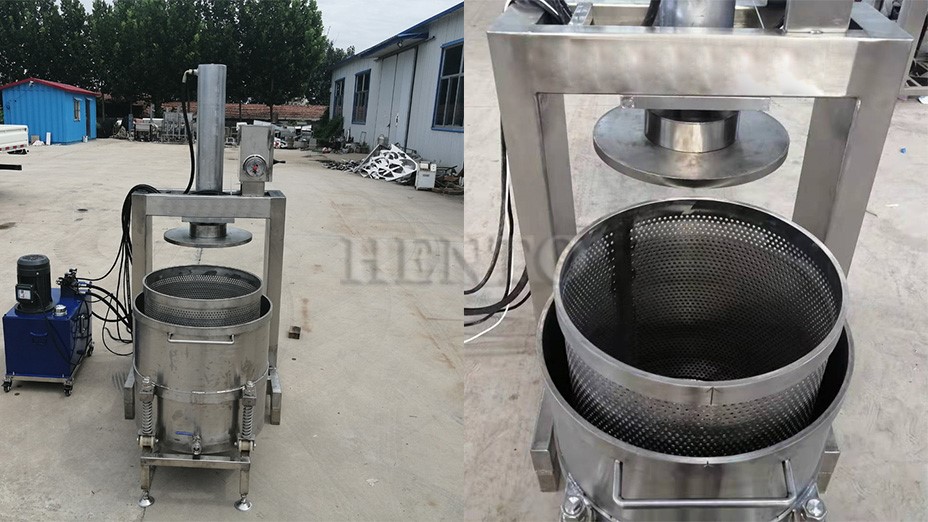

Machine pictures
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
