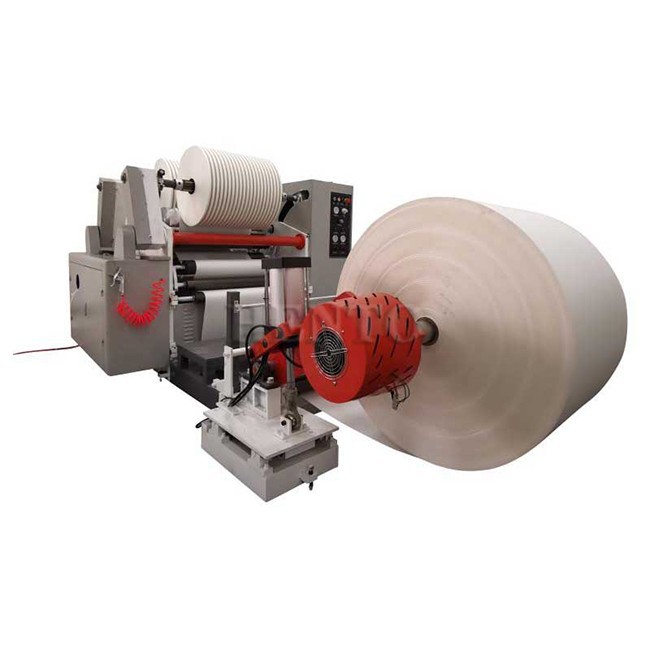

Machine For Producing Paper Straws

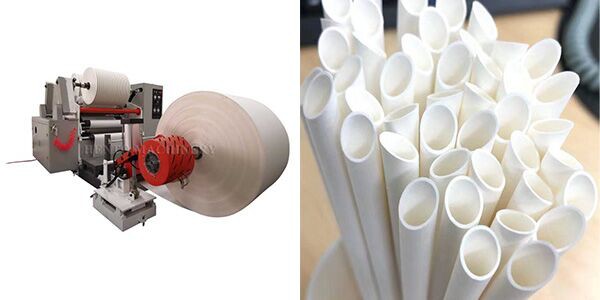

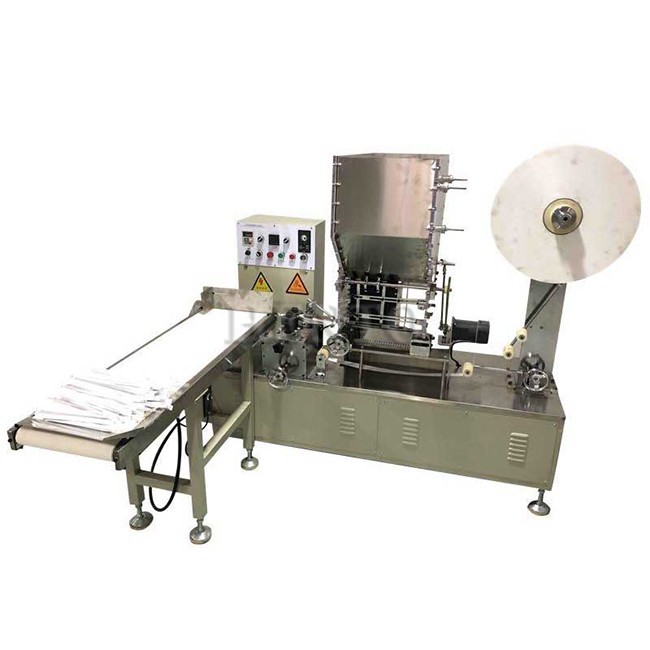

Paper Drinking Straw Making Machine

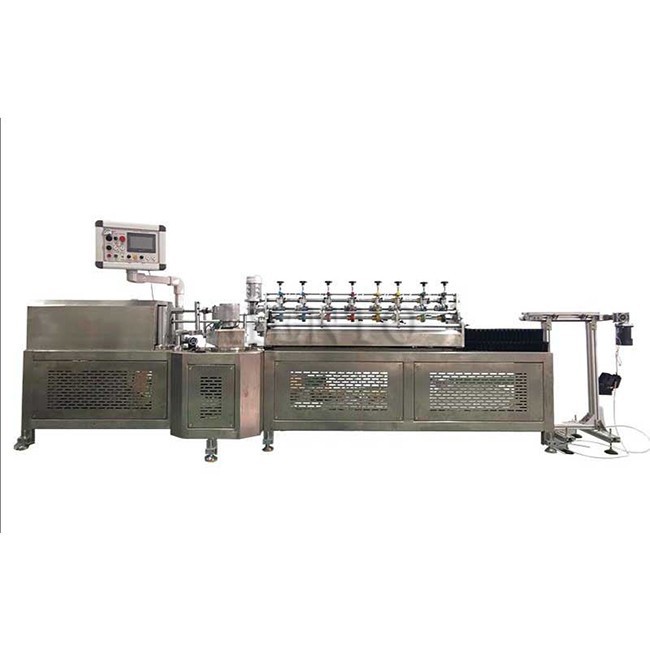

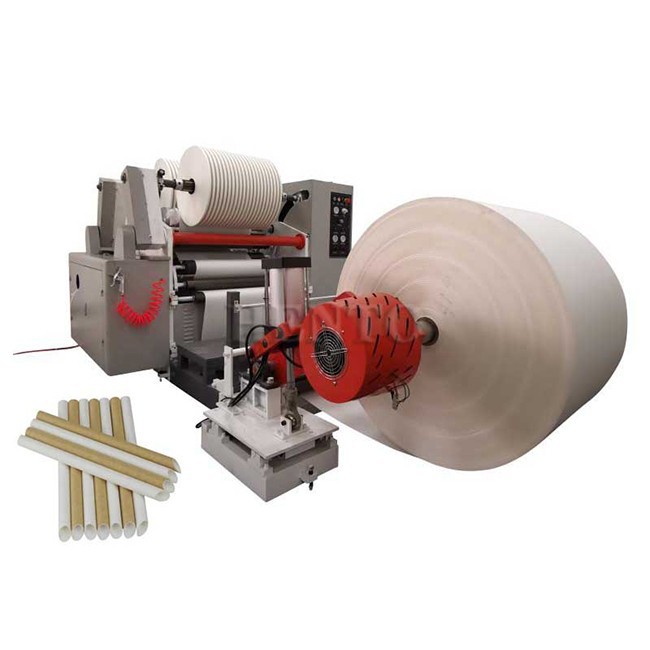

Paper Straw Machine
Paper Straw Making Machine

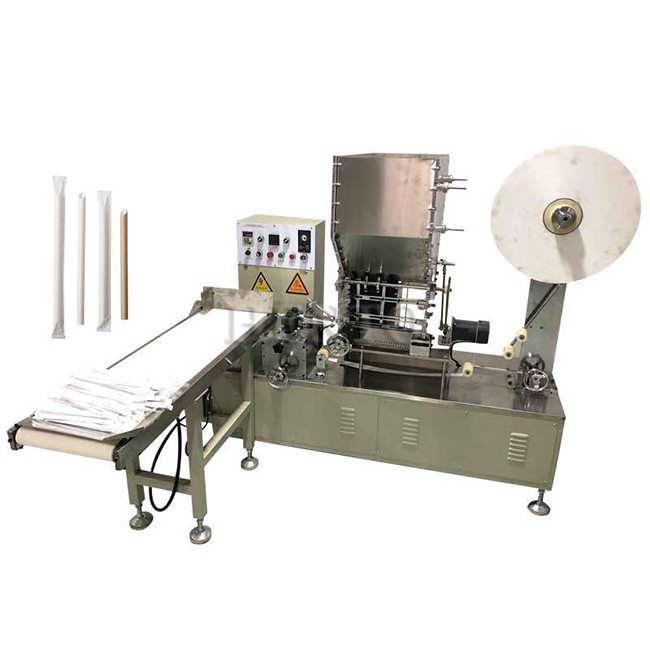

Paper Straw Packing Machine

Paper Drinking Straws Machine

Paper Drinking Straws Machine is suitable for various different sizes paper straw production, usually for paper straw diameter 5-10mm and, etc.
Equipped with multi-tool cutting device, it can roll out the finished product at one time, eliminating the need for two cuts and saving labor time.

Send Inquiry

Product Introduction

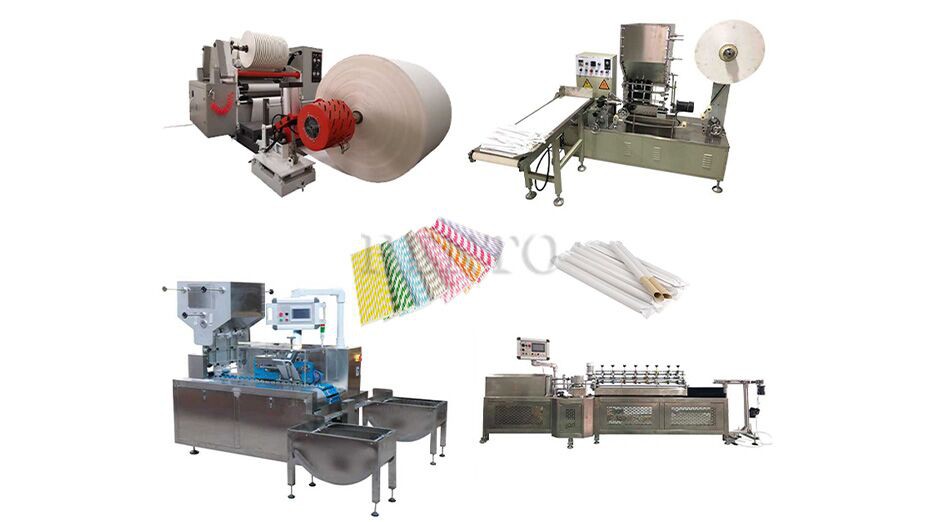

paper straw making machine for juice drinking

Function introduction

The Paper Drinking Straws Machine integrates several functions, including feeding paper, applying adhesive, winding the material, and cutting it. It is equipped with a CNC multi-tool cutting system that enables immediate cutting of completed paper tubes, making it ideal for producing different varieties and sizes of paper straws.

About our machine

Main structure and characteristics of the machine.

This machine employs PCL control technology and features frequency conversion speed regulation in its main unit. The user interface consists of a touch screen that simplifies configuration and facilitates easy operation.

The cutting mechanism uses a servo-driven multi-knife system, and the servo motors track synchronously to ensure high precision while also reducing time and labor costs.

The machine structure and main components are made of stainless steel to ensure product safety and hygiene standards.

our advantages

Let's talk about why a paper straw maker is awesome.

Eco-friendly

Paper straws break down all by themselves in just a few weeks. They're way better for the planet than plastic straws that hang around forever. So, this machine helps keep our Earth healthy.

Save money

Making paper straws doesn't cost as much as making plastic ones. It's cheaper because the materials are less pricey and it's easier to make them. The manufactuer can make straws with more lower cost.

Contact now

product parameters

Model	HT-ZX01
Internal diameter	4.5-12mm
Paper roll	2-3 plies
Thickness	0.25-1mm
Cutting length	120-820mm
Way of fixing shaft	clamp 5PICS
Production speed	10-40m/min(4-12)
Way of cutting	58382mm circular cutting blade
Way of gluing	Single / double side
Blade	5 groups
Paper reel stand	6 plies T-bar 1 paper reel stand
Glue system	3 plies independent glue tank
Main motor	1.5kw*2
Inverter	1.5KW 4 KW Schneider
Servo motor	1.5KW Schneider
Control system	China
Way of scraping glue	Independent glue box/pol polyurethane scraping blade
Way of straws	Automatic
Oil	Automatically given
L-type pipe machine	China
Cutter motor	550W
Roller motor	550W
Gluing motor	550W
Belt	China
The electromagnetic valve	7PICS 24V
Fan	2PICS
cylinder	32*20 5PICS
Voltage	380V 50HZ
Operator	1-2 workers
Host size	325011001450MM
Occupied area	720048001500MM
Weight	1300kg

FAQ

Q: 1. Q: What's the MOQ:

A: A: 1 set

Q: 2. Q: Can the machine be customized?

A: A: As a professional manufacture, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: 3. Q:What's the payment term?

A: A:We receive the T/T, Western union or Alibaba Trade Assurance Payment, ect.

Q: 4. Q:How to ship?

A: A:We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Except sea, air, express, sea to the door is no problem.

Q: 5. Q: How to send the goods to customer?

A: A: The goods will be sent to you by sea, by air or by train. We can send the goods according to your need.

Q: 6. Q: Which port do you send the goods from?

A: A: Shanghai, Qingdao, Shenzhen or other port.

Q: 7.Q:How long is the warranty of the machine?

A: A:two years warranty

Q: 8.Q:how to buy this machine?

A: A:you could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 9.Q:What about the package?

A: A:Usually we will use the standard export wooden case.

Q: 10. Q:Are you manufacturer or trading company?

A: A:We are professional manufacturer of this machine,and we have manufactured this machine for more than 10 years.

Q: 11.Q:Do you need a supplier to provide transportation?

A: A：If need we ship help you,pls leave your details adress include zip code.

Q: 12.Q:Are there any requirements for power supply?

A: A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: Q: 13.What about Pre-sale service:

A: 13.A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
