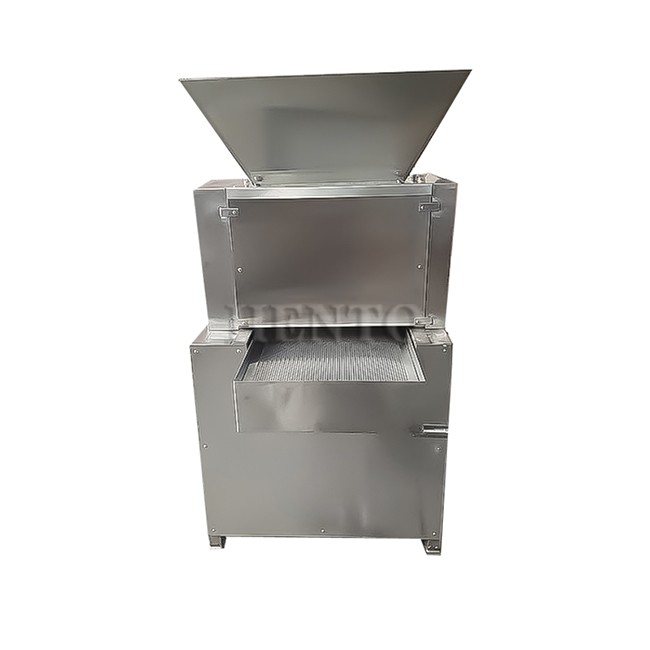

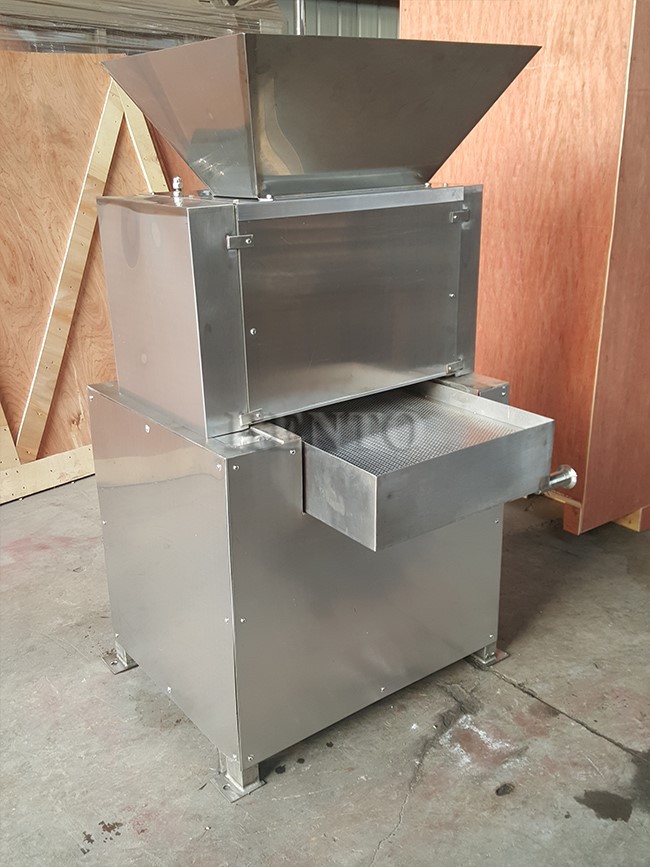

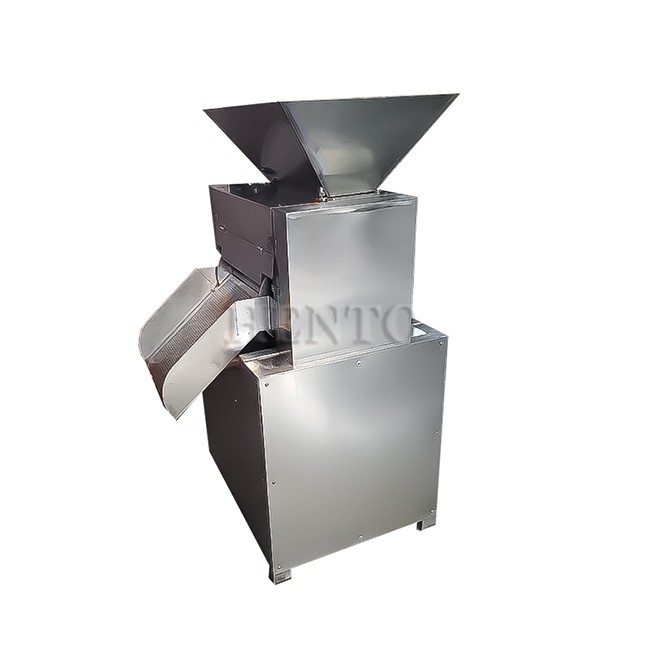

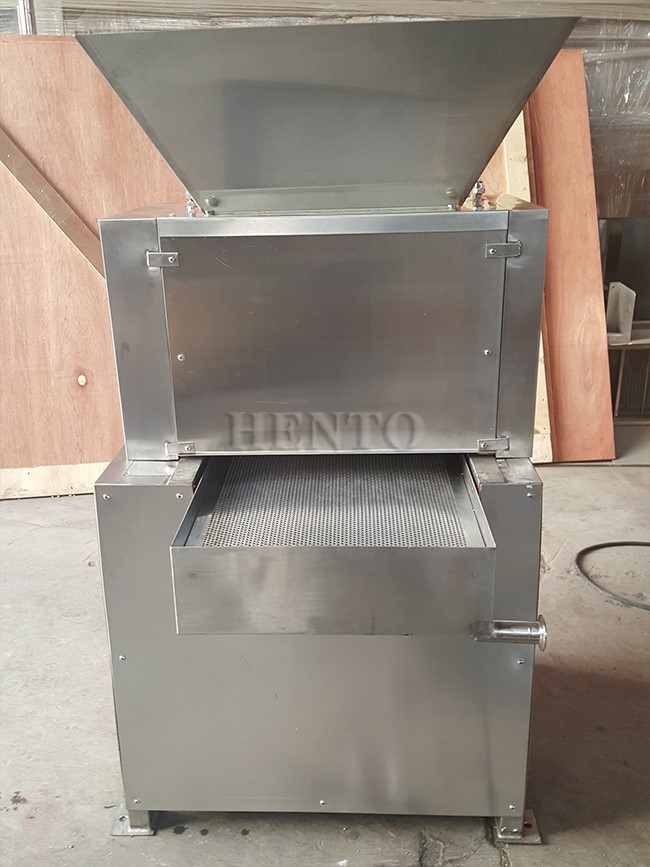

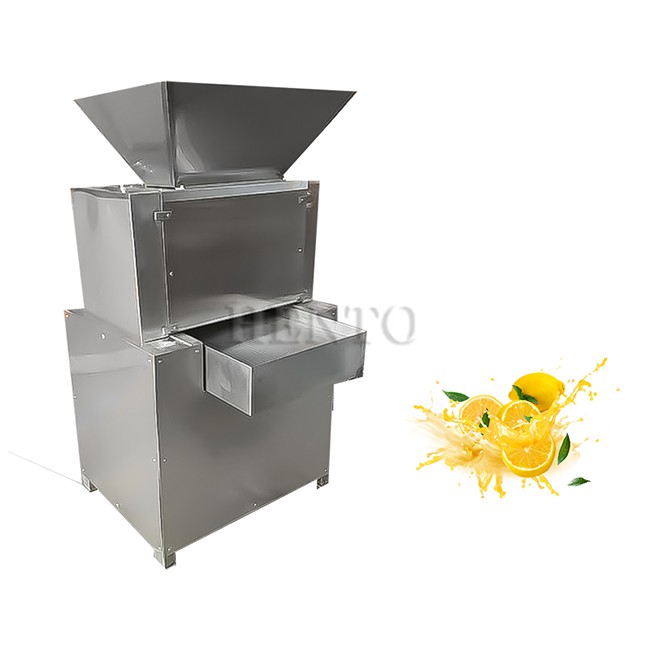

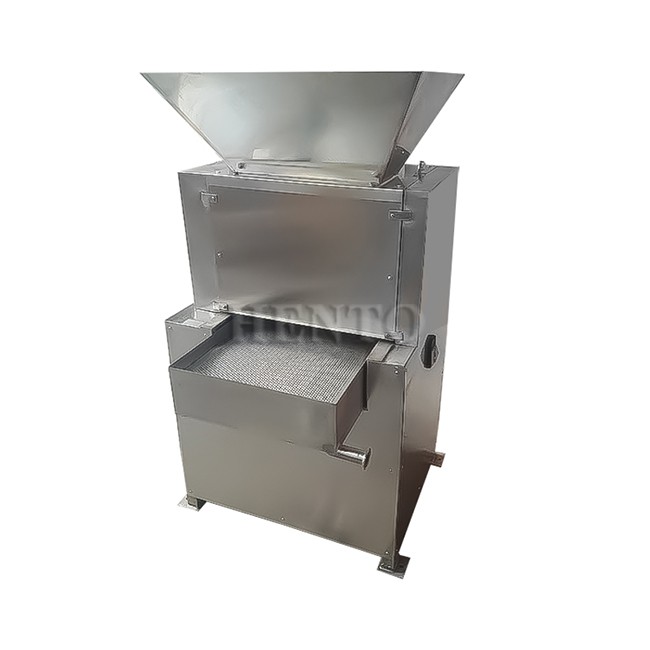

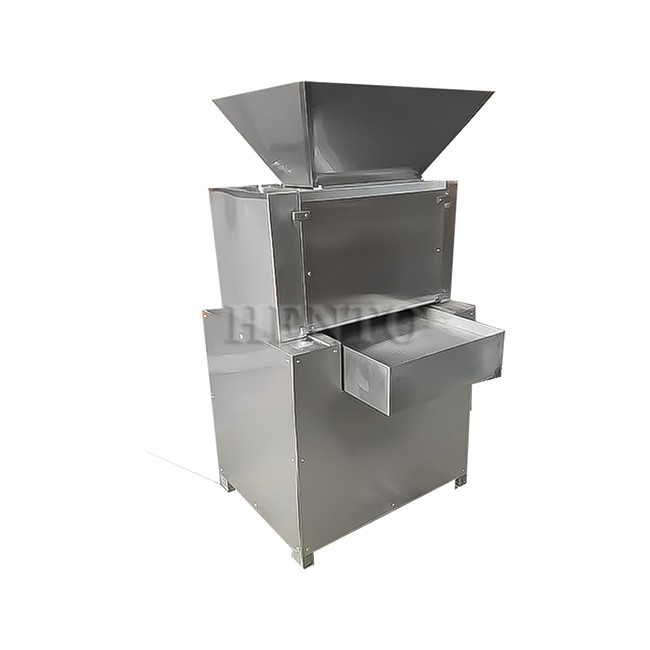

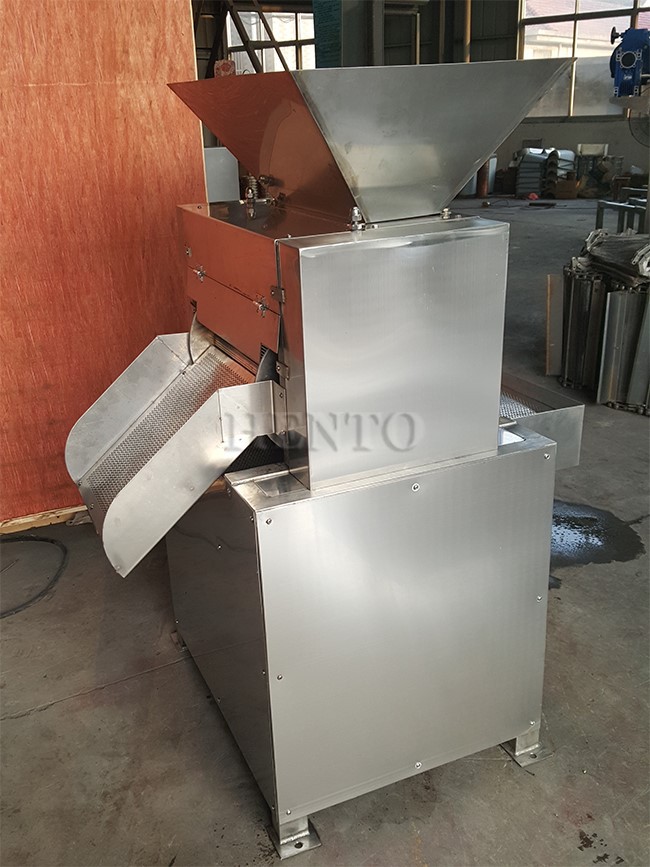

Lemon Juice Extracting Machine

The main component of this Lemon Juice Extracting Machine is the spiral along the slag outlet direction of the bottom diameter gradually increased and the pitch gradually reduced, when the material is propelled by the spiral, due to the reduction of the volume of the spiral cavity, the formation of the material pressure.

Spiral spindle rotation direction from the feed hopper to the direction of the slag tank, for the clockwise direction.

Raw materials are added to the feed hopper and pressed under the propulsion of the screw, and its pressed juice flows into the juice container at the bottom through the strainer, while the waste material is discharged through the annular gap formed between the screw and the conical part of the regulator, and the movement of the regulator head along the axial direction can adjust the size of the gap. Used for clockwise (from the equipment of the slag tank to the feed hopper end of the rotary hand wheel shaft bearing seat, the regulator head to the left, the gap that is narrowed, and vice versa, the gap becomes larger.) Change the size of the gap, that is, adjust the resistance of slag discharge. Can change the rate of slag, but if the gap is too small, under strong extrusion, some of the particles of slag and juice will be extruded through the filter together, despite the increase in juice, but the quality of juice is relatively lower, the size of the gap should depend on the user's specific process requirements.
