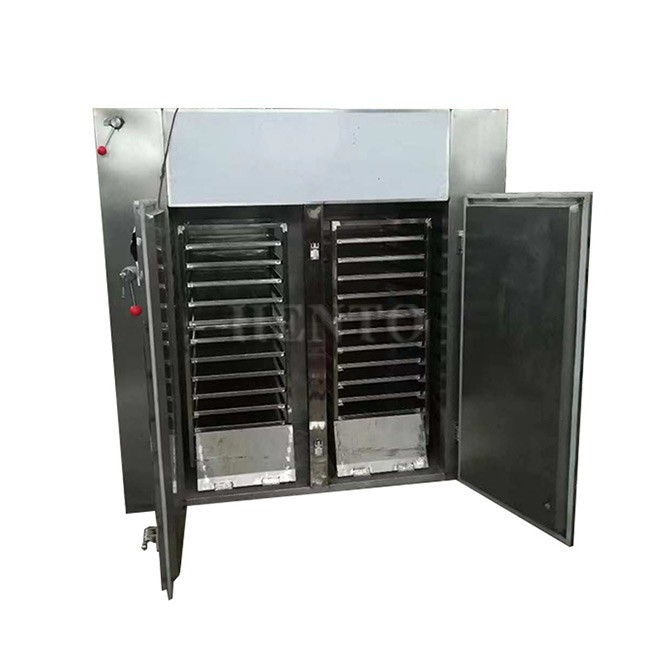

hot air blowing drying food machine

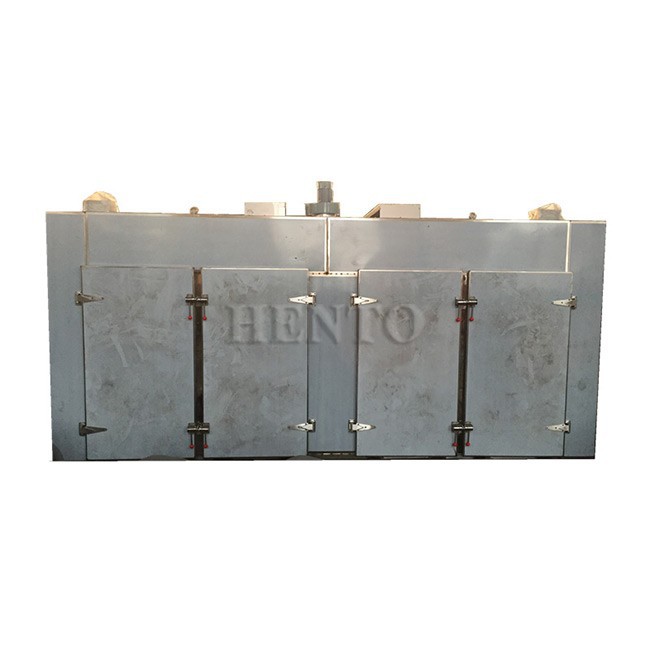

hot air circulation dry machine

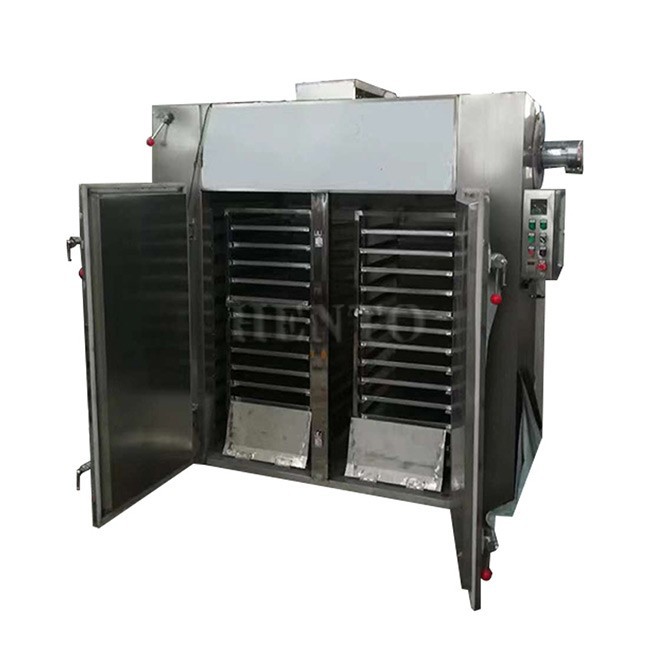

hot air dry nut roasting machine

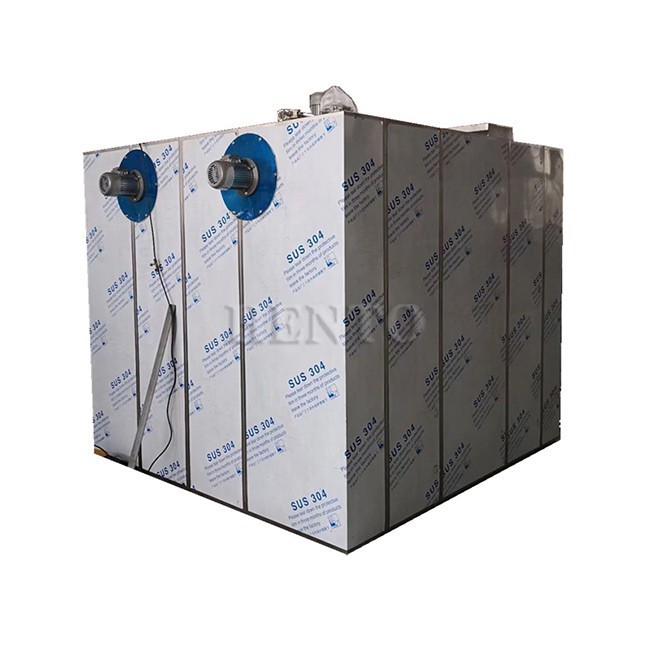

hot air drying machine

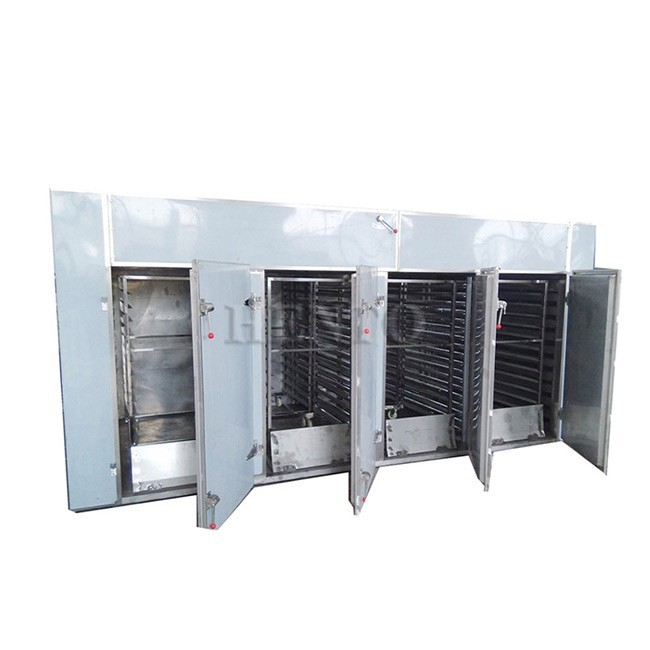

hot air fruit drying machine

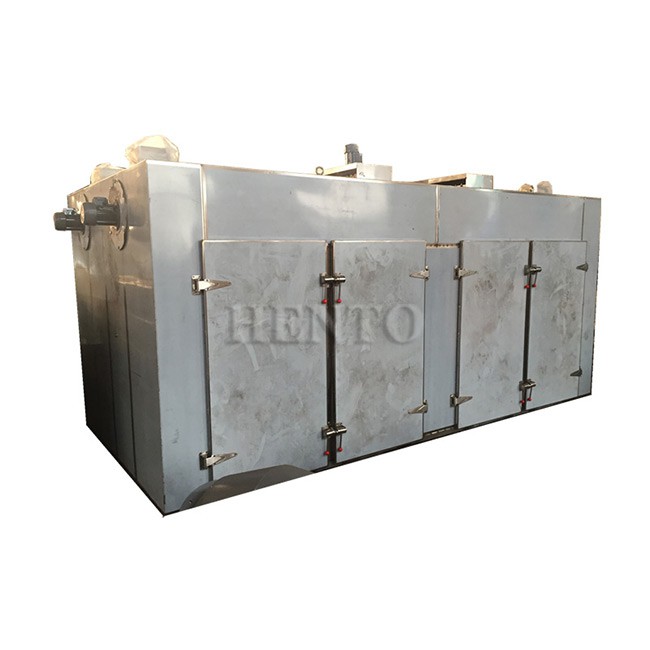

Hot Air Circulation Dryer

Hot Air Circulation Dryer! Perfect for drying a variety of materials, this machine utilizes advanced heat technology to provide quick, efficient, and even drying results. Ideal for use in food processing, pharmaceuticals, and industrial settings.

Send Inquiry

Product Introduction

Working
Prinpicle

It works by passing hot air through the chamber containing the food product. The air is heated using an electric heating element or a gas burner and is then forced through the chamber using a fan. The hot air flows around the product, removing moisture and drying it out.

The machine has several components, including a heating system, a fan, and a control system. The heating system is responsible for heating the air, while the fan circulates the hot air around the chamber. The control system regulates the temperature and humidity levels within the chamber to ensure that the product is dried thoroughly.

Product parameters

Model	HT-C-O	HT-C-I
Capacity	50kg/time(24Tray)	100kg/time(48Tray)
Power	0.45kw	0.9kw
Steam consumption	10kg/h	18kg/h
Heat radiating area	10m2	20m2
Air quantity	3400m3	3400m3
Temperature difference of upper-lower	±2℃	±2℃
Dimension	140012002000mm	230012002000mm
Drying car	1	2

Model	HT-C-II	HT-C-III	HT-C-IV
Capacity	200kg/time(96Tray)	300kg/time(144Tray)	400kg/time(192Tray)
Power	0.9kw	1.35kw	1.8kw
Steam consumption	36kg/h	54kg/h	72kg/h
Heat radiating area	40m2	80m2	100m2
Air quantity	6800m3	10200m3	113600m3
Temperature difference of upper-lower	±2℃	±2℃	wifi intelligent control
Dimension	230022002000mm	320022002000mm	430022002000mm
Drying car	4	6	8

Advantages of Hot Air Circulation Dryer

There are several advantages to using a hot air circulation dryer to dry food products

Firstly, this type of machine is highly efficient and can dry products quickly and evenly. The hot air is circulated throughout the chamber, ensuring that every part of the product is exposed to heat and dried evenly. This helps to reduce the drying time and can increase the overall productivity of the process.

Secondly, machines are versatile and can be used to dry a wide range of food products, including fruits, vegetables, meat, and can also be used to dry herbs and other ingredients commonly used in the food manufacturing industry. This makes them an excellent choice for companies that require machine that can be used to dry a variety of different products.

Thirdly, energy-efficient and cost-effective. They use less energy when compared to other drying methods such as vacuum drying or freeze-drying. This makes them a more environmentally friendly option and can help to reduce energy costs for companies.

FAQ

Q: Can the machine be customized?

A: As a professional manufacture, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We receive the T/T, Western union or Alibaba Trade Assurance Payment, ect.
