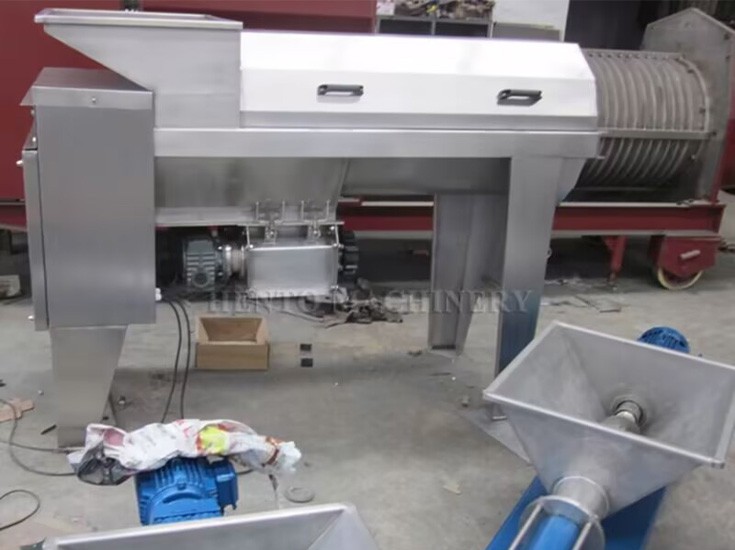

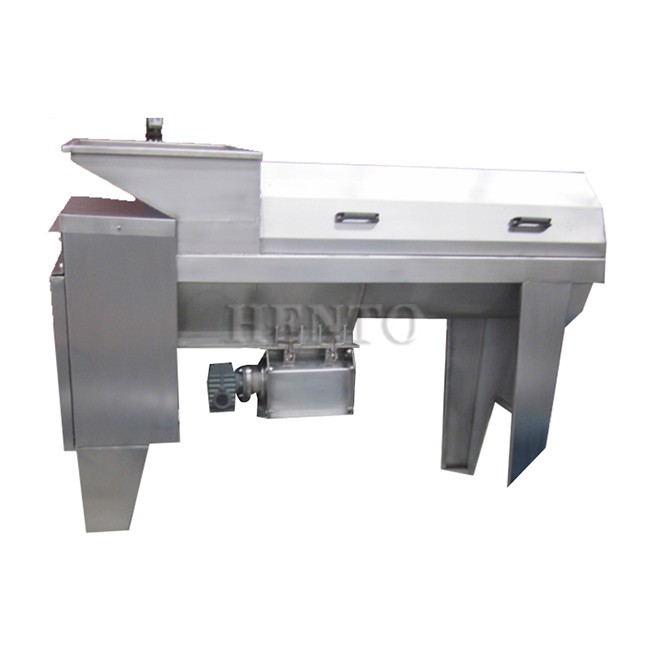

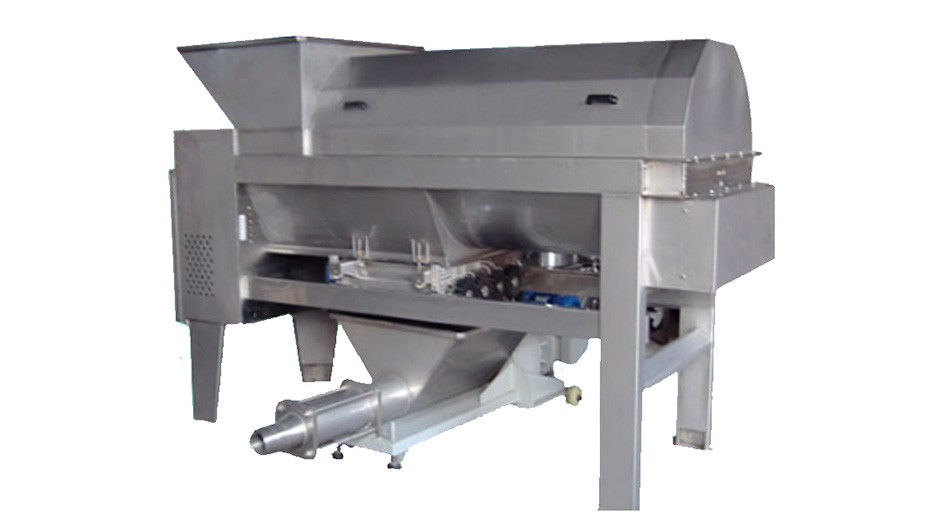

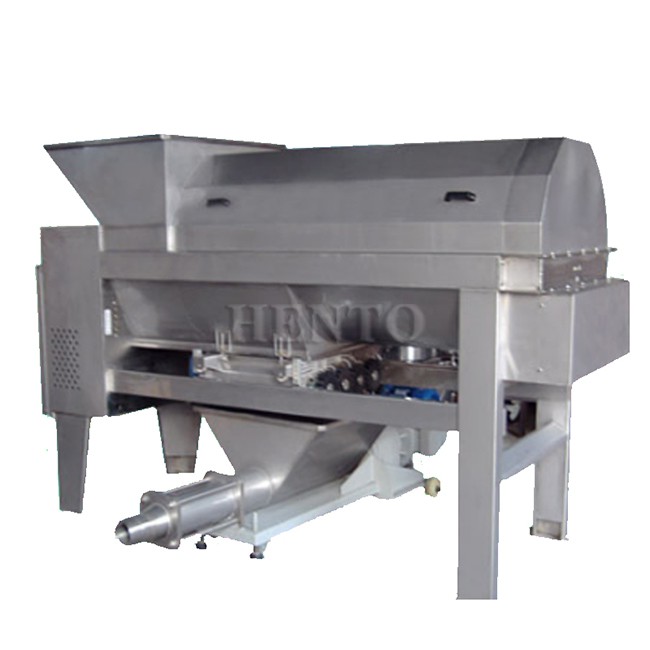

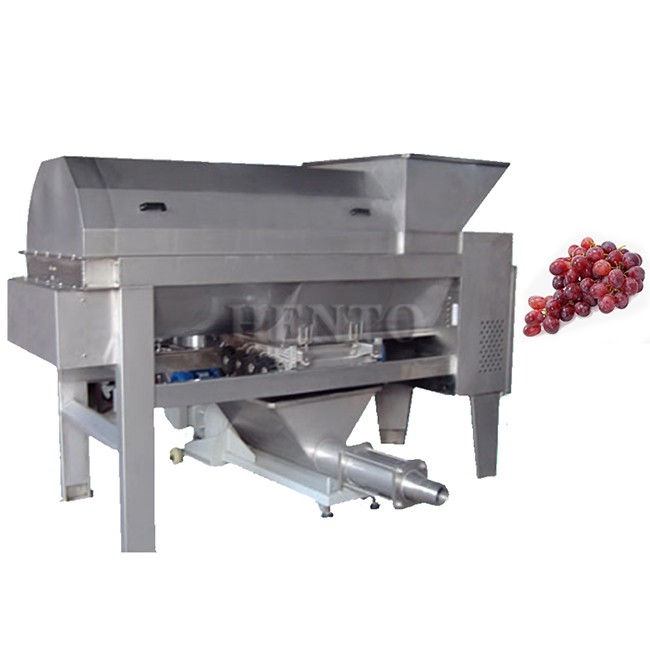

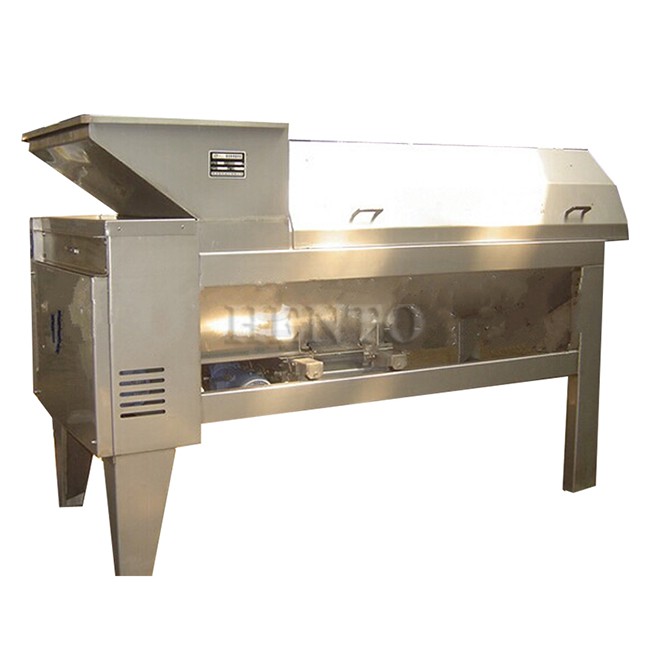

Grape Stem Removing Machine
Introduction:
In the wine making process, Grape Stem Removing Machine are used in the initial processing stage during the grape wine processing. The machine can reduce manual operations, save labor costs, and could improve the quality of grape wine. In addition, the machine could remove the grape stems from the picked grapes, thus it ensure the stems and grape are completely separated. The crushed grapes enter the fermentation tank for fermentation, andand it can avoid the bitter taste of the stem during the fermentation process, thereby ensuring the quality of the wine.
Working principle

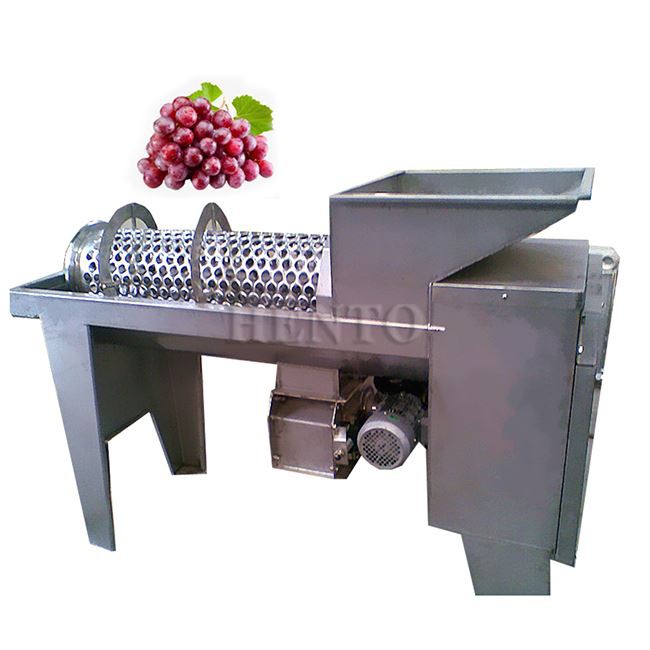

Grape Stem Removing Machine through a series of mechanical devices. After are put into the hopper, the grapes will enter the screen cylinder for destemming under the push of the spiral after be put into the hopper. The stems are removed and discharged from the stem outlet, and the berries will be discharged from the sieve holes,and then the grape be pushed into the crushing device for crushing at the same time.The destemming rate can be controlled by adjusting the opening of the valve. The structure of the machine includes: a hopper, a conveying spiral, a destemming spiral, a screen cylinder, a spiral blade, a stem outlet, a valve, a handwheel, a crushing device and a discharge device. These components work together to ensure efficient processing of grapes.
Product Features
Spiral quantitative conveying:
Grapes are quantitatively conveyed through a spiral conveyor to ensure uniform processing.
Destemming before crushing:
Grapes first go through the destemming step, then remove the stems, and finally crush.
Stepless speed regulation:
Both the destemming shaft and the destemming rotary screen can achieve stepless speed regulation to adapt to different varieties of grapes.
High elastic rubber crushing roller:
The crushing device is made of high elastic rubber,thus it could reduce damage to the grapes at the same time to confirm the crushing effect.
Sanitary single screw pump:
The slurry pump is a movable sanitary single screw pump.It is installed at the bottom of the crushing device to facilitate the transportation of slurry.
comparison of product parameters
| Products name |
HT-DYTP-1 |
HT-DYTP1.5 |
| Products model |
1000kg/h |
1500kg/h |
| Products material |
1kw |
1.3kw |
| Operating voltage |
380v |
380v |
| Rated capacity |
1400*500*1300mm |
1500*500*1400mm |
