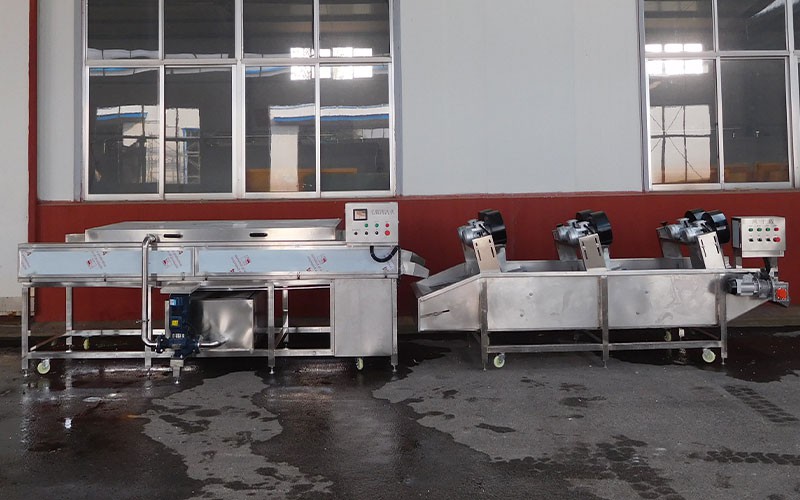

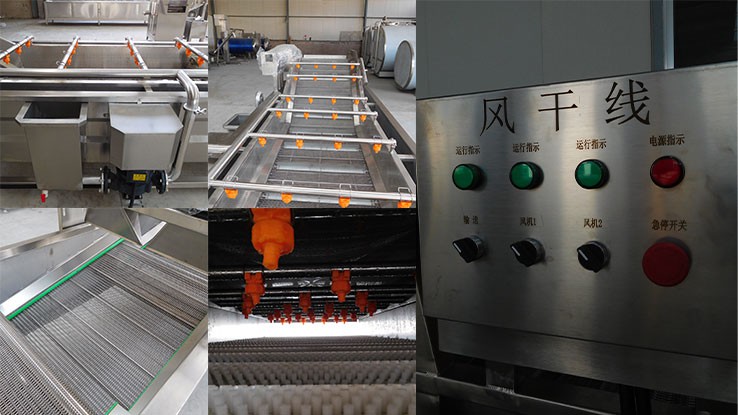

Fruit and Vegetable Drying Production Line
2. Stainless steel food grade material, sanitary and easy to clean;
3. High cleaning rate, energy saving, water saving, stable and reliable equipment.

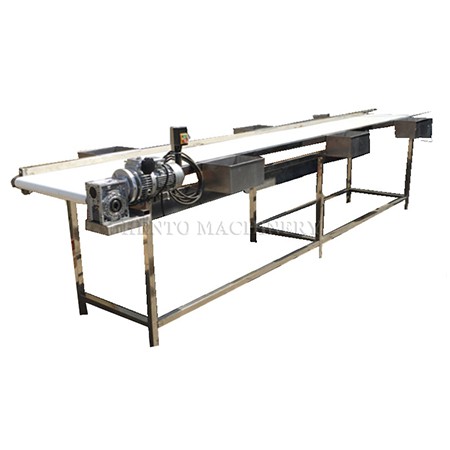

The middle of this conveyor selection is food-grade PVC belt conveyor, which uses speed regulating motor, stainless steel pallets on both sides, and has a bad fruit storage basket to facilitate the selection operation.
|
Power |
0.75kw |
|
Voltage |
380V/50Hz |
|
Belt width |
400mm |
|
Length |
4000mm |
|
Weight |
200kg |

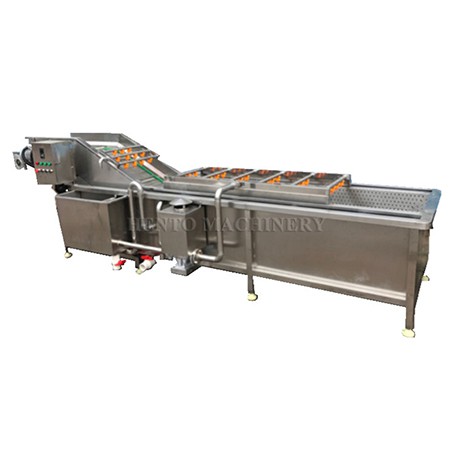

Fruit And Vegetable Drying Production Line -Fruit and vegetable washing machine
The equipment is made of all stainless steel materials, which meets the requirements of food hygiene. The equipment is equipped with a bubble generator to make the material tumble. It is the preferred equipment for product cleaning. At the same time, an appropriate amount of chemicals can be added for disinfection and color fixation.
The floating objects can overflow from the overflow tank, and the sediment can be discharged from the drain outlet, which has achieved the purpose of cleaning.
The material enters the water tank and is fully dispersed, rolled, cleaned and transported under the action of high-pressure water flow and strong bubbles.
The sediment washed from the material surface will sink into the bottom isolation bin, and there will be no re-pollution caused by overturning and backflow.
It has the characteristics of high cleaning rate, energy saving, water saving, and stable and reliable equipment.
The cleaned materials will be sent to the next process after being sprayed and cleaned after being discharged.
|
Mesh belt specification |
800mm |
|
Gear motor |
0.75kw |
|
running speed |
0-2300mm/min |
|
Wave blower |
2.2kw |
|
Conveying motor |
1.5kw |
|
Dimension |
6000*1200*1300mm |
|
Weight |
650kg |
Fruit And Vegetable Drying Production Line

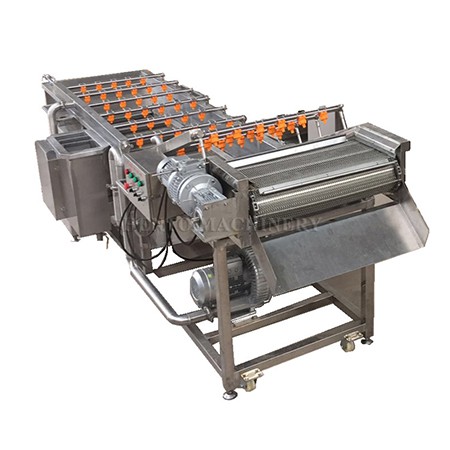

Secondary washing machine for fruits and vegetables
The equipment is made of all stainless steel SUS304/2B material, which meets the requirements of food hygiene. The equipment is equipped with a bubble generator to make the material tumble.
It is the preferred equipment for product cleaning. At the same time, an appropriate amount of chemicals can be added for disinfection and color fixation.
The floating objects can overflow from the overflow tank, and the sediment can be discharged from the drain outlet, which has achieved the purpose of cleaning.
It has the characteristics of high cleaning rate, energy saving, water saving, and stable and reliable equipment.
The material enters the water tank and is fully dispersed, rolled, cleaned and transported under the action of high-pressure water flow and strong bubbles. The sediment washed from the material surface will sink into the bottom isolation bin, and there will be no re-pollution caused by overturning and backflow. The cleaned materials will be sent to the next process after being sprayed and cleaned after being discharged.
|
Mesh belt specification |
800mm |
|
Gear motor |
0.75kw |
|
running speed |
0-2300mm/min |
|
Wave blower |
2.2kw |
|
Conveying motor |
1.5kw |
|
Dimension |
6000*1200*1300mm |
|
Weight |
650kg |

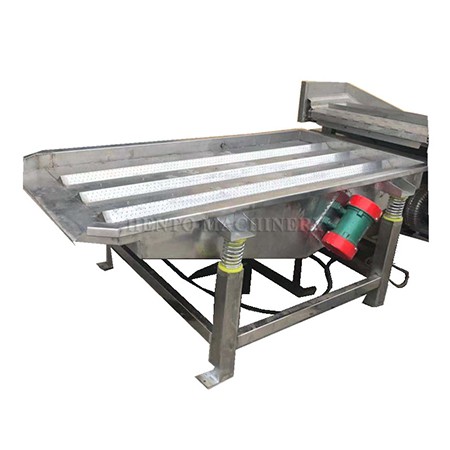

The main body of the machine is made of SUS304 stainless steel, and the vibration motor is used to remove the moisture on the surface of fruits and vegetables.
|
Length |
2000mm |
|
Power |
0.55kw*2 |
|
Dimension |
2000*900*1200mm |
|
Weight |
250kg |

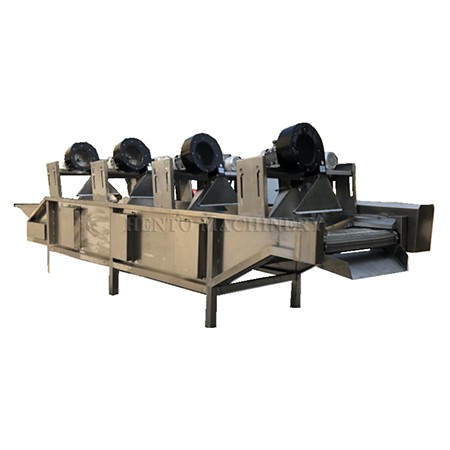

Fruit And Vegetable Drying Production Line - Reversing air dryer
The main body of the machine is made of SUS304 stainless steel, and the time is controlled by frequency conversion speed regulation. Through turning over and draining water several times, and the upper high-pressure strong cold air blowing, the water drops on the material surface are effectively removed, which greatly shortens the preparation for labeling and packing, is suitable for assembly line operation, and improves the degree of production automation of the enterprise.
The drying air temperature is normal temperature, which effectively protects the color and quality of the material itself. Make the product completely achieve the effect of drying by water droplets on the surface (the water stored between the wrinkles on the bag surface can also be dried).
|
Reticulum belt |
800mm |
|
Gear motor |
Nmrv0.75-50 |
|
Motor shaft |
800# |
|
running speed |
0-2300mm/min |
|
Fan |
0.75kwx8set |
|
Thickness |
2mm |
|
Power |
6.75KW |
|
Voltage |
380V/50HZ |
|
Dimension |
4500*1200*1350mm |
