Frozen Product Disinfection Machine
2.The automatic control
3.Processing customized
Product Introduction:
The continuous packing box disinfection machine is a new type of disinfection equipment newly developed by our company in response to market demand. The working principle of the equipment is to spray the disinfection liquid into the atomization chamber after polymer atomization (0.5-5um), and the box body is atomized. The whole body is covered by the disinfectant after atomization, so as to achieve the effect of disinfection and sterilization. The equipment cooperates with the disinfectant to sterilize the outer packaging of the items. The equipment is made of SUS304 food-grade stainless steel, with optional automatic counting function, high degree of automation, beautiful appearance, compact structure, easy to move, especially suitable for the disinfection of frozen food, processed cooked food and other items in and out of storage, logistics and other places. The equipment can be customized according to the size and shape of different boxes of users.
Products Description
1. The whole Frozen Product Disinfection Machine is made of stainless steel, no rust, no deformation, corrosion resistance and other characteristics.
2. The appearance of the Frozen Product Disinfection Machine is simple, beautiful, easy to clean, and adopts quick-release design, which is convenient for maintenance.
3. The bottom of the equipment adopts mobile casters, which can be pushed and pushed as needed, and can be moved easily. .
4. It adopts independent water design. Various disinfectants can be put into the water tank. The water tank is made of stainless steel, which is anti-corrosion, no rust and durable.
5. The conveying method can choose mesh belt type or roller type conveying, which can be customized according to customer requirements. A heating tube can be optionally installed in the water tank.
6. The spray head adopts atomizing spray head. When sterilizing the packing box, no water droplets remain on the carton to keep the carton dry.
7. The Frozen Product Disinfection Machine can spray and disinfect cartons, wooden boxes, foam boxes, packaging bags, buckets, plastic buckets, bottles, fillings, glass bottles, etc., and there is no water droplet residue on the surface of the disinfected products.

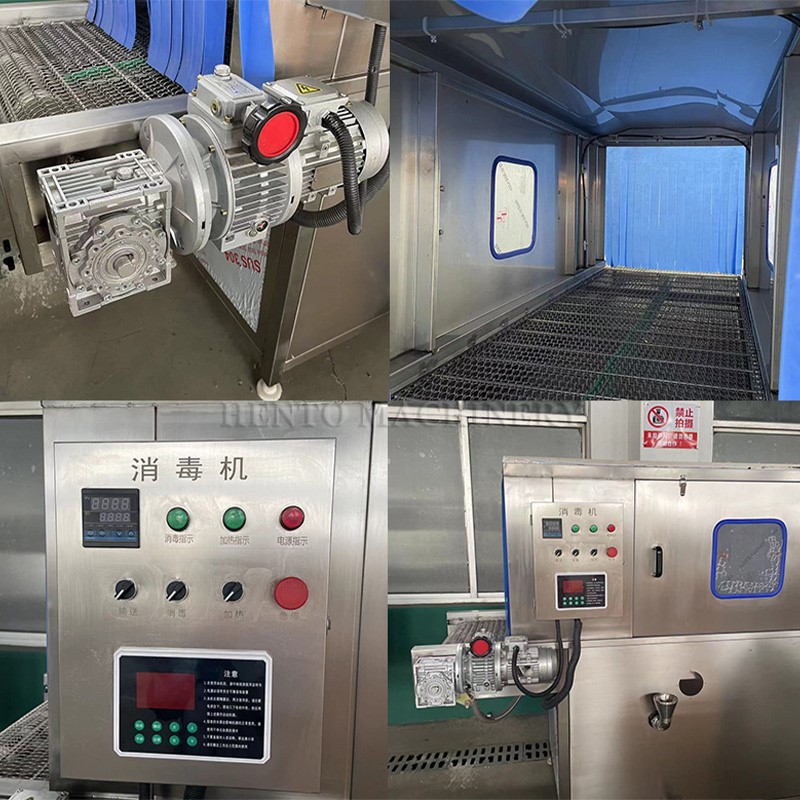

The electric control box adopts a simple push-button switch, which is very convenient to start and stop, as well as safety emergency stop device, leakage protection device and so on.
Technical Parameter
|
Model |
HT-XD800 |
|
Heating power(KW) |
3 |
|
Atomization power(KW) |
2.2 |
|
Transmission power(KW) |
0.75 |
|
Rated voltage(V) |
380V 50HZ |
|
Disinfection room size(mm) |
≈800×800×800 |
|
Platform height(mm) |
≈800-850 |
|
Dimension (mm) |
≈3000×1200×1700 |
|
Weight(Kg) |
300 |
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: What about the package?
A: Usually we will use the standard export wooden case.
Q: Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service:
A: 11.Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: 12.Video technical support; Online support ; Field installation, commissioning and training;
