Frozen Meat Cube Cutter
video

Frozen Meat Cube Cutter

The Frozen Meat Cube Cutter is a modern and advanced piece of machinery that is designed to efficiently and accurately dice up frozen meat. It operates on a simple concept based on three main principles: blade movement, feed movement, and cutting pattern.
Send Inquiry
Product Introduction

The Frozen Meat Cube Cutter adopts the current domestic advanced three-dimensional cutting method, which greatly avoids the decline of the yield caused by extrusion of raw materials in the cutting process, and carries out rapid cutting treatment under the premise of retaining the original characteristics of raw materials. The machine structure is reasonable, the tool can be disassembled and replaced separately, greatly reducing the maintenance cost.

This machine can cut frozen meat (fat can be cut as low as minus 16 degrees, lean beef can be cut as low as minus 6 degrees, lean pork can be cut as low as minus 8 degrees) into slices, strips and cubes. Since the cut product is still in the frozen state, it is convenient for subsequent packaging and distribution.



Main features of the Frozen Meat Cube Cutter:



1. Large processing capacity of frozen meat, dicing up to 3000kg/h.

2. Slice: 2~20mm adjustable.

3. Cutting: 3~30mm optional, can cut 3~150mm length of silk, strip.

4. Dicing: 3~15mm optional.

5. This machine is designed for frequency conversion speed regulation, and the corresponding frequency 0~50Hz can be selected freely according to different products and temperatures.



The machine uses advanced technology to achieve precision when dicing frozen meat. This ensures consistency in sizing and reduces waste, which is beneficial to any meat processing business.



The machine is easy to clean, which ensures the hygiene standards in a processing plant are maintained. The design of the machine also makes it easy to clean and sanitize, which prevents the growth of bacteria and other harmful microorganisms.



Frozen Meat Cube Cutter is an excellent option for any meat processing plant that values efficiency, accuracy, safety, hygiene, and cost-effectiveness. With the numerous benefits mentioned above, it's a worthwhile investment that guarantees better returns in any meat processing business.



Technical Parameter



Model

HT-SWQDJ-350

Purpose

Frozen meat, slightly frozen meat, cooked meat once cuting into cubes

principle

3D cutting

Voltage

380V

Power

11KW

Size

1855*1130*1600mm

Cutting size

4-20mm

Capacity

1200-2300kg/h

Suitable temperature

Lean meat-10℃-0℃,fat meat-16℃-1℃



Product Pictures

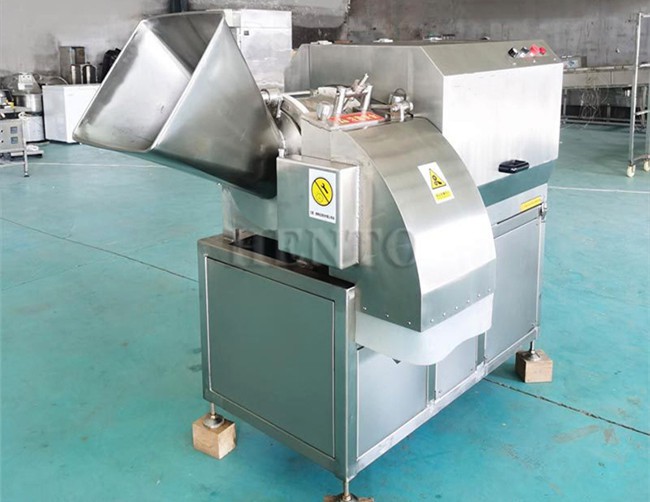

Frozen Beef Meat Cubes Dicer

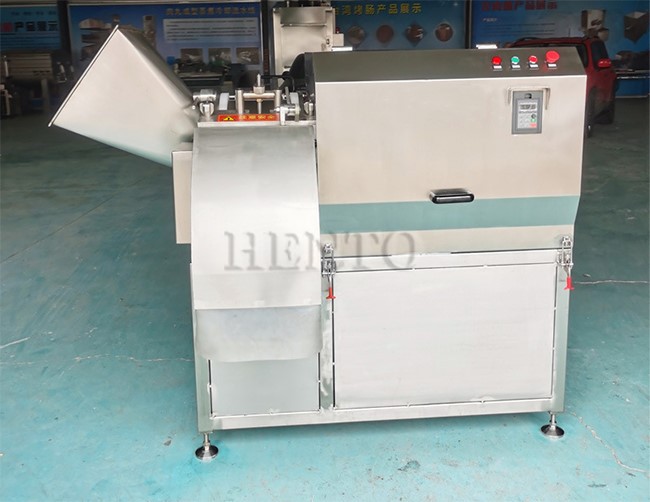

Frozen Meat Block Cutter
