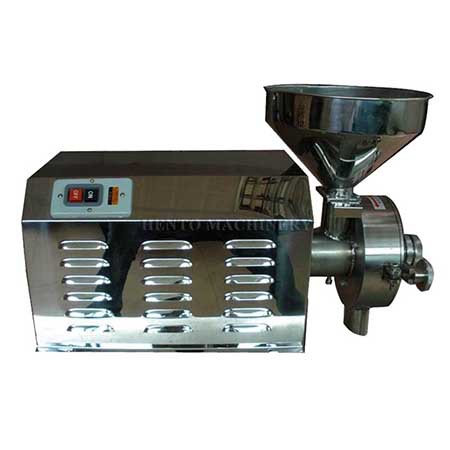

Coffee Bean Powder Grinding Machine

1. The machine no longer uses low-power motors. 220V has two powers of 2.2 and 3KW, and 380V has two powers of 2.2KW and 3KW. The motor shaft of the mill is lengthened to further ensure concentricity, and the machine runs more smoothly, with less vibration and noise.

2. A silicone pad is installed between the static grinding disc and the machine wall to reduce shock and fine-tune the grinding disc, so that the two grinding discs fit better, the grinding powder is finer, and the noise is reduced.

3. Rubber pads are installed between the motor and the motor fixing plate and under the motor fixing plate to further enhance the shock absorption and noise reduction effects.

4. The door cover and the cavity of the mill are tightly processed and matched in a step position to ensure that there is no powder leakage, ensure the concentricity of the regulator top pad and the grinding disc hexagonal sleeve, reduce wear, vibration and noise.

5. The grinding chamber slope of the mill (i.e. the installation position of the static grinding disc) is scientifically designed to further ensure the fineness of the ground powder and achieve a melting taste.

6. The regulator teeth of the mill adopt advanced machining centers to ensure machining precision, achieving the effects of convenient adjustment, tight fit and low noise.

7. After the grinding disc of the mill is installed with the grinding disc and the scraper, it is tested by computer dynamic balance to further ensure the concentricity and balance of the center of gravity, reduce vibration and noise

8. There is no bearing between the base and the motor of the mill, which is convenient for customers to disassemble and assemble, reduces the occurrence of failures, and improves the quality of the machine.
