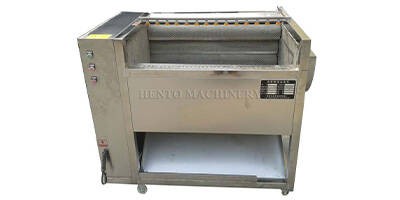

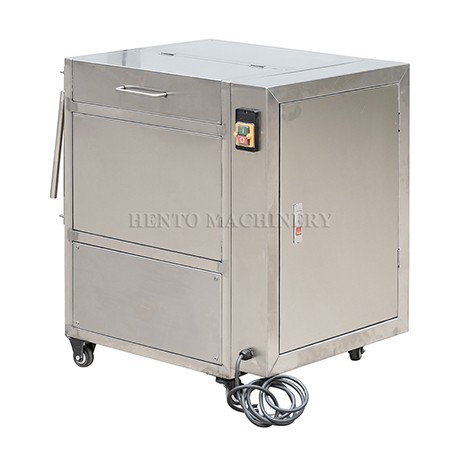

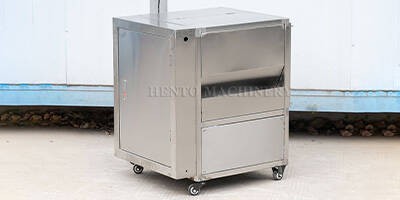

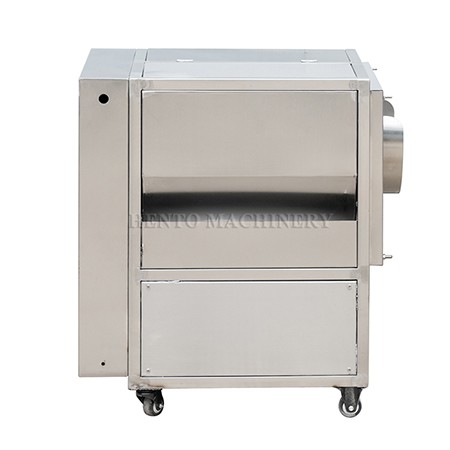

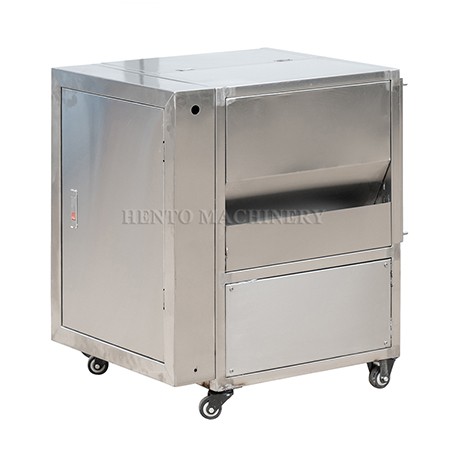

Vegetable Brush Washing Machine
Working principle

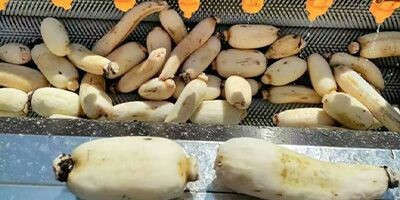

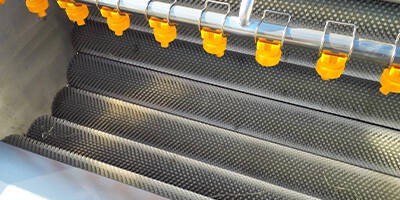

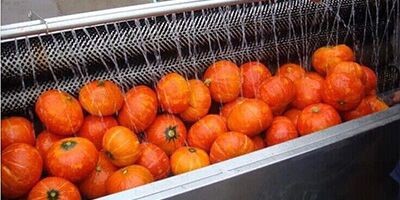

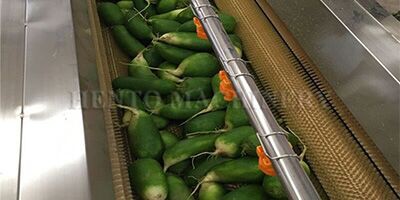

The vegetable brush washing machine is designed based on the characteristics of root vegetables. The materials are added into a stainless steel tank, and then the motor drives the chain transmission, which is then transmitted to the brush roller through the chain, so that the brush roller rotates at high speed. At the same time, the brush on the brush roller scrapes the materials. Under the influence of speed, the upper spray device sprays the materials under the action of a high-pressure water pump, so that the materials are peeled and cleaned at the same time. The waste collection area under the machine has enough space for workers to remove waste, and the newly added filter can separate the waste residue and wastewater. The waste residue is easily scraped off above the filter, and the wastewater is automatically drained below the filter.
Machine advantages
The vegetable brush washing machine support frame and conveyor belt are made of 304 stainless steel, which has stable operation, simple maintenance, long service life, and adjustable running speed of the whole machine. The conveying speed can be set according to production needs. It has a high degree of automation, saves labor and improves production efficiency.
1. Clean
Under the dual effects of bubbles and spraying, multi-directional and multi-angle cleaning;
2. High efficiency
The conveyor belt motor can realize the adjustable speed function. The cleaned vegetables are transported through the net chain and automatically discharged. The conveying degree of the conveyor belt can be adjusted according to production needs, and the work efficiency is high;
3. The finished product has good effect
Water flow transportation, bubble floating washing, protecting the material from damage, simulating the basic actions of manual cleaning and effectively avoiding the bumps and scratches that occur during manual cleaning;
4. Save resources
The water circulation filtration system can save cleaning water;
5. Convenient water change
Large drain valve, easy discharge, cleaning and maintenance;
6. Convenient cleaning
All pipeline connections use quick-connect devices for easy disassembly and cleaning. A certain gap is reserved between the conveying components and the sink for later cleaning of the sink;
7. Wide range of applications
Suitable for cleaning and processing of a variety of fruits and vegetables, and can also be customized according to user needs;
8. Support customization
The output and specific needs can be provided. Gelgug can be customized according to the output, and can customize the equipment solutions for the clean vegetable processing production line
product parameters
|
Model |
Power |
Dimension |
Weight |
Capacity |
|
HT-MQT800 |
1.1kw/380v |
1600x730x840mm |
260kg |
800kg/h |
|
HT-MQT1200 |
1.5kw/380v |
2120x840x900mm |
300kg |
1200kg/h |
|
HT-MQT1500 |
2.2kw/380v |
2400x840x900mm |
380kg |
1500kg/h |
|
HT-MQT1800 |
3kw/380v |
2550x840x900mm |
400kg |
1800kg/h |
|
HT-MQT2000 |
3kw/380v |
2900x910x900mm |
460kg |
2000kg/h |
|
HT-MQT3000 |
4kw/380v |
2950x990x1005mm |
560kg |
3000kg/h |
|
HT-MQT4000 |
4kw/380v |
2950x1080x1046mm |
600kg |
4000kg/h |
|
HT-MQT5000 |
5.5kw/380v |
3050x1193x1136mm |
700kg |
5000kg/h |
FAQ
Q: What's the MOQ?
A: 1 set
Q: Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: Which port do you send the goods from?
A: Which port do you send the goods from?
Q: How long is the warranty of the machine?
A: Two years warranty.
Q: How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .
Q: What about the package?
A: Usually we will use the standard export wooden case.
Q: Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: What about Pre-sale service:
A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: What about After-sales service?
A: Video technical support; Online support ; Field installation, commissioning and training;
