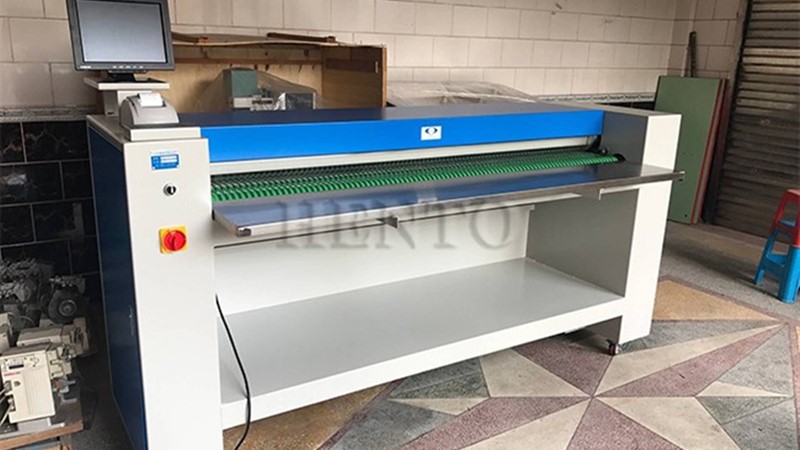

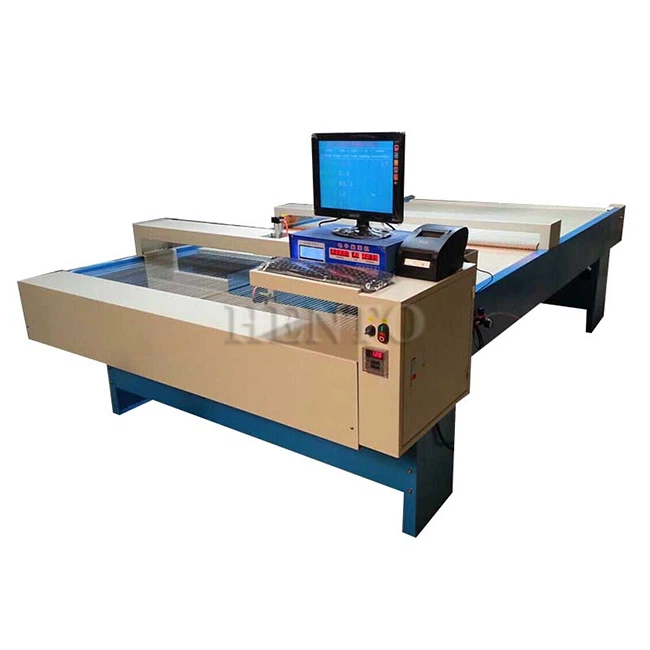

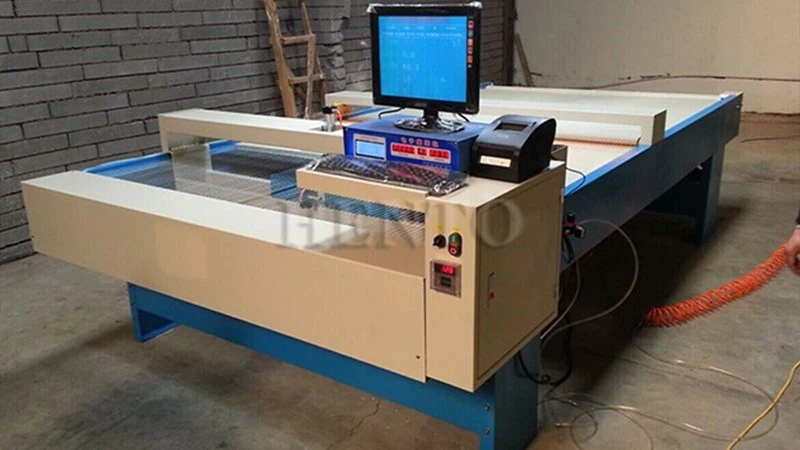

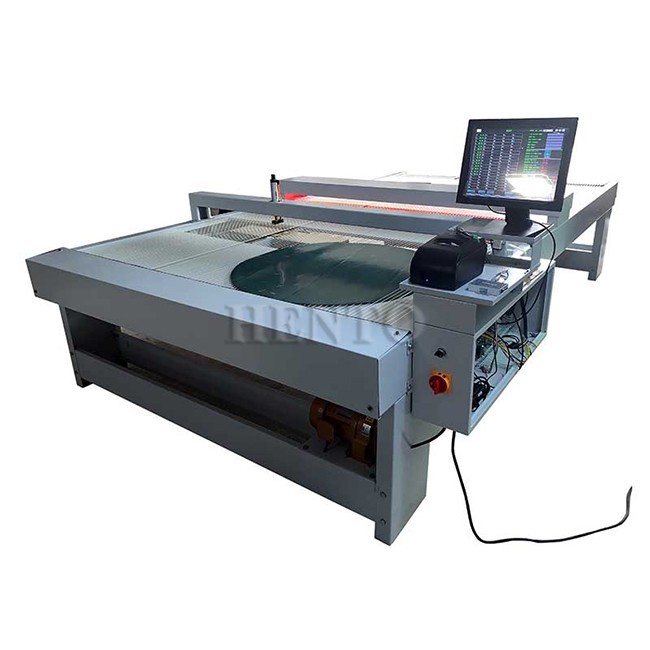

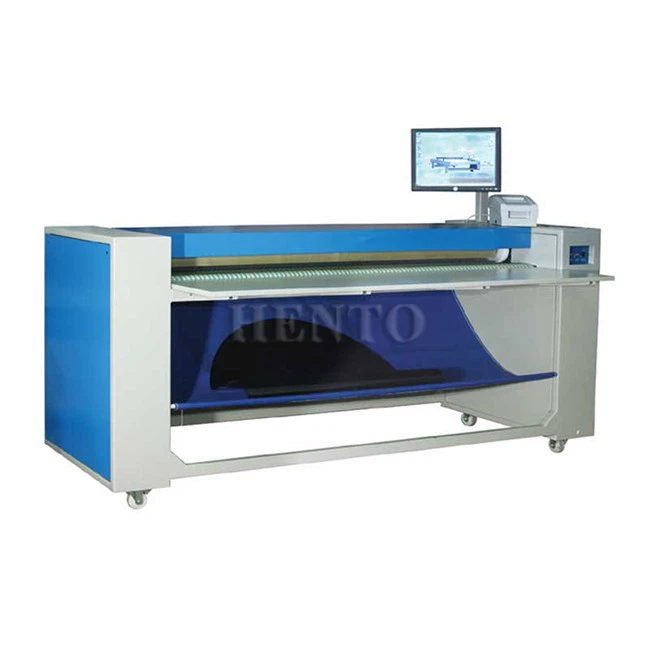

Measuring Machine For Leather
Working width: 1600-2200mm
Working speed: 1-15m/min
Motor power: 0.50kw Voltage: 220V
Measurement accuracy: ±≤1% for the same standard plate under 10 consecutive accumulation conditions
Measuring Machine For Leather
Features of Measuring Machine For Leather: The large-scale screen makes the operation easier and faster. The voice reporting function allows you to know the size without looking at the screen. The screen displays in Chinese and English. You can choose to print Chinese and English orders, and you can also print half-package, full-package, total unit price, etc. The stepless speed regulation makes it easy for the measurement operator to get started. Large leather and soft leather can be adjusted to slow down to make the measurement more accurate. Small leather can speed up and improve efficiency. The working format is square meters, square centimeters, square feet, square feet, etc. The equipment is equipped with casters for easy movement and saving installation space.
Correction range: stepless correction
Format selection: square feet/square feet/square meters.
A new generation of leather surface measurement operating system, stable, simple to operate, and easy to use
Printer: A thermal printer is used, the handwriting is clear and there is no breakpoint, and the consumables are cheap and easy to buy.

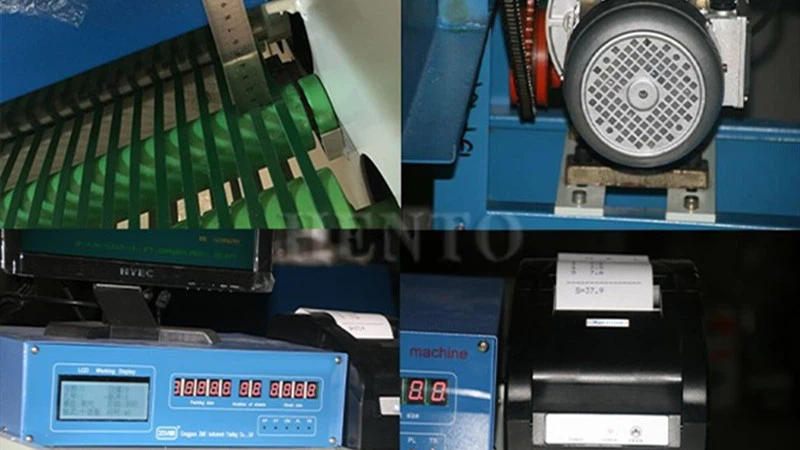

1. The whole Measuring Machine For Leather is formed by bending and stamping steel plates, and the surface treatment adopts the whole machine spraying process, which is more rust-proof.
2. Long-life integrated motor, no noise. Famous and high-quality frequency conversion speed regulation (frequency conversion speed regulation is determined according to customer requirements).
3. 32-bit industrial-grade single-chip microcomputer, industrial-grade LCD display, keyboard, 128/256 electric eye to display the current working status,
4. Photoelectric scanning, light-receiving high-frequency scanning technology, not disturbed by external light, accurate measurement.
5. Fully sealed sensor, using high-precision and long-life devices, can accurately measure various leathers.
6. Data correction\deletion\clearing\printing, automatic coefficient correction, automatic diagnosis system maintenance is intuitive and simple.
|
Model |
HT-LG1800L |
HT-LG1800W |
|
Working width |
1.8m |
1.8m |
|
Working speed |
25m/min |
25/min |
|
Motor Power |
0.75kw |
1.5kw |
|
Measuring accuracy |
average of 10 times at the same standard plate ≤ 1% |
average of 10 times at the same standard plate ≤ 1% |
|
Correction Range |
None Level Correction |
None Level Correction |
|
Printer |
High Speed Printer |
High Speed Printer |
|
Print format |
Chinese / English |
Chinese / English |
|
Format options |
square feet / square meter |
square feet / square meter |
|
Dimension |
2330*900*1130mm |
4000 * 2520 * 880mm |
FAQ
How accurate is a measuring machine for leather?
It is typically very accurate, with most machines providing measurements that are accurate to within a few microns. This level of accuracy is essential for ensuring that each piece of leather meets the required standards of quality.
Is it difficult to use it?
No, it is typically very easy to use. Most machines come with clear instructions and are designed to be user-friendly. Additionally, many manufacturers provide training to help their customers get the most out of their machines.
How long does it take to measure leather with a measuring machine?
The time it takes to measure leather with a measuring machine will depend on the size and complexity of the leather being measured. In general, however, most measurements can be taken in just a few seconds, making this a quick and efficient process.
