Leather Measuring Machine
2.It is widely used in shoe factories, handbag factories, leather factories, and furniture factories.
3.Provides quality control for leather goods.

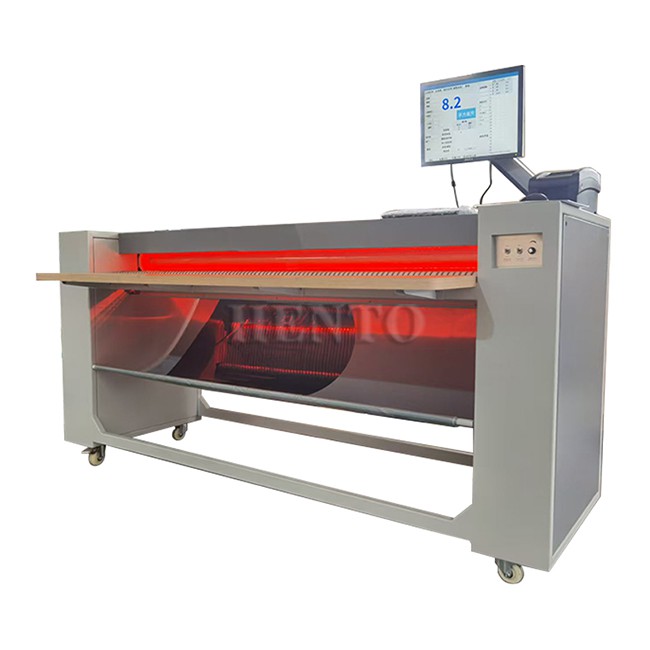

Leather Measuring Machine
This Machine are used in the leather industry to measure and examine various aspects of leather production. They are designed to accurately measure the thickness, length, width, and other properties of leather.
In this article, we will discuss the advantages of using Measuring Machine for Leather, its working principle, and how to operate it.
01
High precision measurement:
By using optical scanning, image processing and other technologies, the leather contour is accurately identified and the area is calculated.
02
Efficient processing:
The measurement speed is fast, far faster than manual measurement (such as traditional grid paper method). Support batch processing, suitable for large-scale production needs such as factories, shoe factories, leather factories, etc.
03
Strong adaptability:
Can handle different materials, such as natural leather, synthetic leather, synthetic leather, etc. Some high-end models have thickness detection function.
04
Consistency:
The measurements taken by the machine are consistent and fair, ensuring that the leather produced has high quality. Reduces the need for manual intervention in production, improves efficiency and consistency.
Technical Parameter
| Model | HT-LG1800L | HT-LG2000L | HT-LG3200L |
| Working width |
1.8m |
2m |
3m |
| Working speed |
1-16m/min |
1-16m/min |
1-16m/min |
| Voltage |
220v/50Hz |
220v/50Hz |
220v/50Hz |
| Measuring accuracy |
error<=0.1 |
error<=0.1 | error<=0.1 |
| Power |
0.36kw |
0.36kw |
0.36kw |
|
Printer |
High Speed Printer |
High Speed Printer |
High Speed Printer |
|
Print format |
Chinese / English |
Chinese / English |
Chinese / English |
|
Dimension |
2200*900*1200mm |
2400*900*1200mm |
3600*900*1200mm |
| Weight |
300kg |
330kg |
500kg |
*In case of the machine upgrade, the appearance and size may be a little different, please take the actual machine as the standard.
Working Principle
It works on the principle of optical measurement. Leather Measuring Machine shines a white light onto the surface of the leather, and the light is then reflected back towards the machine. The reflections are then measured by the machine to determine the thickness and other properties of the leather.
How To Operate Measuring Machine For Leather
01.Connect the machine to a power source and turn it on.
02.Place the leather on the machine's platform.
03.Adjust the machine settings to the desired measurements.
04.Turn on the laser or light source.
05.Use the machine's software to take the desired measurements.
06.Clean the machine regularly to maintain its accuracy.
In conclusion
Leather Measuring Machine are highly beneficial to the leather industry, reducing material waste, saving time, and increasing efficiency and consistency. Understanding the advantages, working principle and how to operate a Measuring Machine for Leather can enable you to invest in this technology and reap its benefits.
FAQ
Q: 1.What's the MOQ?
A: 1 set.
Q: 2. Can the machine be customized?
A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.
Q: 3.What's the payment term?
A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.
Q: 4.How to ship?
A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.
Q: 5.Which port do you send the goods from?
A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.
Q: 6.How long is the warranty of the machine?
A: Two years warranty.
Q: 7.How to buy this machine?
A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice.
Q: 8.What about the package?
A: Usually we will use the standard export wooden case.
Q: 9.Do you need a supplier to provide transportation?
A: If need we ship help you,please leave your details address include zip code.
Q: 10.Are there any requirements for power supply?
A: We can according customer's need to customized 110v/220v/380v/440v etc.
Q: 11.What about Pre-sale service?
A: Support voltage changing service as your demand; Support logo customizing ; Provide good solution for your project ; Testing and debugging before delivery ;
Q: 12.What about After-sales service?
A: Video technical support; Online support ; Field installation, commissioning and training;
