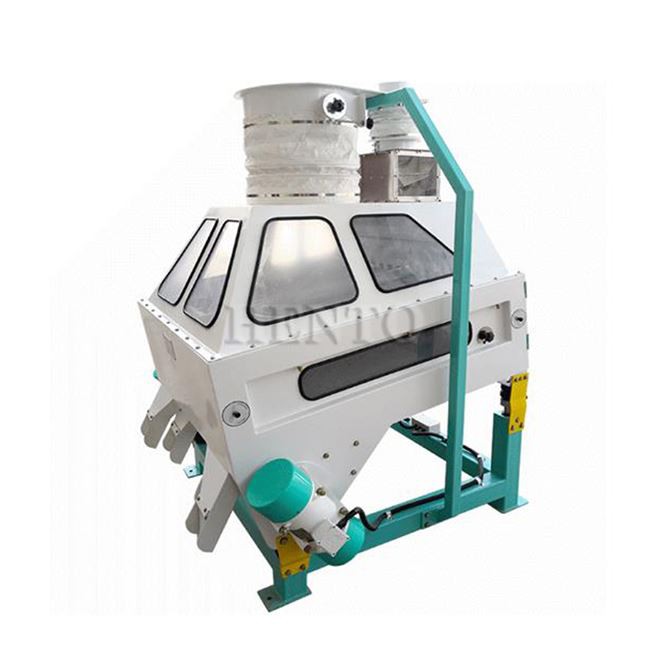

Grain Stone Removing Machine
Product Description
HT-5XZ-series
Grain Stone Removing Machine is mainly used for grading wheat, rice, peanuts, corn, soybean, etc and removing stones, which can also be used for seed selecting. The machine has the characteristics of removing stones and sands according to classification, less energy consumption, no dust, lower noise, which can be operated and maintained conveniently. Use it together with independent ventilation system for better efficacy.
Advantages
The specific gravity stone removal machine has the characteristics of simple structure, small volume, light weight, stable operation, low noise, low energy consumption, good sealing, and convenient operation and maintenance, making it an ideal cleaning and impurity removal equipment. It can assist in removing lightweight impurities and keep the equipment in a negative pressure state without dust leakage. Less energy is consumed during operation, reducing production costs.
There is no dust emission during the work process, reducing environmental pollution. At the same time, the noise is low and the working environment is relatively comfortable.
Machine Features
The specific gravity stone removal machine is mainly used for removing stones from raw materials in industries such as flour, feed, rice milling, chemical, food, and oil extraction. Integrating screening of large impurities, removing stones, grading, and air separation.The Grain Stone Removing Machine is designed to remove stones and other impurities from the harvested grains, making them more suitable for consumption and processing. This machine is easy to use, and it can save farmers a significant amount of time and effort when it comes to cleaning their harvested grains manually. Moreover, the machine is highly efficient and can process a large volume of grains in a short time, which is critical for large-scale farming operations.
The four corners are supported by imported "Austria" rubber springs, with reasonable stable structure.
01
Vibrating motor adopts famous brand "Baofei" motor.
02
Stainless steel screen to remove stones and manganese screen surface to remove impurities are adopted.
03
The lower screen adopts punched reinforcement aluminum mesh to make the screen surface more smooth and the effect of removing is more better.
04
comparison of product parameters
|
Model |
HT-5XZ-180a |
HT-5XZ-200a |
HT-5XZ-250a |
|
|
Screen width(cm) |
180 |
100*2 |
125*2 |
|
|
Weight (kg) |
900 |
1120 |
1250 |
|
|
Wind pressure (Pa) |
1800 |
1800 |
1800 |
|
|
Vibration frequency S-1 |
15.65-1 |
|||
|
Output (t/h) |
Wheat Paddy Corn |
22~28 16~18 15~17 |
25~30 18~22 16~20 |
30~36 22~26 20~24 |
|
Dimension(L*W*H) |
1660*2226*2156 |
1660*2620*2156 |
1660*3120*2156 |
|
|
Power (kw) |
2*0.55kw |
2*0.75kw |
2*0.75kw |
|
|
Air volume (m³/h) |
20000 |
8100*2 |
12000*2 |
|
|
Vibration amplitude |
3~5mm |
|||
|
Screen obliquity |
5~9 degree |
|||
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
Q: What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service?
Q: 12.What about After-sales service?
Hot Tags: grain stone removing machine, China grain stone removing machine manufacturers, suppliers, factory, Dumpling Wrapper Making Machine, Electric Rice Washing Machine, Corn Puffs Snack Making Machines, Instant Noodle Production Line, Electric Siomai Encrusting Machine, Sesame Washing Machine
Previous

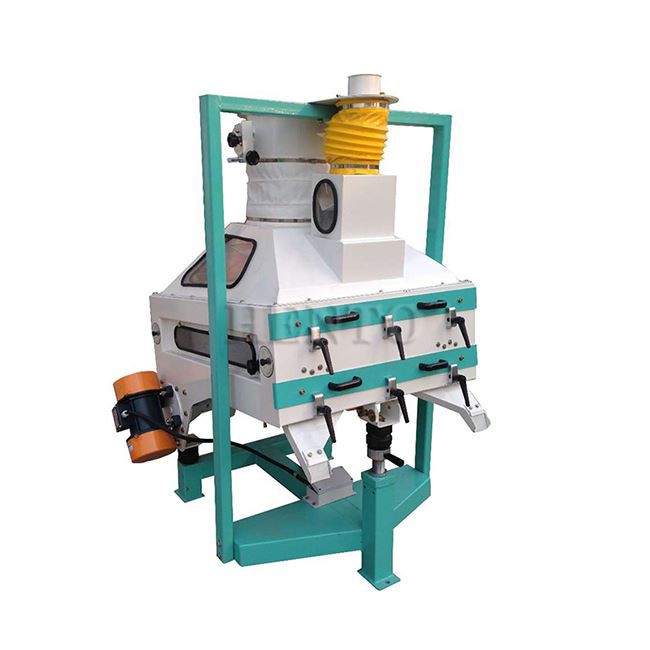

Paddy Destoner MachineYou Might Also Like
