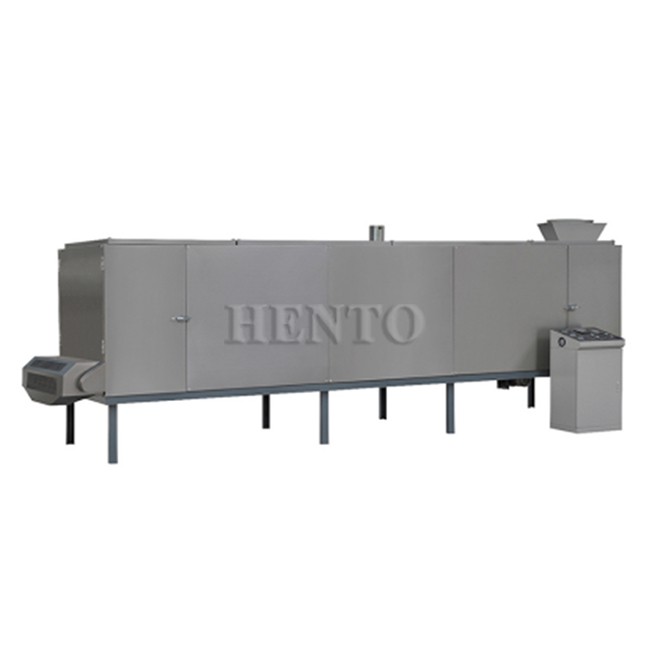

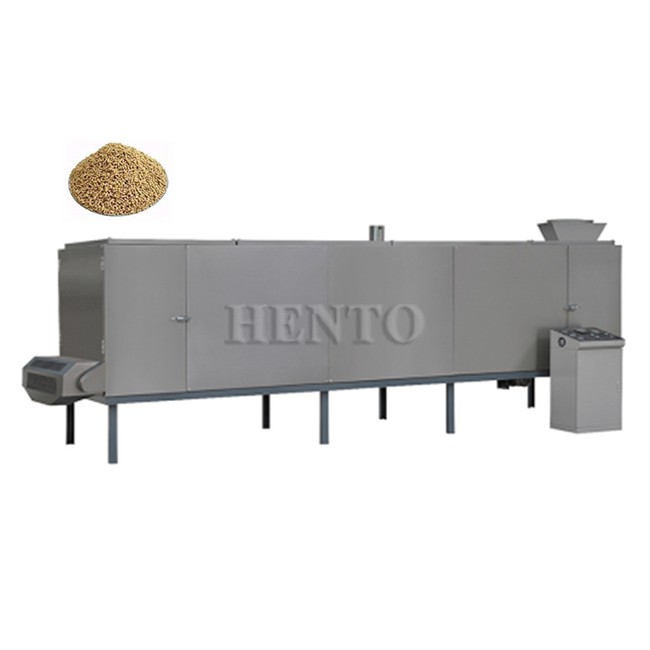

Conveyor Mesh Belt Dryer Machine
product description
Conveyor Mesh Belt Dryer Machine is for batch production, which is used for drying flaky, strip and granular materials with good air permeability. It is especially suitable for dehydrated vegetables, catalysts, and other materials with high water content and high material temperature; This series of dryers have the advantages of fast drying speed, high evaporation intensity and good product quality. For the paste materials of dehydrated filter cake, they can only be dried after granulating or making into strips.
Conveyor Mesh Belt Dryer Machine has the advantages of high drying rate, high evaporation intensity and good product quality. Belt dryer is widely used in industry, mainly for drying small pieces of materials and fibrous materials. In a word, the materials dried by the belt dryer must have a certain shape, and still keep a certain shape, and still keep a certain shape after drying.
product parameters
| Products name | System integration/Automatic Production Line |
|
Model |
HT-HGJ500 |
|
Capacity |
200-260kg/h |
|
Power |
45kw |
|
Voltage |
380v |
|
Dimension |
5100*1200*1800mm |
|
Weight |
1000kg |
Advantages
According to different customers' requirement, we supply different types microwave ovens for your choice.
1.The Conveyor Mesh Belt Dryer Machine is multi functional. It can dry, sterilize and heat.
2.PLC computer control system control the humidity, temperature, and time of drying high accurately, easy to operate.
3.It has features of nice seal, high efficiency, fully automatic, low energy consumption and so on.
4.The belt is with clean materials which can match different foods requirement.
5.The belt speed can be controlled by inverter.
6.The series of microwave oven is widely used in industry, agriculture, chemical, medicine, wood and so on.
Working principal
The material is evenly spread on the mesh belt by the feeder, and the mesh belt adopts 12-60 mesh stainless steel mesh. Driven by the transmission device, it moves in the dryer. The dryer is composed of several units. Each unit has an independent hot air circulation. Part of the tail gas is discharged by a special dehumidification fan. The waste gas is controlled by a regulating valve. The hot gas passes through the materials laid on the mesh belt from bottom to top or from top to bottom, and is heated and dried to take away the moisture. The net belt moves slowly, the running speed can be adjusted freely according to the material temperature, and the dried product falls into the collector continuously. The upper and lower circulation units can be flexibly equipped according to the needs of users, and the number of units can be selected according to the customers' needs.
FAQ
Q: What's the MOQ?
Q: Can the machine be customized?
Q: What's the payment term?
Q: How to ship?
Q: Which port do you send the goods from?
Q: How long is the warranty of the machine?
Q: How to buy this machine?
Q: What about the package?
Q: Do you need a supplier to provide transportation?
Q: Are there any requirements for power supply?
Q: What about Pre-sale service:
