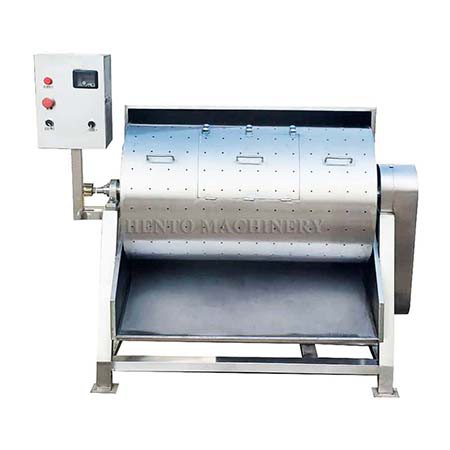

Chicken Intestine Washing Machine
video

Chicken Intestine Washing Machine

The chicken intestine washing machine is used to clean sliced chicken intestines, duck intestines, etc. It has a large production capacity and is made of stainless steel. Can be used in conjunction with chicken intestine dissector.
Send Inquiry
Product Introduction

duck intestine washing machine

Product Introduction



HT-QX600 series chicken intestine washing machine is an indispensable equipment for processing chicken intestines and duck intestines after cutting. This machine can clean chicken intestines or duck intestines as a whole. And high output, beautiful appearance, excellent workmanship, convenient operation, safe and reliable use. The frame and the whole machine are made of high quality stainless steel. Meet food safety requirements.

Structure of chicken intestine washing machine



The main structure of the machine is composed of cleaning drum, bracket, transmission device, cleaning device, electrical appliances, etc.



Cleaning drum

circular cleaning drum, smooth running , and the use of perforated design, internal with a number of groups of massage head, smooth and durable, not damaged materials. The whole mach in e is made of high quality stainless steel. And the design of a button -type buckle cover, large -size outlet for discharging material.





Support and protective cover

high -strength stainless steel frame to ensure smooth operation, and design a semicircle waterproof cover, effective waterproof. High safety performance.



Mechanical and electrical parts

the use of planetary cycloid reducer, high transmission efficiency, rugged and durable, easy to maintain.

Bearing block: this machine uses large size bearing block, to ensure the maximum stability of the operation of equipment, easy maintenance.



Transmission System and electrical appliances

Lorem ipsum dolor sit amet consectetur, adipisicing elit. Recusandae quaerat modi iusto rem esse obcaecati quidem voluptatum maxime veniam maiores asperiores fugit reiciendis, quasi labore nobis quam eligendi ducimus excepturi?





Transmission System and electrical appliances

This machine adopts the stepless speed regulating device, which can adjust the speed according to different production conditions. The motors are all national standard copper coils (different types of motors can be customized according to different national voltage requirements) , high degree of unity, not easy to damage . The electrical appliance adopts the external independent distribution box . Nice appearance and good waterproof.



Cleaning device

the use of universal adjustment of rotating joints to ensure the operation of the equipment water supply. It is not only beautiful but also convenient to adjust. It can adjust the water quantity according to the work demand at any time.

Working Principle of chicken intestine washing machine



This machine is designed according to the principle of bionics, a special cleaning chicken and duck intestines equipment, the main principle is to imitate the function of manual massage to clean the intestinal mucosa after cutting . At the same time , the rotating centrifugal force of the drum can throw out the waste water at any time after cleaning, thus achieving the cleaning effect.

chicken intestine washing machine




comparison of product parameters

Model

HT-QX600

Dimension

1500*770*1160mm

Voltage

220v/380v 50Hz

Power

1.5kw

Barrel size

600*1000mm

Capacity

50-100kg/batch

Running Speed

Frequency Control

Main Material

Stainless Steel

Operator

1

Material requirements

Fresh sliced chicken or duck intestines, or other intestinal products, etc.

Other additives

Moderate coarse salt

equipped with a cleaning device

Yes

Weight

190kg

Get a Quote Now



FAQ

Q: 1.What's the MOQ?

A: 1 set

Q: 2.Can the machine be customized?

A: As a professional manufacturer, we can customize the machine according to your requirements, like capacity, material, color, voltage, logo, etc.

Q: What's the payment term?

A: We accept the T/T, Western union or Alibaba Trade Assurance Payment, etc.

Q: 4.How to ship?

A: We have some long cooperation freight forwarder, they can help us ship the machine all over the world. Including sea, air, express, train, sea to the door is no problem.

Q: 5.Which port do you send the goods from?

A: Any Ports in China, such as Shanghai, Qingdao, Guangzhou and so on.

Q: 6.How long is the warranty of the machine?

A: Two years warranty.

Q: 7.How to buy this machine?

A: You could send us your company name and address ,then we draft proforma invoice ,you could pay to us via proforma invoice .

Q: 8.What about the package?

A: Usually we will use the standard export wooden case.

Q: 9.Do you need a supplier to provide transportation?

A: If need we ship help you,please leave your details address include zip code.

Q: 10.Are there any requirements for power supply?

A: We can according customer's need to customized 110v/220v/380v/440v etc.

Q: 11.What about Pre-sale service?

A: Support voltage changing service as your demand;  Support logo customizing ;  Provide good solution for your project ;  Testing and debugging before delivery ;

Q: 12.What about After-sales service?

A: Video technical support;  Online support ;  Field installation, commissioning and training;
