Cashew Nut Peeling Processing Line
Product Description of Cashew Nut Peeling Processing Line:
For Cashew Nut Peeling Processing Line,after grading cashew nuts for shelling, cashew nuts shelling rate, the rate of whole kernel can reach 95%. The equipment through the hopper on the distribution device to the material divided into various guided grooves, driven by the motor on the chain attached to the plate propulsion to make it to the direction of the knife body, to achieve cutting.
Cashew nut peeling machine, consists of electrical components, digital control panel, feeding hopper, peeling cylinder, discharging pedal and so on. The equipment adopts advanced pneumatic principle, the fried or dried cashew nut skin off, after peeling the cashew nut surface smooth without damage, no pollution, high rate of peeling, because the cashew nut does not see water, the storage time is longer. The cashew peeling machine has the advantages of small size, light weight, easy to move back and forth, simple operation, low energy consumption. The cashew peeling machine's feeding quantity, peeling quantity and discharging quantity are composed of numerical control table.
features of Cashew Nut Peeling Processing Line
The Cashew Nut Peeling Processing Line Comes With Numerous Advantages, Including:
High efficiency
1. Save labor: Compared with manual cashew nuts shelling, it saves labor and has higher efficiency, for example, 6 knives equipment can handle about 150kg materials per hour.Convenient and simple adjustment: the equipment can be used for different sizes of materials
Reduced labor costs
High rate of whole kernel: After grading cashew nuts for shelling, cashew nuts shelling rate, the rate of whole kernel can reach 95%.Due to the distribution of materials in the guiding groove, so that each material needs to go through the cutter cutting
Improved quality of the cashew nuts
High shelling efficiency: the equipment is driven by the motor drive chain, by driving the chain attached to the plate, so that the material to the direction of the knife body, more stable performance, can be customized according to the different production requirements of the 6 8 10 knives of the equipment.
Minimized wastage
Simple maintenance: the equipment is simple and compact, safe and reliable, easy to operate and maintain.According to the size of the cashew material, through the screw to easily adjust the distance between the upper and lower clamping knife body, improve the shelling efficiency, reduce the rate of broken kernels.
product parameters of Cashew Nut Peeling Processing Line
|
Name of raw |
material equipment: Raw material classification Output: 800kg/H Voltage: 380V Power:2.25kW Frequency: 50Hz Overall size:5000*1350*1800m Weight: 1800kg Material: carbon steel There are five levels |
|
||
|
1set |
||||
|
Name of raw |
material equipment: Raw material cooking machine Voltage: 380VFrequency: 50Hz Power: 0.75KW Output: 400kg/ time Size: 1100 *1000*3550mm Weight: 1200 kg Material: carbon steel |
1set |
|
|
|
Shell opening |
equipment Name: shell opening unit Voltage: 380V / 220V Frequency: 50Hz Motor 16KW control mode: stepless frequency conversion Production: 500-600 kg/h Size: 4200*1800 *2900 mm Machine weight: 3000kg (contact food part is made of stainless steel) |
1set |
|
|
|
nut |
Name of equipment: nut drying box Voltage: 380V Frequency: 50Hz Motor 3KW output: 900-1000kg/ time Size: 5250 *2200*2300mm Machine weight: 2800kg Material: galvanized sheet material (Steam heating) |
1set |
|
|
|
Humidifier Purchased |
device Name: humidifier Size: 800*800*700mm |
3set |
|
|
|
peeling |
Machine name: Automatic kernel peeling machine Production: 200 kg/h Size: 5250 *1600*2300mm Voltage: 380V Frequency: 50Hz Power: 3.55KW Weight: 800kg (Hopper, elevator, kernels peeling machine, peeling machine, kernels screening machine) Air compressor: 37KW screw air compressor (including air storage tank and condenser) |
1set 1set |
|
|
|

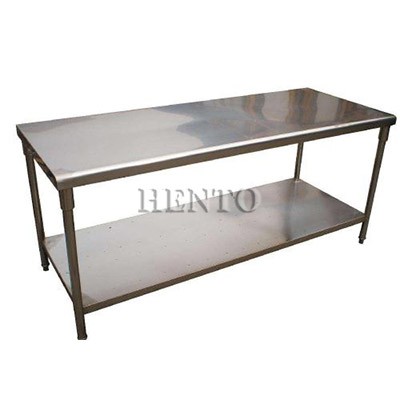

Name of equipment: Kernel picking station Size: 2000 *1000*800mm Weight: 120 kg |
3set |
|
||
|
Nut machine |
Name of nut equipment: nut grader Production: 150-200 kg/h Size: 2500 *1200*1600mm Voltage: 380V Frequency: 50Hz Power: 0.75KW Weight :550kg Material: Contact nut is stainless steel |
1set |
|
|
|
Product name: Vacuum packer |
1set |
|
||
FAQ
Q: 1.What's the MOQ?
Q: 2.Can the machine be customized?
Q: What's the payment term?
Q: 4.How to ship?
Q: 5.Which port do you send the goods from?
Q: 6.How long is the warranty of the machine?
Q: 7.How to buy this machine?
Q: 8.What about the package?
Q: 9.Do you need a supplier to provide transportation?
Q: 10.Are there any requirements for power supply?
Q: 11.What about Pre-sale service?
Q: 12.What about After-sales service?
