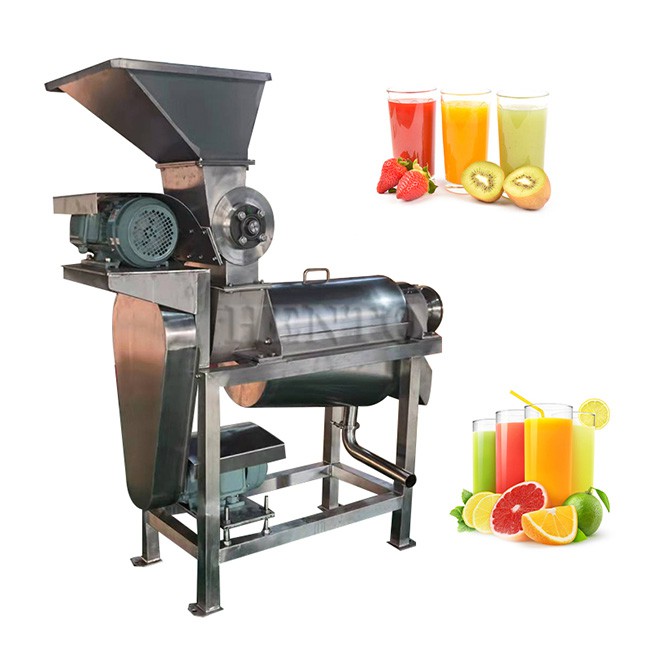

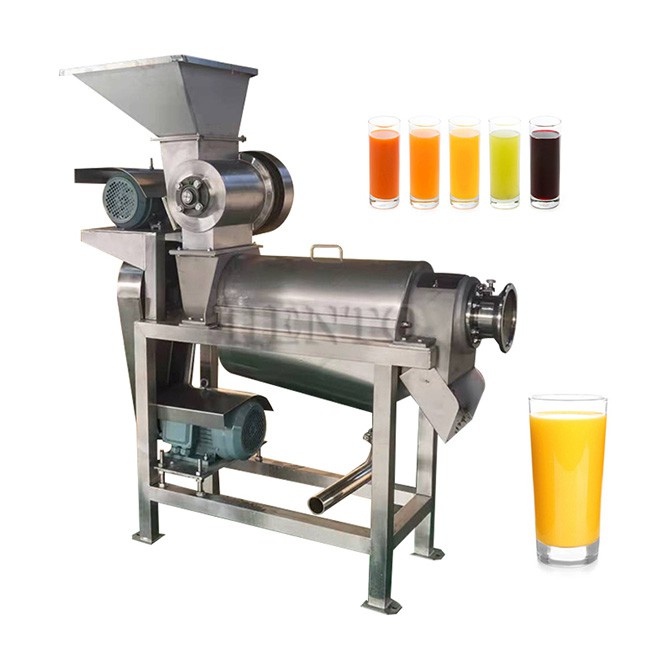

Apple Juice Crusher

The main component of the equipment is the spiral, the spiral along the slag outlet direction of the bottom diameter gradually increased and the pitch gradually reduced, when the material is pushed by the spiral, due to the reduction of the volume of the spiral cavity, the formation of the press of the material. The direction of rotation of the spiral main shaft is seen from the direction of the feed hopper to the slag groove, which is the direction of the needle. The raw material is added to the hopper, under the pressure of the screw, the squeezed juice flows through the filter into the juice holder at the bottom, and the waste is discharged through the gap formed between the spiral and the conical part of the regulator head,

the regulator head can adjust the size of the gap along the axial movement. When the handwheel bearing seat is transferred clockwise by hand (from the slag discharge groove of the equipment to the hopper), the regulator head is left, and the gap is reduced, and the gap is larger. Change the size of the gap, that is, adjust the slag resistance, you can change the juice rate, but if the gap is too small, under the strong extrusion, part of the slag particles will be squeezed out with the juice through the filter, although the juice increases, but the quality of the juice is relatively decreased, the size of the gap should be based on the user's specific process requirements.
